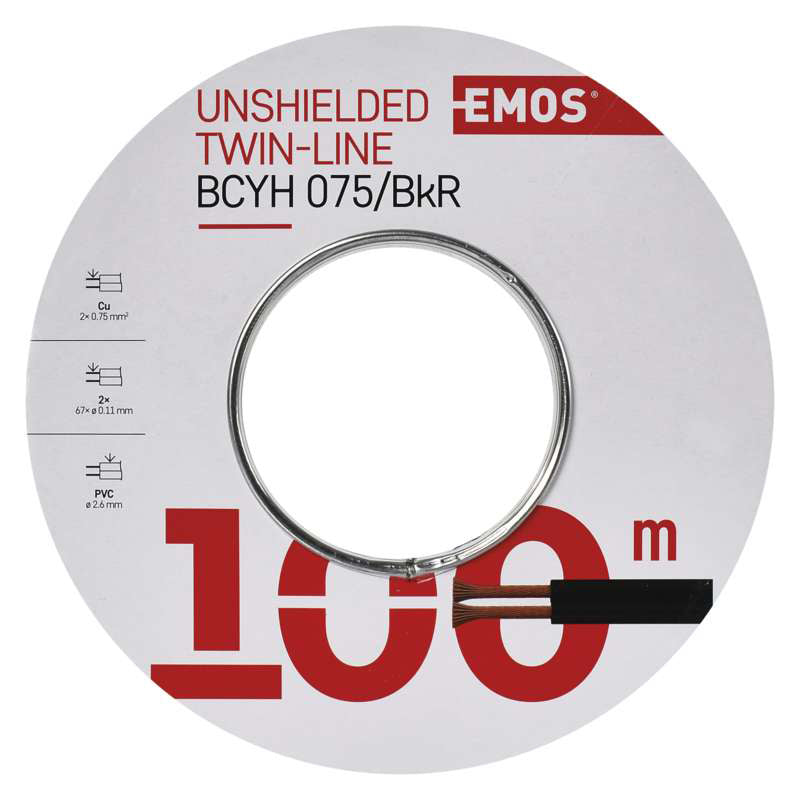

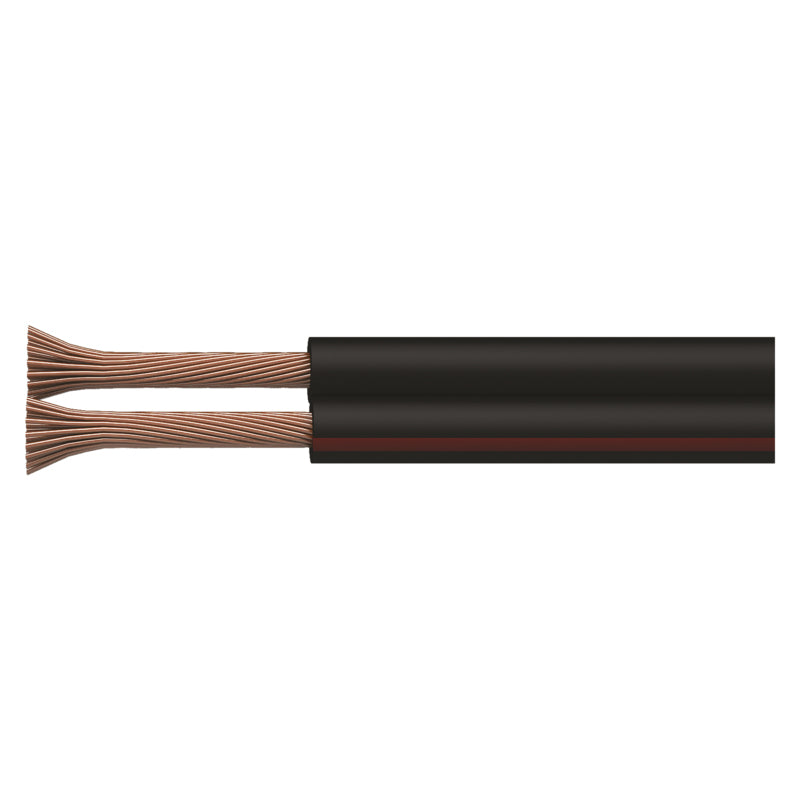

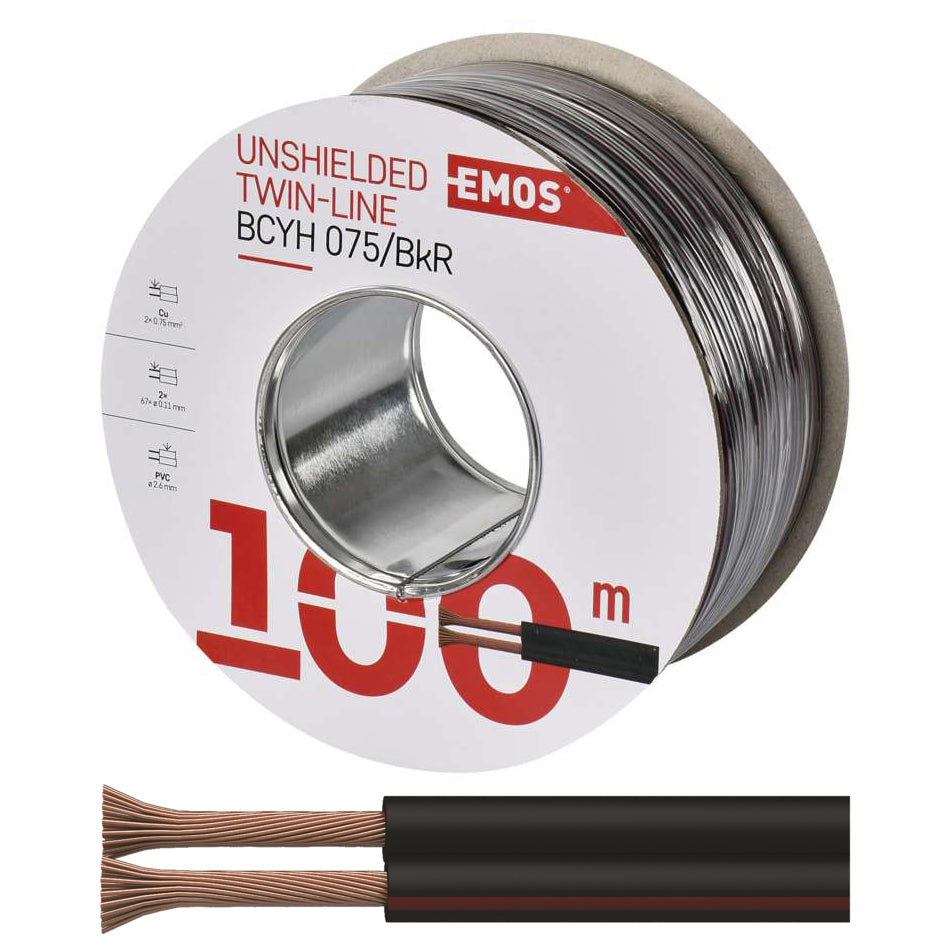

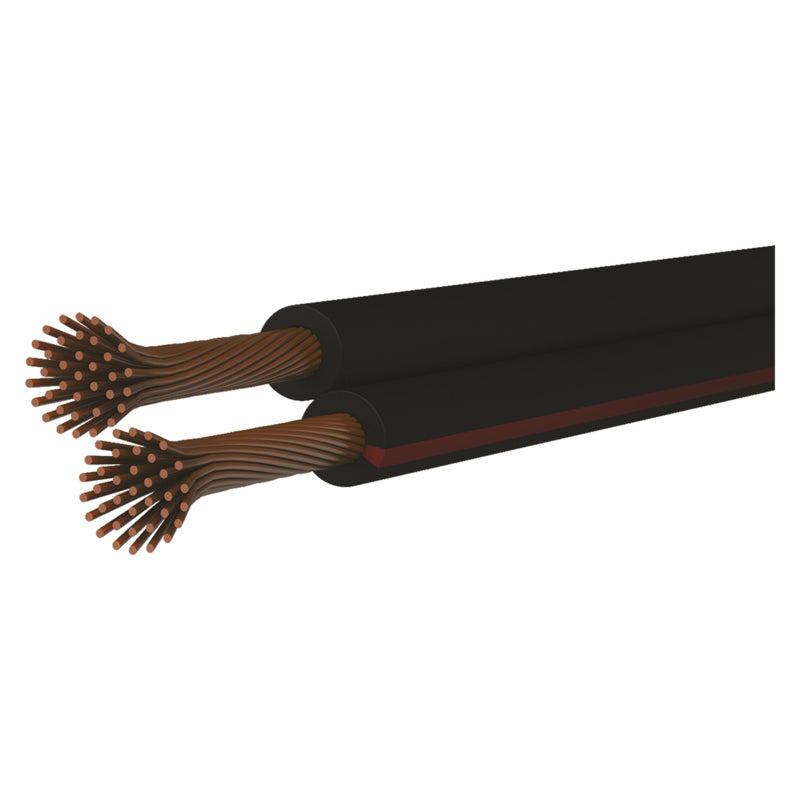

Shielded Cable unshielded 2x0.75mm2 black/red EMOS S8270 100m
Unshielded twin cable - cross-section 2 × 0.75 mm2, stranded copper conductor 67 × 0.12 mm, PVC sheath, black/red colour (one conductor marked with a red stripe), outer insulation 2 × 2.6 mm, max. operating voltage 50V, without shielding, low voltage transmission, type designation BCYH075BkR, 100 m pack
In stock 3 pcs
Expected shipping:
22.09.2026
Regular price
€66,78
Unit price
/
Unavailable
EMOS | SKU:
03630052
Product description
Unshielded double line (conductor) with a cross-section of 2 × 0.75 mm2. The double line has a black insulation color with one wire marked with a red stripe. The cable sheath is made of PVC.
Technical parameters:
- conductor cross-section: 0.75 mm2
- intended use: low voltage transmission
- coat color: black, black-red
- diameter of the inner conductor: 67× 0.12 mm
- shielding: no
- external insulation: 2× 2.6 mm
- color of insulation of internal wires: none
- double insulation: no
- casing material: PVC
- inner conductor material: copper (Cu)
- shield conductor material: none
- maximum operating voltage: 50 V
- number of shield wires: none
- cross-section of shield wires: none
- type designation: BCYH075BkR
In a package of 100m.
