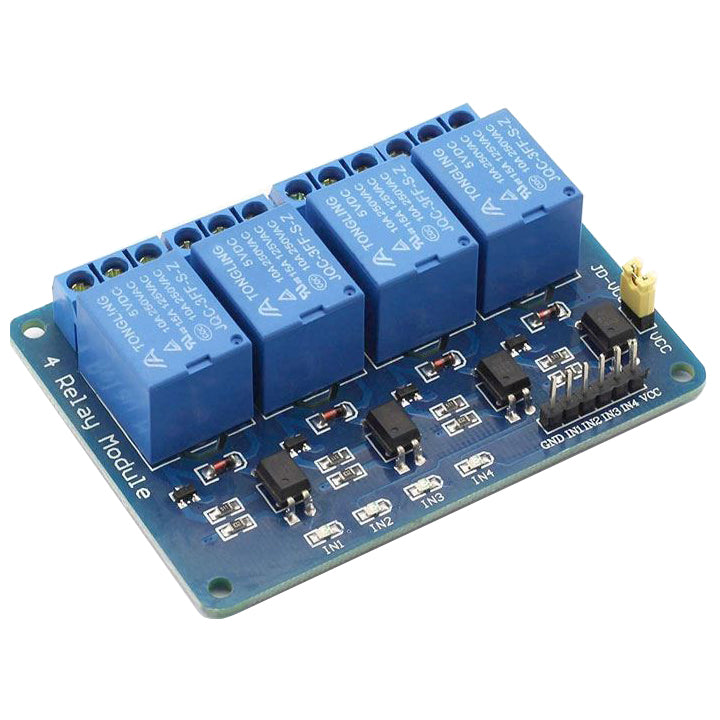

Relay module 4x, power supply 5V, with optocoupler
Modul relé 4kanálový - napájecí napětí 5V, galvanická izolace optočlenem, spouštění signálem Log 0 při 10mA, přepínací kontakty 250VAC/10A a DC30V/10A, proud na kanál 50–60mA, rozměry 70 × 53 mm, kompatibilní s Arduino, AVR, PIC, ARM, DSP, MSP430 a TTL logikou, vyžaduje odbornou montáž
In stock more than 5 pcs
Expected shipping:
02.09.2026
Regular price
€2,83
Unit price
/
Unavailable
TIPA | SKU:
09830062
Relay module 4x, power supply 5V, with optocoupler
Regular price
€2,83
Unit price
/
Unavailable
Product description
Optocoupler insulated relay module with 5V supply voltage and triggered by Log 0 (10mA) signal.
Can be controlled directly with microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic)
Technical parameters:
- switching contacts 250VAC / 10A, DC30V 10A
- each channel needs 50-60mA current.
- dimensions: 7 × 5.3 cm
The product is not a self-functional unit, it requires professional assembly.
Can be controlled directly with microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic)
Technical parameters:
- switching contacts 250VAC / 10A, DC30V 10A
- each channel needs 50-60mA current.
- dimensions: 7 × 5.3 cm
The product is not a self-functional unit, it requires professional assembly.
