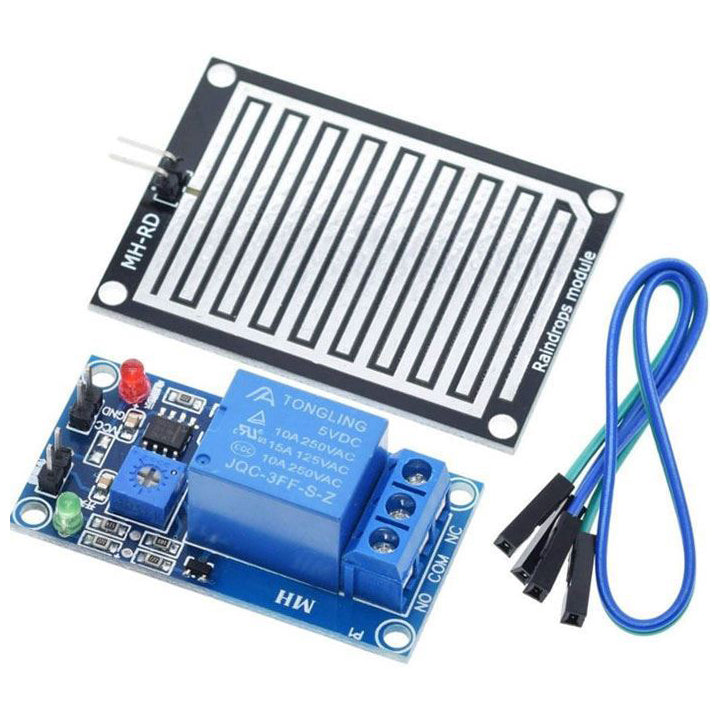

Rain sensor including probe, module with relay, 5V power supply
Sale
19% off
Rain sensor with relay - LM393 comparator, power supply 5V DC, 5V relay output with 250VAC/10A contacts, adjustable switching sensitivity, LED indication of power and active output, PCB size 50 × 26 mm, probe 54 × 39 mm, conductor length 20 cm, two-state rain detection mode, requires professional installation
In stock 23 pcs
Expected shipping:
29.09.2026
Sale price
€2,24
Regular price
€2,76
Unit price
/
Unavailable
TIPA | SKU:
09830098
Product description
Rain sensor with output to relay contacts. Two-state mode with adjustable switching sensitivity.
Technical parameters:
- used comparator: LM393
- power supply: 5 V DC
- output: relay 5V, contacts 250VAC / 10A
- LEDs to indicate power and active output

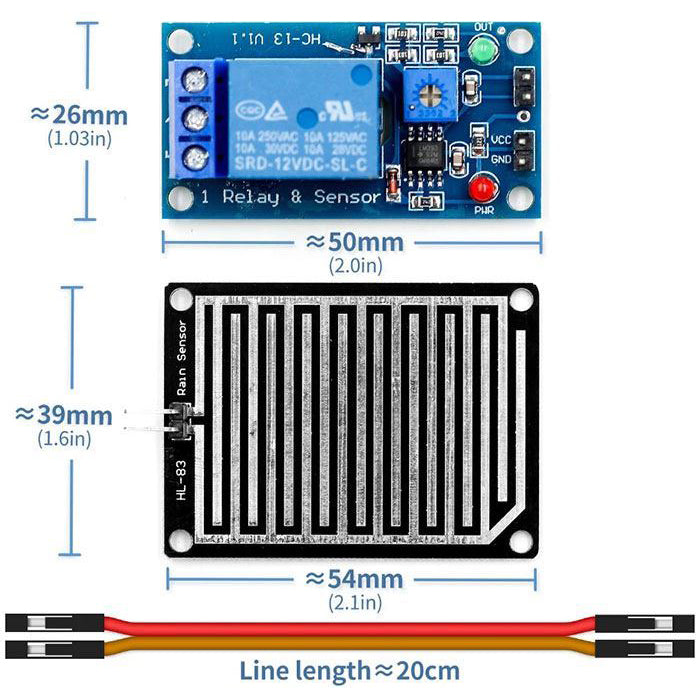

- PCB size: 50 × 26 mm
- probe: 54 × 39 mm
- guide: 20 cm
During continuous measurement, the service life of the probe is greatly shortened, since the electrolytic reaction takes place here. For optimal probe and battery life, program periodic measurements with immediate result evaluation.
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- used comparator: LM393
- power supply: 5 V DC
- output: relay 5V, contacts 250VAC / 10A
- LEDs to indicate power and active output
- PCB size: 50 × 26 mm
- probe: 54 × 39 mm
- guide: 20 cm
During continuous measurement, the service life of the probe is greatly shortened, since the electrolytic reaction takes place here. For optimal probe and battery life, program periodic measurements with immediate result evaluation.
The product is not a stand-alone unit, it requires professional installation.
