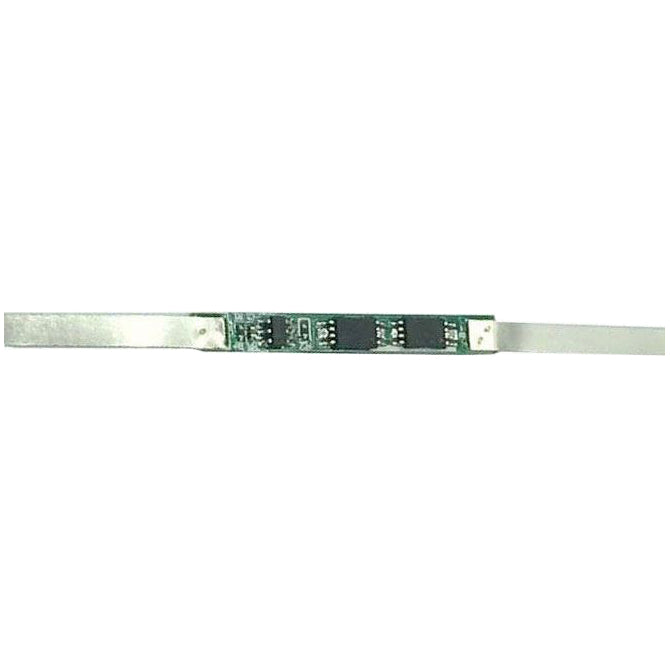

Protective circuit for 1 Li-Ion cell 18650, current up to 3A, strip terminals
BMS protection module for Li-Ion / LiFePO - 1 18650 cell, max. charging current 3A, short-circuit protection, overload (max. 3A), overcharging (<4.275V) and over-discharge (>2.5V), internal resistance <40m?, dimensions 32 × 4 mm + strip leads, charging voltage supplied to the PCB pads, requires professional installation
Will be restocked
Expected shipping:
28.09.2026
at our place
Regular price
€0,53
Unit price
/
Unavailable
TIPA | SKU:
09830115
Product description
Protection and charging module for Li-Ion or LiFePO cell. The cell is connected to strip terminals, charging voltage to the printed circuit boards.
Technical parameters:
- short circuit protection
- overload protection (max.3A)
- overcharge protection <4.275 V
- protection against excessive discharge> 2.5 V
- max. charging current: 3 A
- internal resistance <40mohm
- dimensions: 32 × 4mm + strip terminals
The product is not a self-functional unit, it requires professional assembly.
Technical parameters:
- short circuit protection
- overload protection (max.3A)
- overcharge protection <4.275 V
- protection against excessive discharge> 2.5 V
- max. charging current: 3 A
- internal resistance <40mohm
- dimensions: 32 × 4mm + strip terminals
The product is not a self-functional unit, it requires professional assembly.
