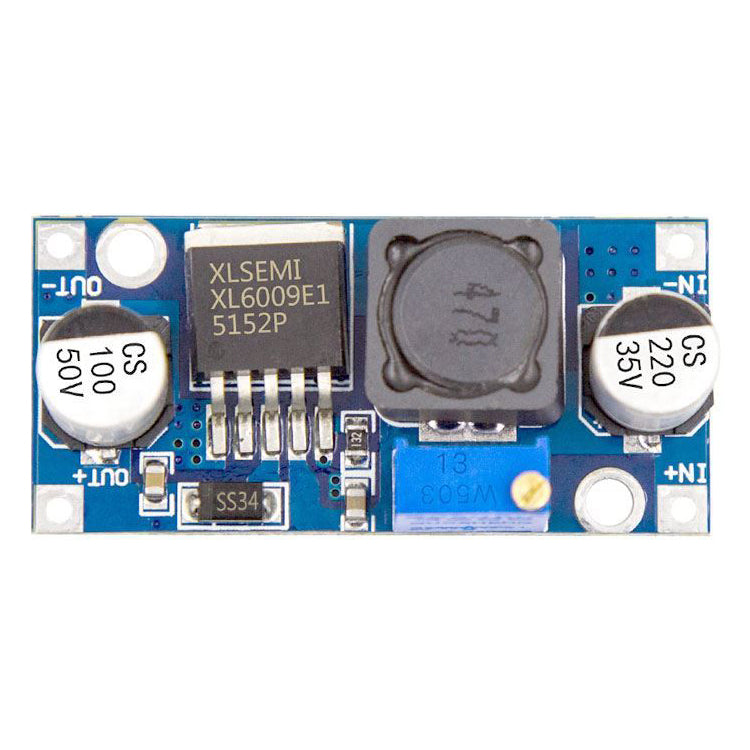

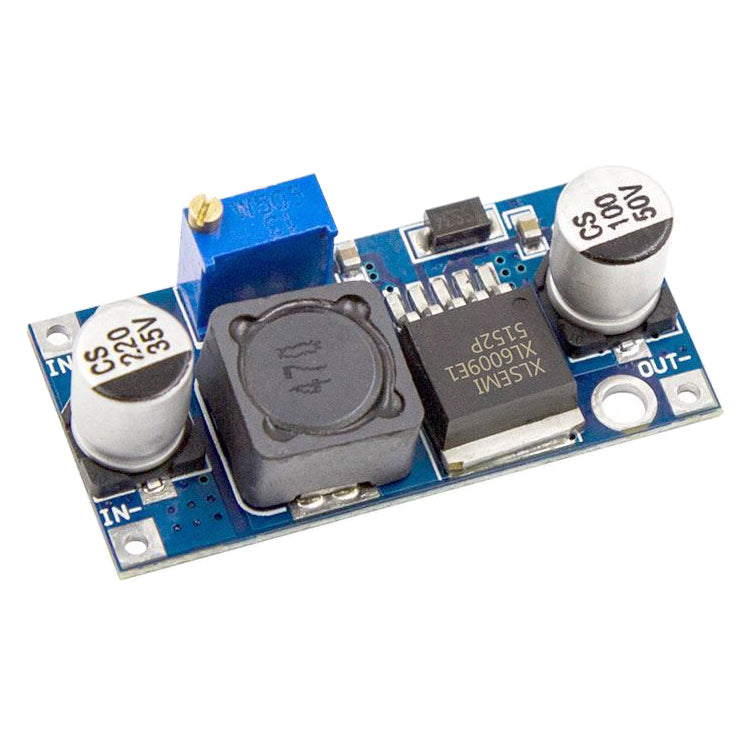

Power supply module, step-up converter 4A with XL6009
Step-up DC-DC converter - XL6009 chip, input voltage 3–30V, output voltage 5–35V adjustable, output current 2A (peak 4A with heatsink), efficiency 92%, non-isolated switching converter, dimensions 49 × 23.5 × 12.5 mm, weight 4 g, output setting by trimmer, suitable for powering electronic devices with higher consumption, requires professional installation
Will be restocked
Expected shipping:
10.10.2026
at our place
Regular price
€1,83
Unit price
/
Unavailable
TIPA | SKU:
09830165
Product description
Non-isolated pulse converter DC-DC 4.5–35V / 3–33V adjustable with IC XL6009
Technical parameters:
- input voltage 3-30V
- output voltage 5-35V adjustable
- output current 2A (peak 4A with heatsink)
- efficiency 92%
- dimensions 49 × 23.5 × 12.5mm / 4g
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- input voltage 3-30V
- output voltage 5-35V adjustable
- output current 2A (peak 4A with heatsink)
- efficiency 92%
- dimensions 49 × 23.5 × 12.5mm / 4g
The product is not a stand-alone unit, it requires professional installation.
