Parking camera BLOW BVS-542
Parking reversing camera - 1/3.6" CMOS sensor, resolution 648 × 488 px, horizontal viewing angle 120°, vertical angle 90°, diagonal angle 170°, minimum illumination 0.01 lux, IR night vision, PAL signal, horizontal definition 480 TV lines, S/N ratio <48dB, lens F=1.9 mm / F2.0, automatic gain control and backlight setting, suitable for passenger cars
In stock 9 pcs
Expected shipping:
25.09.2026
Regular price
€12,15
Unit price
/
Unavailable
BLOW | SKU:
08810509
Product description

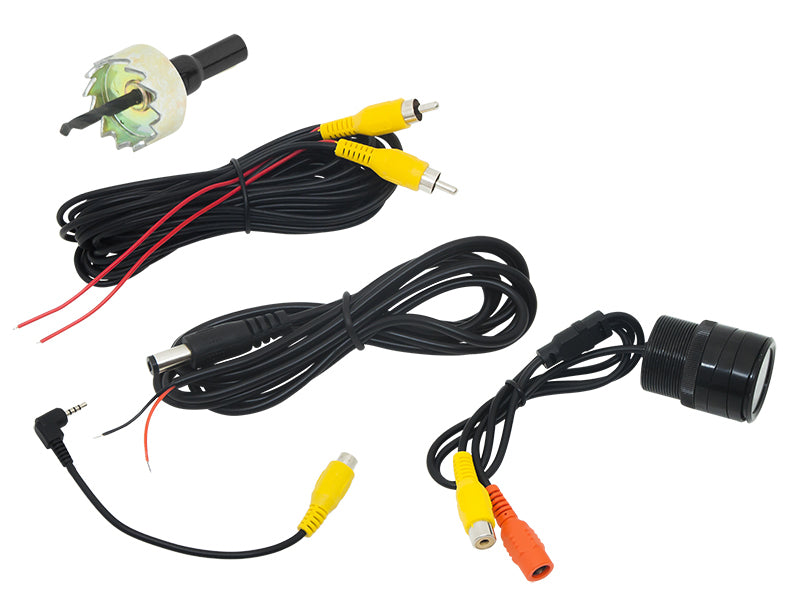

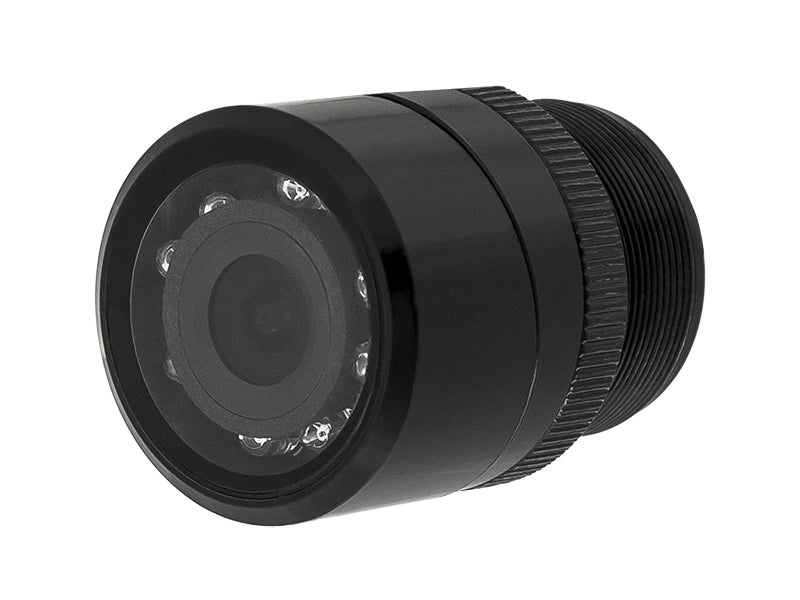

The BLOW BVS-542 reversing camera is suitable for motor vehicles. Checks the space behind the vehicle while driving back. The device helps reverse, but does not deprive the driver of the special attention required when reversing. The reversing camera is suitable for installation in passenger cars and light commercial vehicles. The package is not a monitor.
Properties:
- Image sensor: 1 / 3.6 "CMOS
- Resolution: 648 x 488
- Measuring area: 4.9 x 3.7
- Lens: F = 1.9 mm / F = 2.0
- Signal system: PAL
- Horizontal synchronization (kHz): 15625/15734
- V-Sync (Hz): 50/60
- Automatic gain control and backlight adjustment
- Horizontal definition: 480 TV channels
- Signal / Noise: <48.0 [dB]
- Viewer angle of the image sensor: 170 °
- Horizontal viewing angle: 120 °
- Vertical Viewing Angle: 90 °
- Diagonal viewing angle: 165 °
- Degree of protection: IP67
- Voltage range: DC 9-15V

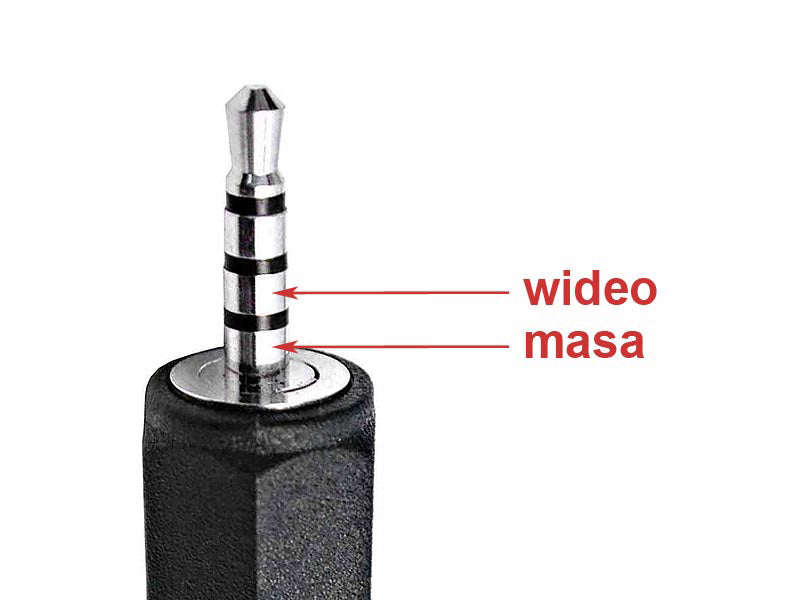

- Video output: 1.0Vp-p / 75?
- Operating temperature: -20 ~ + 70 ° C RH 95% Max.
- Storage temperature: -30 ~ + 80 ° C RH 95% Max.
Properties:
- Image sensor: 1 / 3.6 "CMOS
- Resolution: 648 x 488
- Measuring area: 4.9 x 3.7
- Lens: F = 1.9 mm / F = 2.0
- Signal system: PAL
- Horizontal synchronization (kHz): 15625/15734
- V-Sync (Hz): 50/60
- Automatic gain control and backlight adjustment
- Horizontal definition: 480 TV channels
- Signal / Noise: <48.0 [dB]
- Viewer angle of the image sensor: 170 °
- Horizontal viewing angle: 120 °
- Vertical Viewing Angle: 90 °
- Diagonal viewing angle: 165 °
- Degree of protection: IP67
- Voltage range: DC 9-15V
- Video output: 1.0Vp-p / 75?
- Operating temperature: -20 ~ + 70 ° C RH 95% Max.
- Storage temperature: -30 ~ + 80 ° C RH 95% Max.
