Parking camera BLOW BVS-541
Parking reversing camera - 1/3.6" CMOS sensor, resolution 648 × 488 px, horizontal viewing angle 120°, diagonal angle 165°, minimum illumination 0.01 lux, IR night vision, PAL signal, horizontal definition 480 TV lines, S/N ratio <48dB, lens F=1.9 mm / F2.0, IP67 rating, automatic backlight setting, suitable for cars and light commercial vehicles
Last piece
Expected shipping:
29.09.2026
Regular price
€13,62
Unit price
/
Unavailable
BLOW | SKU:
08810343
Product description

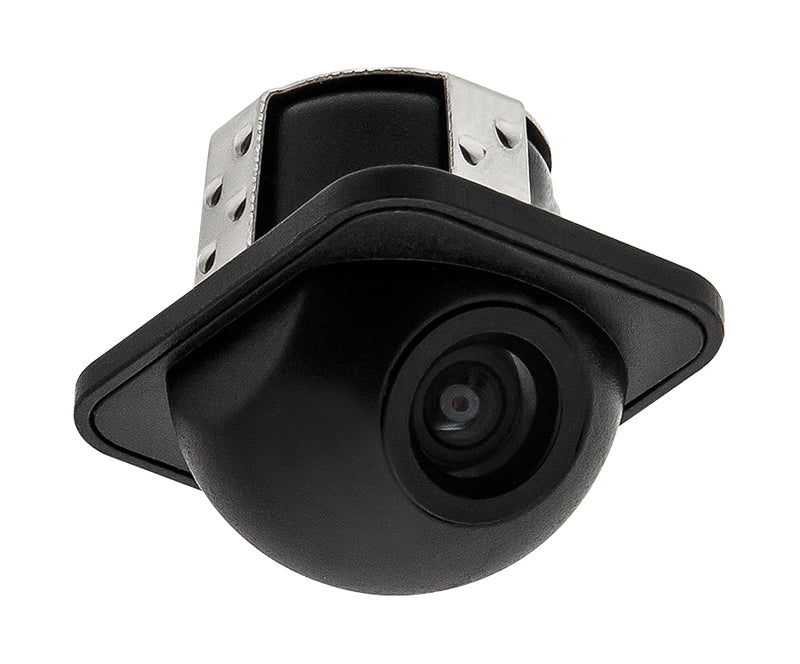

Reversing camera BLOW BVS-541 is suitable for motor vehicles. Checks behind the vehicle when reversing car. The instrument helps when reversing, but it does not dispense with special attention required when reversing. The reversing camera is suitable for installation in passenger cars and light commercial vehicles.
Features:
- Image sensor: 1 / 3.6 "CMOS
- Video Resolution: 648 x 488 px
- Measuring range: 4.9 x 3.7
- Lens F = 1.9 mm / F = 2.0
- Signal system: PAL
- Sync: 15625/15734 kHz
- Sync: 50/60 Hz
- Backlight settings
- Horizontal definition: 480 TV lines
- Minimum illumination: 0 lux 0.01
- Signal / noise ratio: <48.0 db
- Viewing angle of the image sensor 170°
- Horizontal viewing angle: 120°
- Vertical viewing angle: 90°
- Diagonal angle of view: 165°
- Protection: IP67
- Voltage range: 9 ~ 16V DC

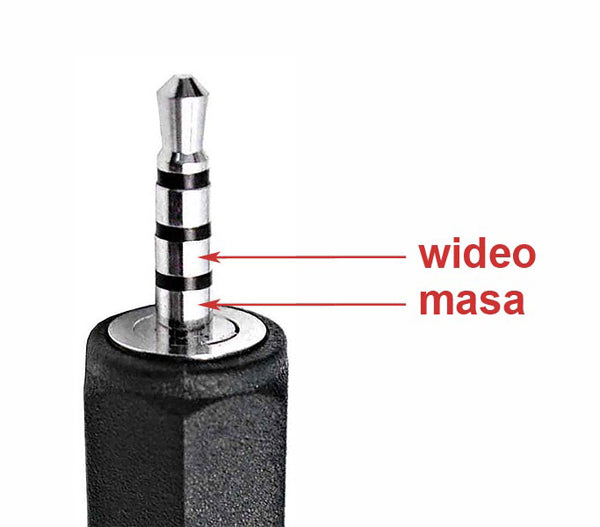

- Video output: 1.0Vp-p / 75?
- Operating temperature: -20 ~ + 70 °C, 95% RH Max.
