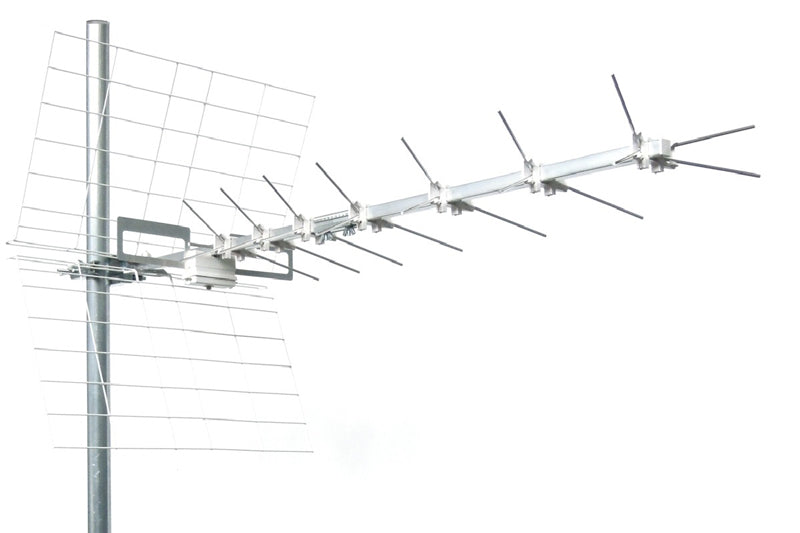

Outdoor antenna Emme Esse 44LX45G, k.21-48, ICE ser., 5G LTE free,1170mm

The 44LX45G antenna from the renowned Italian manufacturer Emme Esse for TV reception on channels 21 to 48, suppresses reception above channel 48 (interfering with mobile internet signals in the 5G and LTE bands). It is also suitable for remote DVB-T and DVB-T2 transmitters. The antenna is pre-assembled and ready for installation.
The antenna is in the surface treatment of the ICE series, which is carried out white treatment with ecological anticorrosive preparation Trattamento (alkaline degreasing, deoxidation, passivation). White plastic has high resistance to xenon light tested in the laboratory.

Excellent antenna parameters prove test results when measuring and comparing antennas at : https://www.televizniweb.cz/2020/01/srovnavaci-test-anten-jaky-je-prinos-novych-anten-pro-pasmo-kanalu-21-48/#comments


Technical parameters :

- operating frequency : 470 - 694 MHz (filtr 5G)
- channels : 21- 48
- gain: 11.5 to 16dB
- front-to-back ratio : 28 dB
- output impedance : 75 ?
- connection : connector F
- beam angle : 40 ° to 24 °
- number of elements : 33
- mechanical load to the mast at 120 km/h : 7 kg
- weight : 2 kg
- length : 1170 mm
