Non-contact Liquid Level Sensor – XKC-Y25-V
Non-contact capacitive liquid level sensor - supply voltage 5–24V DC, digital output HIGH/LOW, detection through the container wall without contact with the liquid, detection distance 0–12 mm depending on the material, response time <500ms, compatible with plastic and glass, IP67 rating, operating temperature -25 to +105°C, mounting with self-adhesive layer, suitable for coffee machines, water dispensers and medical equipment
Will be restocked
Expected shipping:
28.09.2026
at our place
Regular price
€8,09
Unit price
/
Unavailable
TIPA | SKU:
09830329
Product description

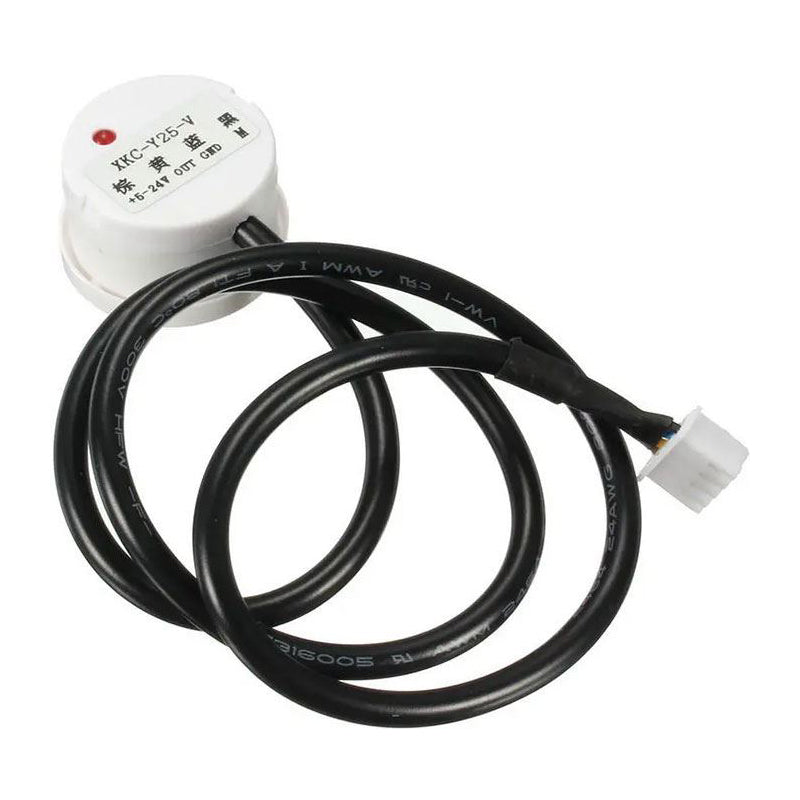

Non-contact Liquid Level Sensor – XKC-Y25-V
The non-contact capacitive sensor XKC-Y25-V is designed for detecting liquid levels through the container wall – without the need for direct contact with the liquid. It is ideal for applications where it is not possible to install a sensor directly into the container due to hygienic, chemical, or safety reasons. It is used in medical devices, coffee machines, automatic water dispensers, and household appliances.
Technical Parameters:
- operating voltage: 5–24V DC
- output type: Digital (HIGH/LOW)
- detection distance: 0–12 mm (depends on container material)
- response time: <500 ms
- detection through materials: plastic, glass
- operating temperature range: -25 to +105 °C
- ingress protection: IP67
- compact design, easy installation with adhesive layer
Advantages:
- Non-contact detection – no wear and tear or contact with the liquid
- Suitable for various container types and liquids
- Easy connection and stable operation
Packing: 1pc
The non-contact capacitive sensor XKC-Y25-V is designed for detecting liquid levels through the container wall – without the need for direct contact with the liquid. It is ideal for applications where it is not possible to install a sensor directly into the container due to hygienic, chemical, or safety reasons. It is used in medical devices, coffee machines, automatic water dispensers, and household appliances.
Technical Parameters:
- operating voltage: 5–24V DC
- output type: Digital (HIGH/LOW)
- detection distance: 0–12 mm (depends on container material)
- response time: <500 ms
- detection through materials: plastic, glass
- operating temperature range: -25 to +105 °C
- ingress protection: IP67
- compact design, easy installation with adhesive layer
Advantages:
- Non-contact detection – no wear and tear or contact with the liquid
- Suitable for various container types and liquids
- Easy connection and stable operation
Packing: 1pc
