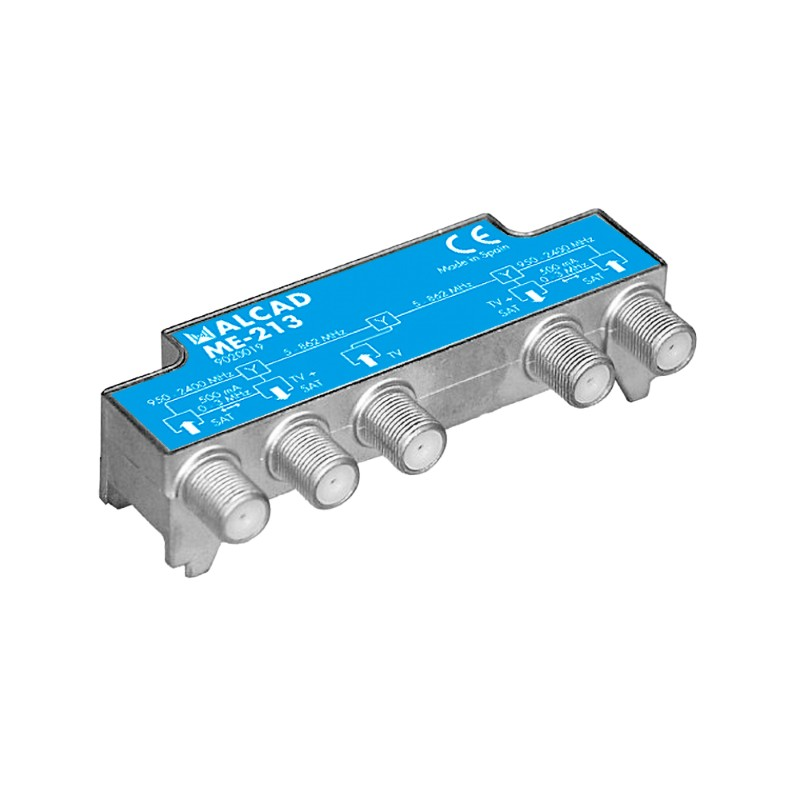

Multiplexer ALCAD AI-ME-213

Dual TV/SAT multiplexer - 3 inputs, frequency range FM/TV 5–862MHz, SAT1 and SAT2 950–2400MHz, FM/TV attenuation 4.0dB ±1.0dB, SAT attenuation 1.0dB ±0.5dB, isolation between inputs ?35dB, maximum current 500mA (SAT), operating temperature -10 to +65°C, IP53 rating for outdoor and indoor installation

Show full description
In stock 8 pcs
Expected shipping: 25.09.2026
€14,20
ALCAD  |  SKU: 14430917  |  Barcode: 8425988205100
Log in for VAT-free pricing

Product description

Dual TV/SAT multiplexer

Technical parameters:

Inputs: x3
Frequency range: 5 – 862 MHz FM/TV; 950 – 2400 MHz SAT1; 950 – 2400 MHz SAT2
Attenuation: 4.0 dB +/- 1.0 FM/TV; 1.0 dB +/- 0.5 FM/TV
Isolation between inputs: >= 35 dB
Maximum current: 500 mA (SAT)
Operating temperature: -10 ~ 65 °C
Protection class: IP53
