Multimeter UNI-T UT222 clamp
AC/DC TRMS clamp multimeter - max. current 2500A AC/DC (ranges 600A/2500A), AC voltage up to 1000V, DC voltage up to 750V, resistance up to 600M?, frequency up to 600MHz, temperature -40 to 1000°C, 6000-count display, clamp diameter 63 mm, Inrush function, AC+DC, duty cycle, automatic range selection, memory for up to 1000 values, supplied with a case, 3-year warranty
In stock 7 pcs
Expected shipping:
29.09.2026
Sale price
€182,09
Regular price
€317,03
Unit price
/
Unavailable
UNI-T | SKU:
07720179
Product description
This product comes with a 3-year warranty.

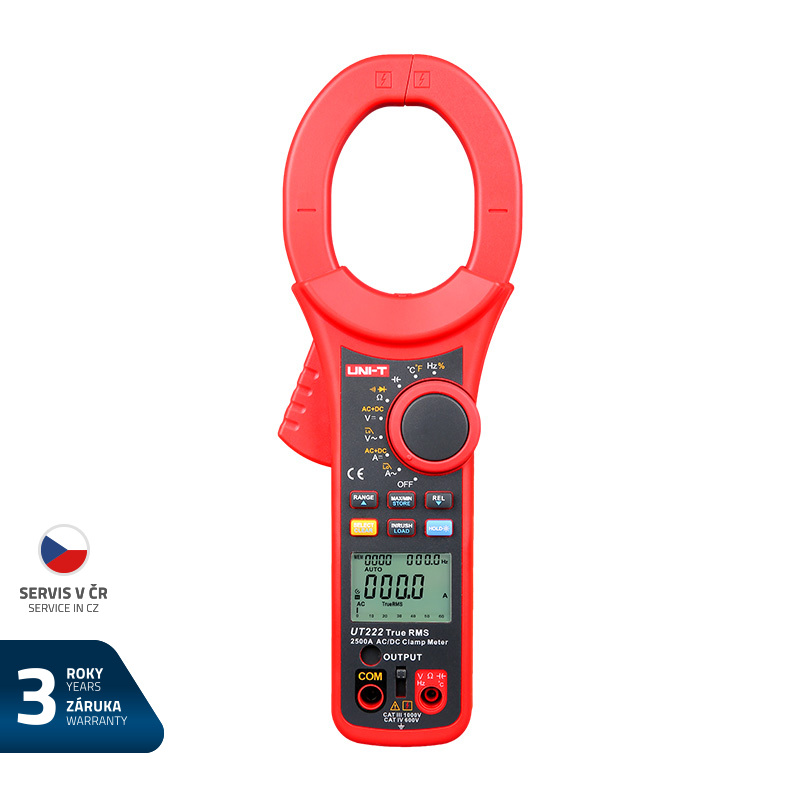

UNI-T UT222 - 2500A clamp meter
SPECIFICATION
Alternate Current
600A/2500A ±(1.5%+5)
Direct Current
600A/2500A ±(1.5%+5)
Alternate Voltage
6V/60V/600V/1000V ±(1%+3)
Direct Voltage
6V/60V/600V/750V ±(0.5%+2)
Resistance
600?/6k?/60k?/600k?/6M?/600M? ±(1%+2)
Frequency
60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/600MHz ±(0.1%+3)
Temperature
-40°C ~ 1000°C* ±(1%+10)
FUNCTIONS
Display Count 6000
Auto Range

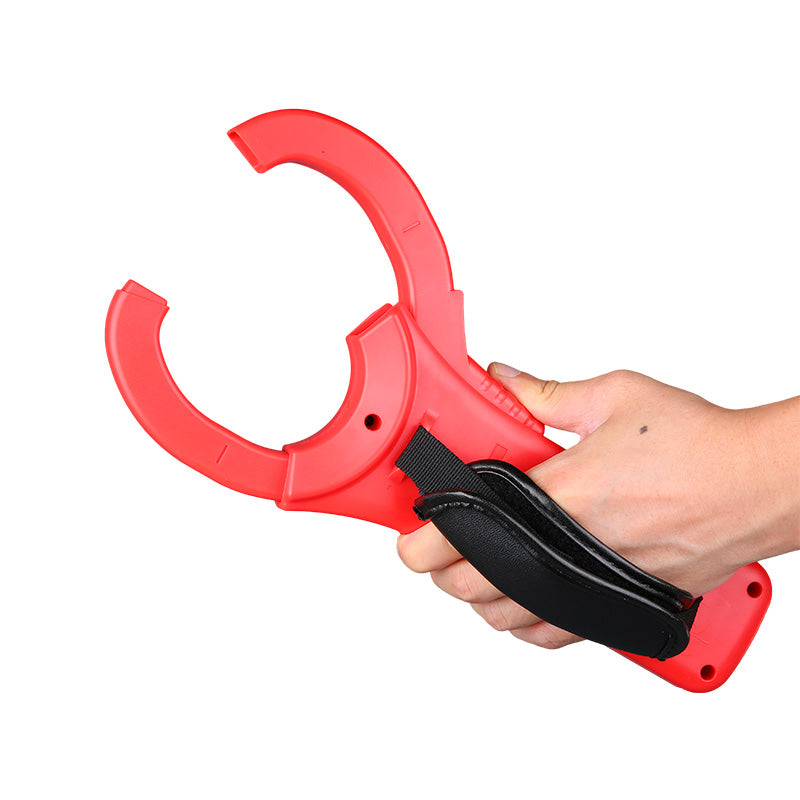

Jaw Opening 63mm
TRMS
Duty Cycle
Low-pass filter
Inrush Current
Relative Function
Diode Test
Continuity buzzer
Data Hold
Max mode
Analogue Bargraf 61
Datalogging 1000
I-OUT function
Display Backlight
Iconic Display
Auto Power Off
Low Battery Indication
Input Impedance 10M?+
GENERAL CHARACTERISTICS
Power: 9V alkaline battery
Size: 298x100x48mm
LCD Size: 43x30mm
Weight: 725g
UNI-T UT222 - 2500A clamp meter
SPECIFICATION
Alternate Current
600A/2500A ±(1.5%+5)
Direct Current
600A/2500A ±(1.5%+5)
Alternate Voltage
6V/60V/600V/1000V ±(1%+3)
Direct Voltage
6V/60V/600V/750V ±(0.5%+2)
Resistance
600?/6k?/60k?/600k?/6M?/600M? ±(1%+2)
Frequency
60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/600MHz ±(0.1%+3)
Temperature
-40°C ~ 1000°C* ±(1%+10)
FUNCTIONS
Display Count 6000
Auto Range
Jaw Opening 63mm
TRMS
Duty Cycle
Low-pass filter
Inrush Current
Relative Function
Diode Test
Continuity buzzer
Data Hold
Max mode
Analogue Bargraf 61
Datalogging 1000
I-OUT function
Display Backlight
Iconic Display
Auto Power Off
Low Battery Indication
Input Impedance 10M?+
GENERAL CHARACTERISTICS
Power: 9V alkaline battery
Size: 298x100x48mm
LCD Size: 43x30mm
Weight: 725g
