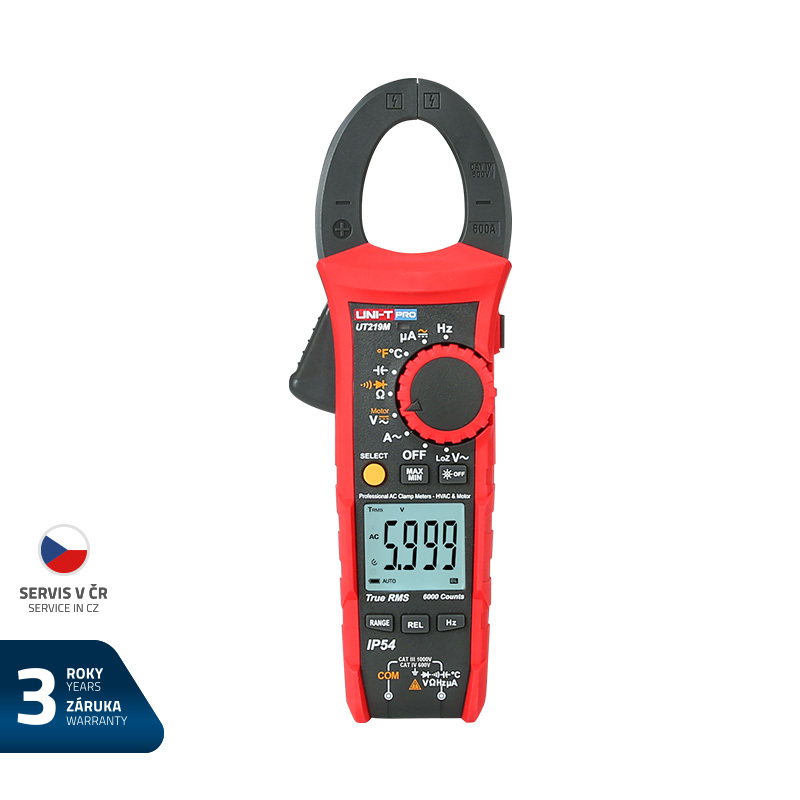

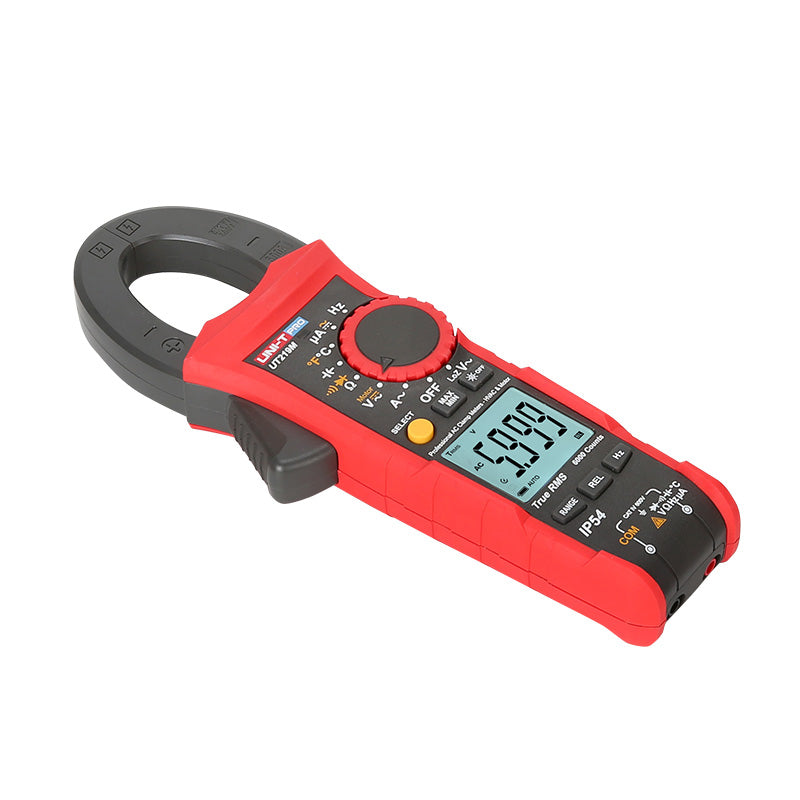

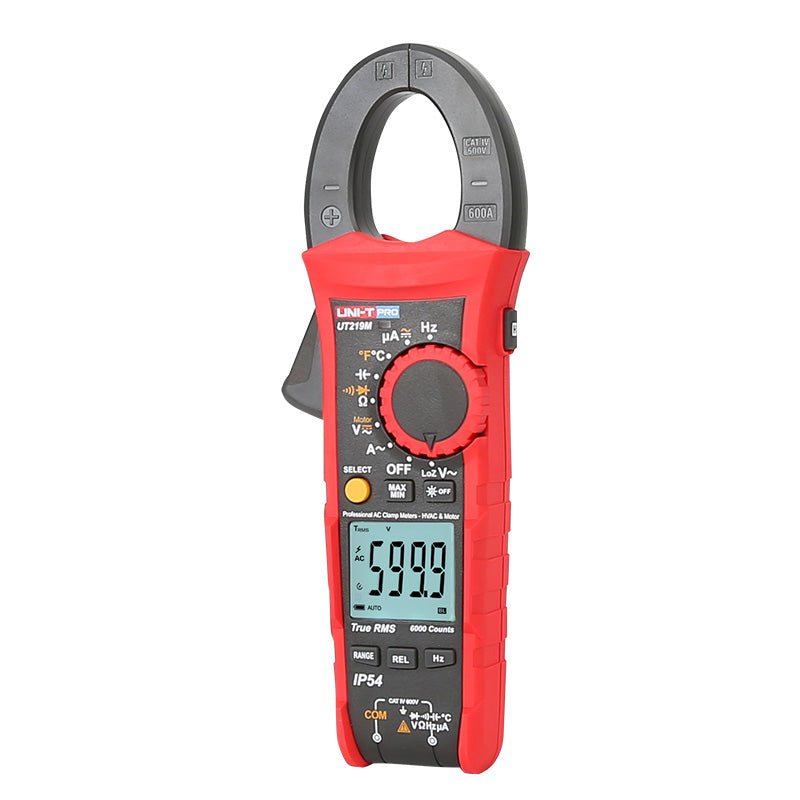

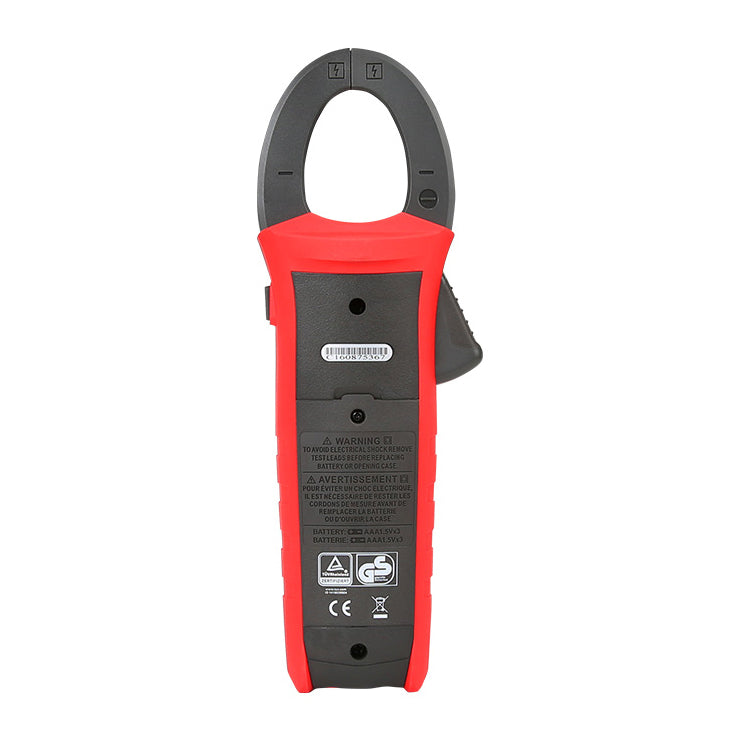

Multimeter UNI-T UT219M clamp PRO Line

This product comes with a 3-year warranty.

UT219M Professional Clamp Meter

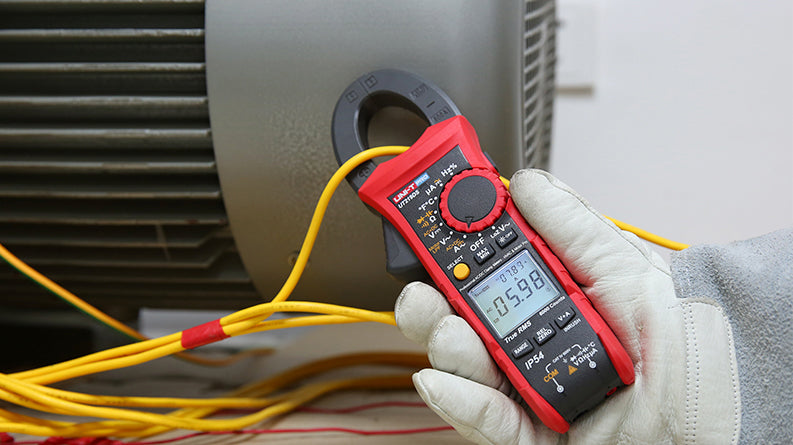

UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians

1. LoZ input for ghost voltage measurement
2. Flashlight and auto backlight
3. 3-phase motor sequence test
4. Temperature and µA measurements (flame sensor)


Specificationsy:
- AC current (A): 600A ±(1.8%+6)
- AC voltage (V): 1000V ±(1%+6)
- DC voltage (V): 1000V ±(0.6%+3)
- LoZ ACV: 600V ±(2.5%+6)
- Resistance (?): 60M? ±(1%+3)
- Capacitance (F): 60mF ±(4%+7)
- Frequency (Hz): 60Hz~40MHz ±(0.1%+5)
- Temperature: -40~1000? ±(2%+5?)
-40~1832? ±(2%+9?)


Features:

Display count: 6000
Auto/Manual range: ?
Jaw opening: 33mm
True RMS: ?
AC current frequency response: 40Hz~400Hz
AC voltage frequency response: 40Hz~400Hz
3-phase motor sequence test 600V: ?
Diode test: 3V
Measurement sampling rate: 3 times/s
Display interface (LCD): Single
Auto power off/MAX/MIN: ?
Low battery indication: ?
Data hold (H)/Relative mode (REL): ?
ZERO mode: ?
Function selection (SELECT): ?
Auto backlight/2m drop test: ?
IP rating: IP54
Input impedance ?10M?


General Characterisitics:

Power: 1.5V battery (R03) x 3
Display: 35mm x 31mm
Product color Red and grey
Product net weight: 310g
Product size: 234.6mm x 82mm x 47mm
Standard accessories Test leads, batteries, carrying bag, point contact temperature probe
Standard individual packing Gift box, blister, English manual
Standard quantity per carton 10pcs

UNI-T
