MPS-5500HP hybrid voltage converter, 5.5 kW/48 V
Hybridní měnič napětí - systémové napětí 48V, výkon 5,5kW, čistá sinusovka, integrovaný MPPT solární regulátor, nabíjecí proud ze sítě max. 40A (přednastaveno 30A), nabíjecí proud ze solárních panelů max. 110A, funkce UPS se zálohováním ze sítě nebo generátoru, nastavitelná priorita AC nebo BAT, ochrana proti přetížení, zkratu a hlubokému vybití baterií, automatický restart po přetížení, kompatibilní s generátorem i veřejnou sítí
In stock more than 5 pcs
Expected shipping:
04.09.2026
Regular price
€528,76
Unit price
/
Unavailable
OEM | SKU:
04230588

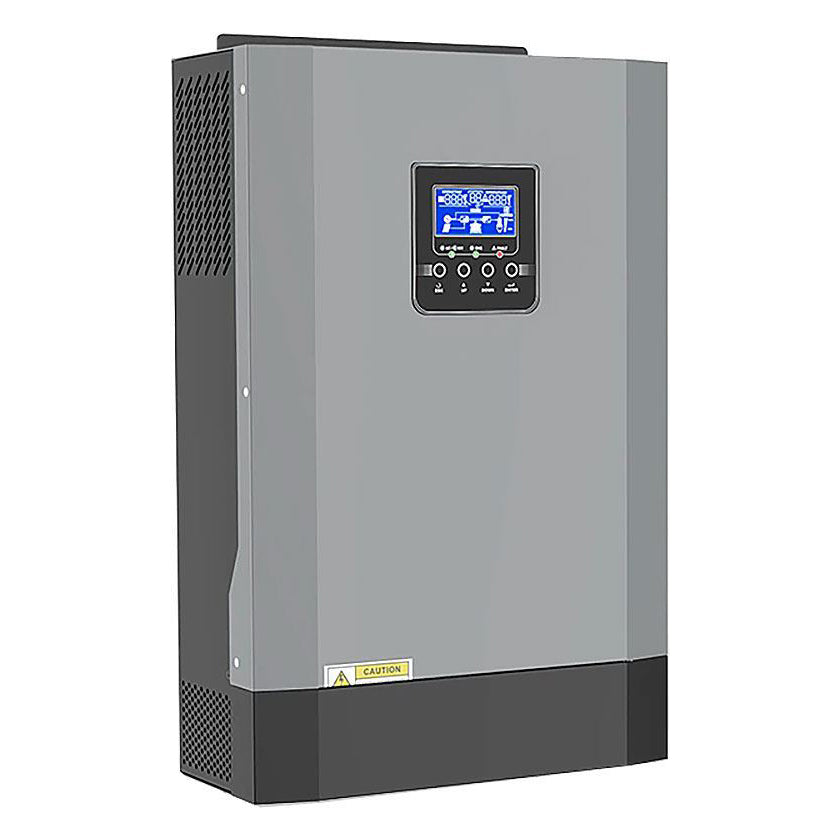

MPS-5500HP hybrid voltage converter, 5.5 kW/48 V
Regular price
€528,76
Unit price
/
Unavailable
Product description
The device combines a pure sine wave inverter, a UPS and an MPPT controller for solar panels. It is therefore a backup power supply with backup from the mains or a generator, a battery charger and an MPPT solar controller; the backup priority can also be set in reverse, i.e. with priority given to the mains supply and backup from batteries or PV panels.
Product specifications:
- system voltage 48V - pure sine wave inverter - battery charging current when operating from the mains: max. 40A, preset to 30A - charging current when operating from solar panels: max. 110A
- adjustable priority: AC or BAT - compatible with generator or mains voltage; the inverter synchronises with the AC input - protection against overload, short circuit and battery discharge - automatic restart after overload
- intelligent battery charger - compatible batteries: primarily any lead-acid batteries (AGM, AGM GEL) - for LiFePO4, the required parameters must be set in USE mode – for experienced users only
- soft start for gradual load ramp-up - standby power consumption: 10W - solar panels with open-circuit voltage of 120–450V and maximum current of 20A (max. 6000W)
Note: - Parallel or three-phase connections are not possible. - Minimum voltage from PV panels for trouble-free operation: 160 V.
- Optimal voltage from PV panels for safe operation: 250–300 V - Maximum voltage from PV panels: 500 V – not recommended, particularly given the need to connect more than 10 panels in series. In such cases, strings are prone to outages due to shading of one of the panels connected in this way. - The values shown on the display are for guidance only and are relevant only when a load is connected.
- The inverter is intended for use only in TN-S or TN-C-S networks, in accordance with currently applicable standards. Use in TN-C networks (two-wire, phase + working earth) may result in damage to or malfunction of the device.
This device may only be installed by an authorised person (certificate under Decree No. 50/1978 Coll. and a photovoltaic systems electrician (26–014-H))
Incorrect settings of the inverter’s parameters may result in damage to the inverter. Claims arising from incorrect settings cannot be accepted.
- system voltage 48V - pure sine wave inverter - battery charging current when operating from the mains: max. 40A, preset to 30A - charging current when operating from solar panels: max. 110A
- adjustable priority: AC or BAT - compatible with generator or mains voltage; the inverter synchronises with the AC input - protection against overload, short circuit and battery discharge - automatic restart after overload
- intelligent battery charger - compatible batteries: primarily any lead-acid batteries (AGM, AGM GEL) - for LiFePO4, the required parameters must be set in USE mode – for experienced users only
- soft start for gradual load ramp-up - standby power consumption: 10W - solar panels with open-circuit voltage of 120–450V and maximum current of 20A (max. 6000W)
Note: - Parallel or three-phase connections are not possible. - Minimum voltage from PV panels for trouble-free operation: 160 V.
- Optimal voltage from PV panels for safe operation: 250–300 V - Maximum voltage from PV panels: 500 V – not recommended, particularly given the need to connect more than 10 panels in series. In such cases, strings are prone to outages due to shading of one of the panels connected in this way. - The values shown on the display are for guidance only and are relevant only when a load is connected.
- The inverter is intended for use only in TN-S or TN-C-S networks, in accordance with currently applicable standards. Use in TN-C networks (two-wire, phase + working earth) may result in damage to or malfunction of the device.
This device may only be installed by an authorised person (certificate under Decree No. 50/1978 Coll. and a photovoltaic systems electrician (26–014-H))
Incorrect settings of the inverter’s parameters may result in damage to the inverter. Claims arising from incorrect settings cannot be accepted.
