Module XH-M214 for automatic irrigation including probe

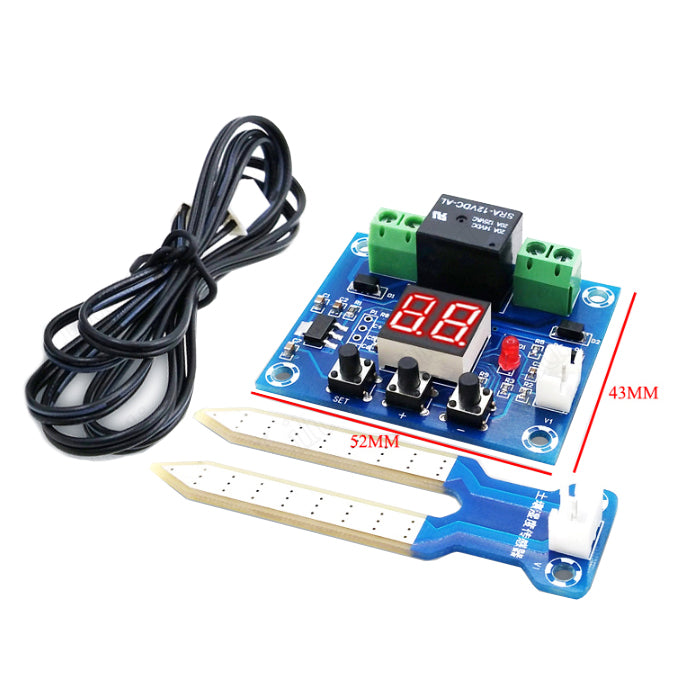

Automatic irrigation module with relay - model XH-M214, power supply 12V DC, soil moisture control range 20–99% RH, control accuracy 1% RH, relay contacts 250VAC/10A, adjustable lower and upper humidity limits for automatic irrigation switching, measured value correction, PCB dimensions 52 × 43 × 16 mm, capacitive soil moisture probe included, requires professional installation
In stock 11 pcs
Expected shipping:
25.09.2026
Regular price
€5,04
Unit price
/
Unavailable
TIPA | SKU:
09830290
Product description
Sensor for measuring soil moisture with a module for automatic irrigation with a relay, enabling automatic switching on and off of irrigation when the set values are reached.
Technical parameters:
Model XH-M214
Supply voltage: 12VDC
Control range: 20-99%RH
Regulation accuracy: 1%RH

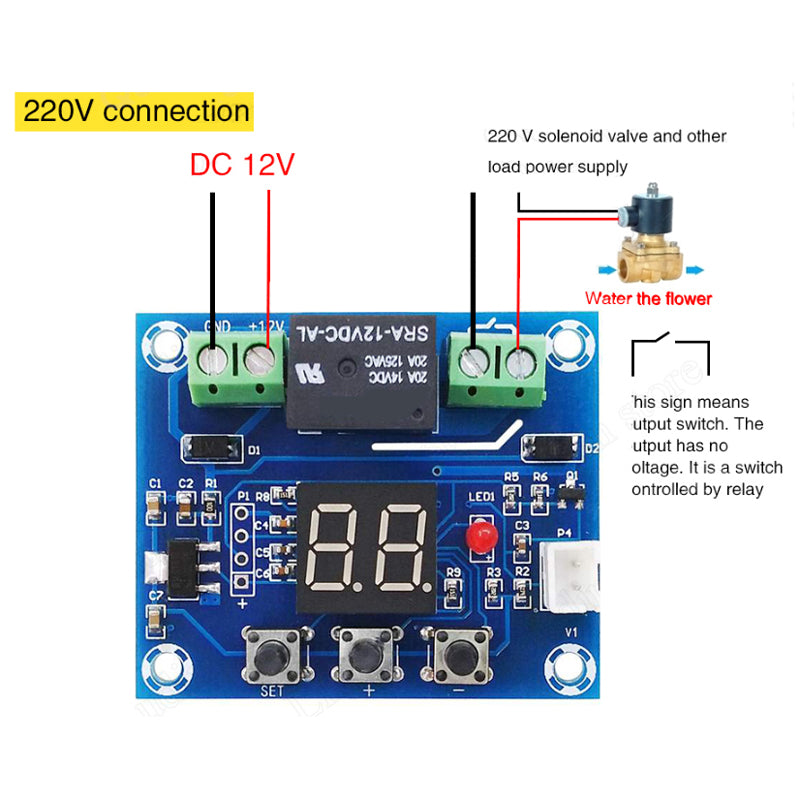

Relay contacts: 250VAC/10A
PCB size: 52×43×16mm
Instructions for use:
Use the SET button to select the setting mode F0, F1 or F2
In the F0 mode, use the +/- buttons to set the lower limit of humidity at which the irrigation will be switched on.
In the F1 mode, use the +/- buttons to set the upper limit of humidity at which the irrigation will be switched on.
In F2 mode, use the +/- buttons to set the correction of the measured humidity.
The product is not an independently functional unit, it requires professional assembly.
