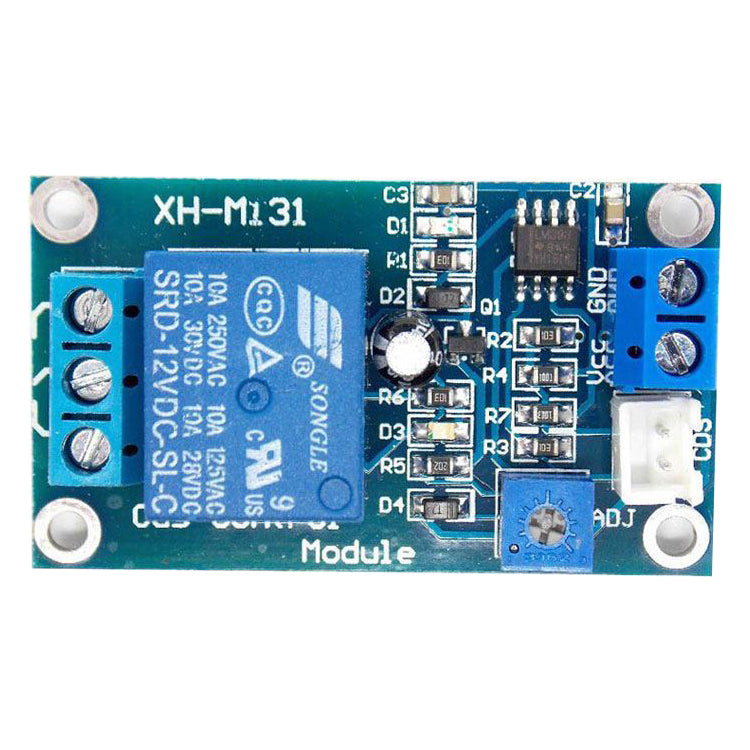

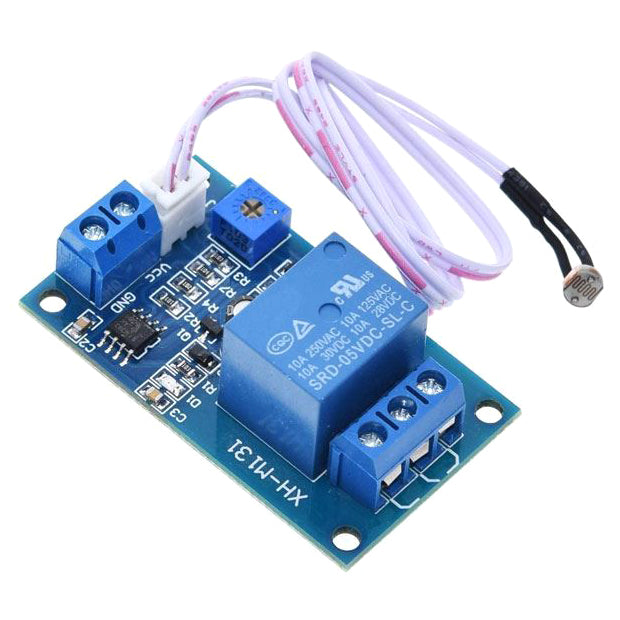

Light-sensitive sensor with relay, XH-M131 module, 12V supply
Light-sensitive sensor with relay - power supply 12V DC, consumption <100mA, LM393 comparator, photoresistor sensor, sensitivity adjustable by trimmer, the relay switches when the set light intensity is exceeded, NO+NC contacts 250VAC/10A, green LED power indication, red LED indication of relay switching, dimensions 50 × 26 mm, requires professional installation
Will be restocked
Expected shipping:
28.09.2026
at our place
Regular price
€2,24
Unit price
/
Unavailable
TIPA | SKU:
09830102
Product description
Light-sensitive sensor with relay output. The relay closes when the ambient light intensity exceeds the set value. The switching sensitivity of the power relay is set by the trimmer. LED status indication.
Technical parameters:
- power supply: 12 V DC
- consumption <100mA in active state
- comparator: LM393
- sensor: photoresistor
- setting the sensitivity with the trimmer
- green LED to indicate power supply of the module
- red LED to indicate relay closing
- contacts NO + NC 250VAC / 10A
- size: 50 × 26 mm
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- power supply: 12 V DC
- consumption <100mA in active state
- comparator: LM393
- sensor: photoresistor
- setting the sensitivity with the trimmer
- green LED to indicate power supply of the module
- red LED to indicate relay closing
- contacts NO + NC 250VAC / 10A
- size: 50 × 26 mm
The product is not a stand-alone unit, it requires professional installation.
