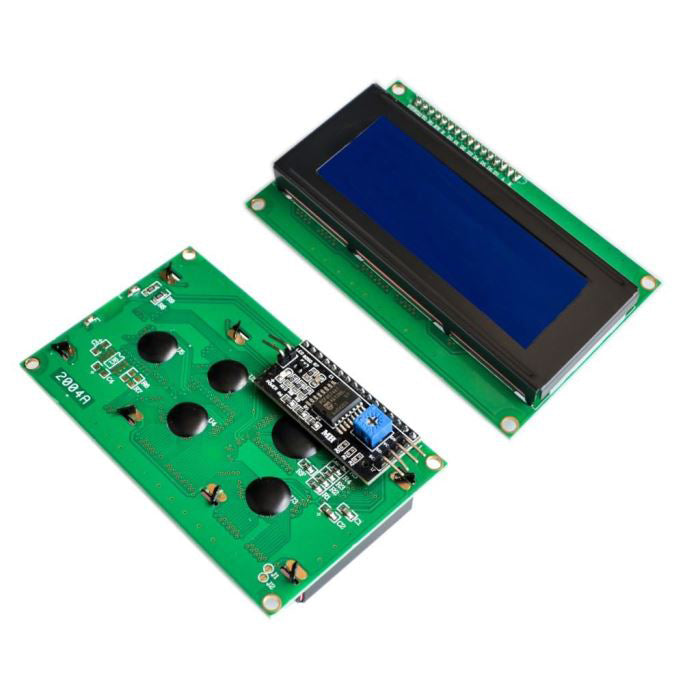

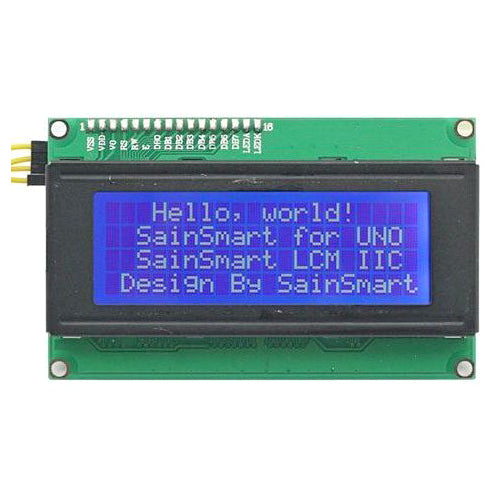

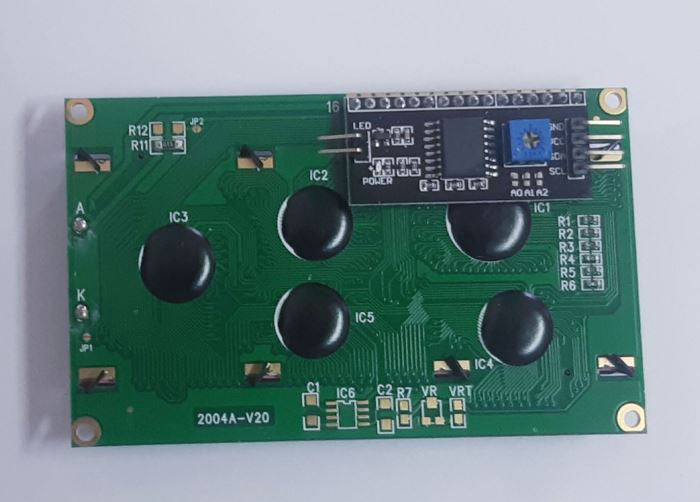

LCD2004 IIC / I2C display, 20x4 characters, blue backlight
15% off
LCD alphanumeric display - 20 characters × 4 lines, power supply 5V, white text on blue backlight, I2C (IIC) interface, HD44780 driver IC, I2C address 0×27, pins GND/VCC/SDA/SCL, backlight setting with a jumper on the I2C converter, dimensions 98 × 60 × 12 mm, compatible with Arduino and Raspberry Pi, requires professional installation
In stock 8 pcs
Expected shipping:
29.09.2026
Sale price
€4,84
Regular price
€5,69
Unit price
/
Unavailable
HADEX | SKU:
09830088
Product description
Clear display with blue backlight.
Technical parameters:
- display: 20 characters x 4 lines
- power supply: 5V
- white text, blue backlight
- dimensions: 98 × 60 × 12mm
- driver IC: HD44780
- interface: I2C
- I2C address: 0 × 27 (address cannot be changed)
- pins: GND, VCC, SDA, SCL
- SDA (DATA) › analog input pin 4
- SCL (CLOCK) › analog input pin 5

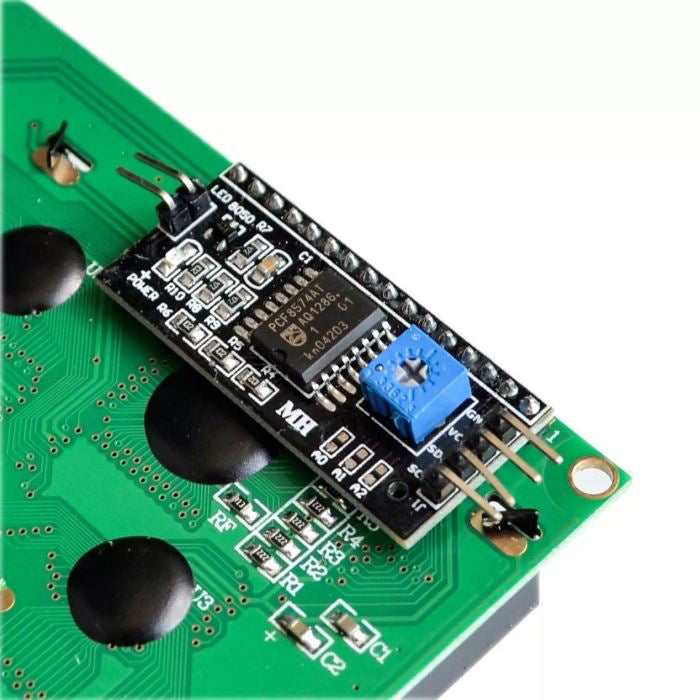

- backlight tuning: jumper on I2C converter
Commissioning library: http://www.mathertel.de/…PCF8574.aspx
The product is not a self-functional unit, it requires professional assembly.
Technical parameters:
- display: 20 characters x 4 lines
- power supply: 5V
- white text, blue backlight
- dimensions: 98 × 60 × 12mm
- driver IC: HD44780
- interface: I2C
- I2C address: 0 × 27 (address cannot be changed)
- pins: GND, VCC, SDA, SCL
- SDA (DATA) › analog input pin 4
- SCL (CLOCK) › analog input pin 5
- backlight tuning: jumper on I2C converter
Commissioning library: http://www.mathertel.de/…PCF8574.aspx
The product is not a self-functional unit, it requires professional assembly.
