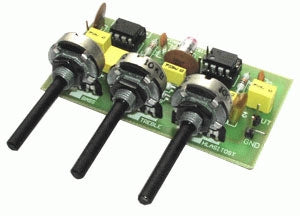

Kit TIPA PT007 Correcting pre-amplifier for guitar and microphone

Guitar and microphone preamplifier kit - gain 30/60dB, frequency range 30Hz–30kHz, signal-to-noise ratio >60dB, supply voltage ±9 to ±18V / max. 15mA, three potentiometers for volume control, bass and treble, input for electric guitar pickups, bass guitars or microphone, PCB dimensions 71 × 38 mm

Show full description
Not in stock
€15,43
TIPA  |  SKU: 09810561  |  Barcode: 8595563709658
Log in for VAT-free pricing

Product description

This kit is used as preamplifier for electric guitars, bassguitars or microphone. With three potenciometers, volume, bass and heights can be regulated.

Operating voltage: +/- 9 to 18 V DC (symetrical)
Amplification: 30/60 dB
Frequency range: 30 Hz – 30 kHz
PCB dimensions: 71x38 mm (2.795x1.496 inch)

More kits TIPA and technical support at http://stavebnice.tipa.eu
