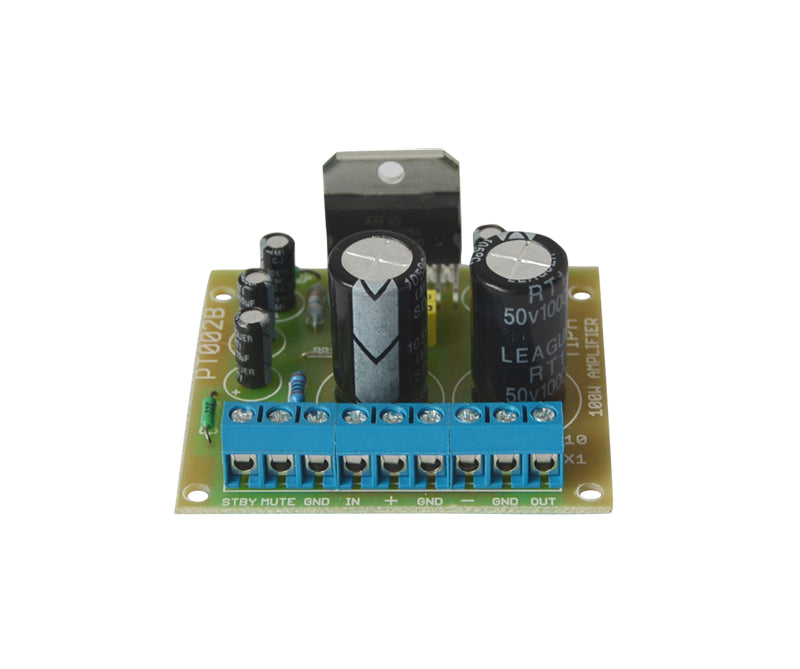

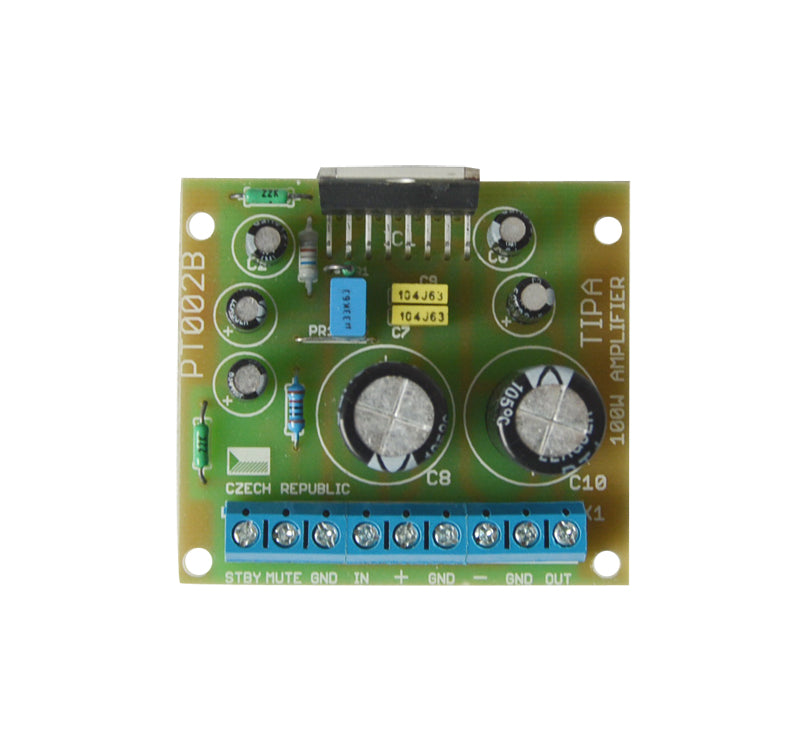

Kit TIPA PT002B Amplifier 100W with TDA7294
Mono Hi-Fi amplifier kit - output power 100W (4?) / 70W (8?), TDA7294 circuit, class AB, supply voltage ±10 to ±42V, input impedance 22k?, minimum load 4?, distortion 0.005% at 5W, sensitivity 650mV, frequency range 0.02–100kHz, short-circuit and overheating protection, PCB dimensions 58.5 × 52 mm, recommended heat sink thermal resistance 0.8 K/W
In stock 23 pcs
Expected shipping:
30.09.2026
Regular price
€8,88
Unit price
/
Unavailable
TIPA | SKU:
09810555
Product description
This kit which is used as mono Hi-Fi amplifier in class AB. Thanks to the small dimensions, fuse for overheat or overcurrent can be used in many different aplications. Shock of current during starting up or shutting down is minimum.
Operating voltage: +/- 10 to 42 V DC (symetrical)
In/out impedance: 22k Ohm / min 4 Ohm
Output power: 70 W (+/- 36 V, Rrep = 8 Ohm) or 100 W (+/- 36 V, Rrep = 4 Ohm)
Distortion: 0.005% (Output power = 5 W)
Input sensivity: 650 mV
Frequency range (–3dB): 20 Hz – 100 kHz
PCB dimensions: 59x52 mm (2.333x2.047 inch)
For stereo version see PT003B.
More kits TIPA and technical support at http://stavebnice.tipa.eu
