Kaon MZ-52 Nagravision

The latest satellite receiver from Skylink with the cardless Nagravision CA system. The device is now improved with the new FastScan version 8, updated via OTA transmission. Automatic recognition of the DiSEqC port remains a matter of course. Users will also appreciate the possibility of programmable PVR recording to USB media, or the Timeshift function. Since the receiver does not physically contain any card and works only with a virtual card, problems associated with card and reader malfunctions are eliminated.

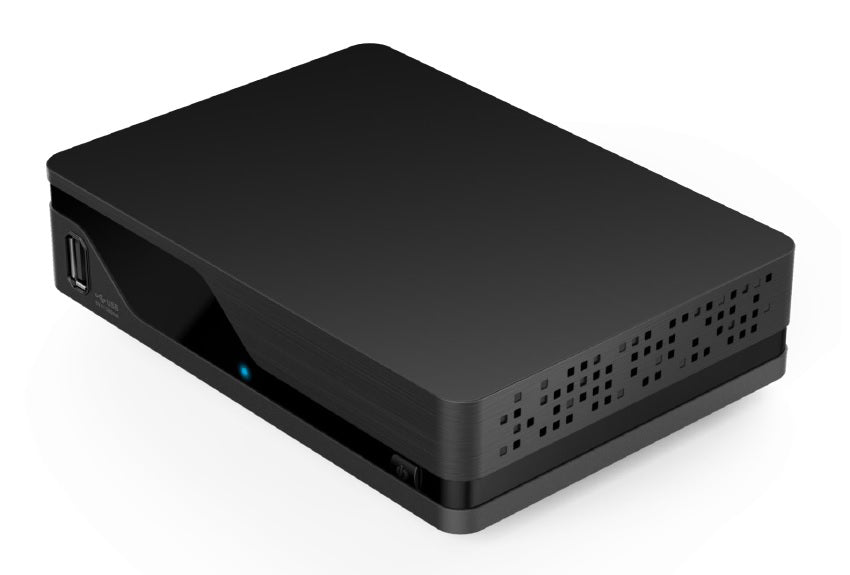

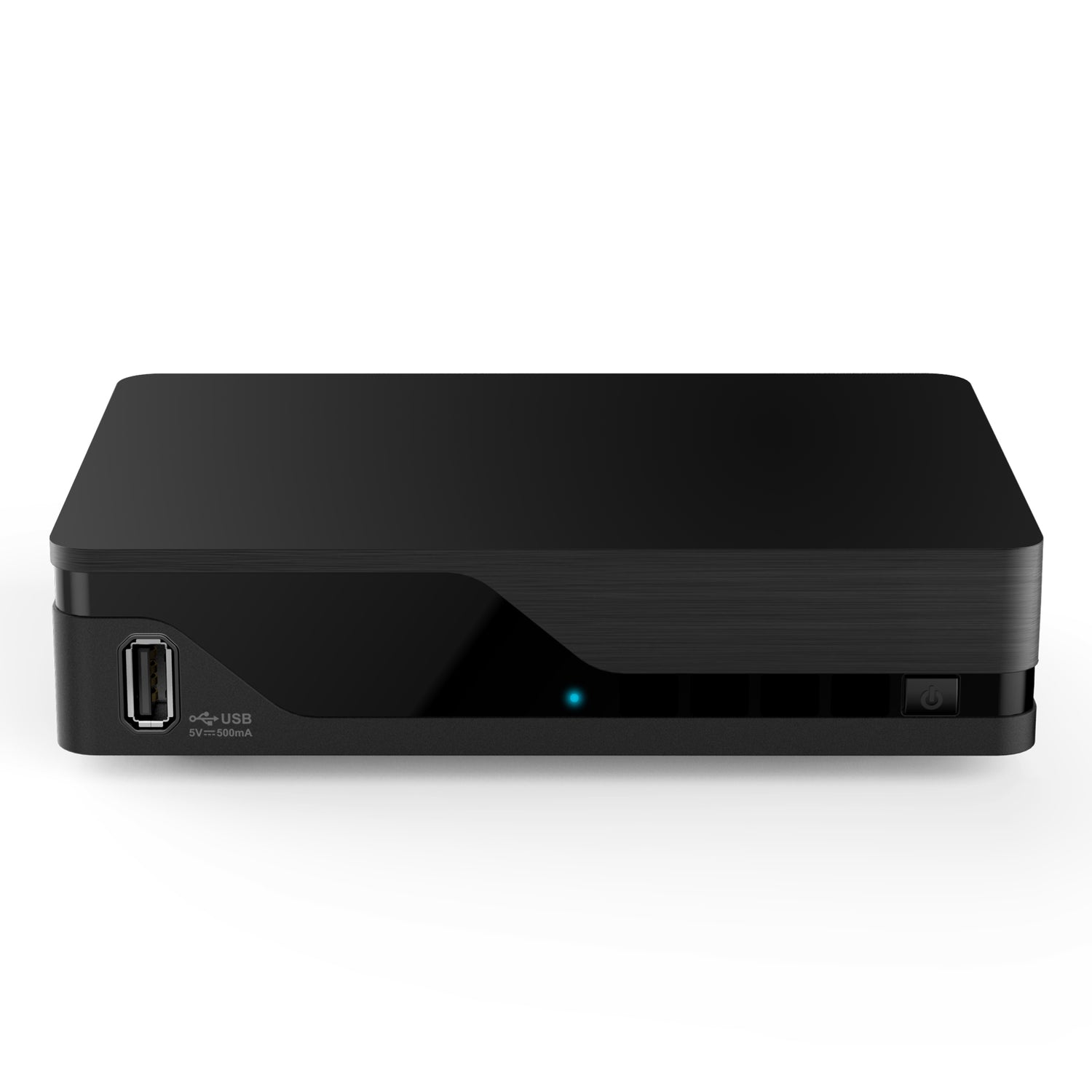

Satellite FullHD receiver MZ-52 with cardless Nagravision system
New FastScan version 8, automatic detection of DiSEqC port
Up to 4 satellites can be received, DiSEqC 1.2 and USALS control protocol
Very easy to use and intuitive OSD menu
Developed by Skylink operator according to the latest specifications
EPG, teletext, favorite groups, OTA software updates

Technical parameters:

- Chipset: Broadcom BCM73**
- Input 1x LNB in ??(F-type), DiSEqC 1.0, 1.1, 1.2, USALS
- Automatic detection of DiSEqC port
- Input frequency 950 MHz ~ 2150 MHz
- Image decoder: MPEG-2 MP@ML/HL, H.264 AVC, H.265 HEVC, up to 1080i
- Audio decoder: MPEG-1 Audio layer I and II, Dolby Digital (AC-3), HE-AACv2
- SDRAM: 128MB NAND / 256MB DDR3
- CAS: Nagra CAK8

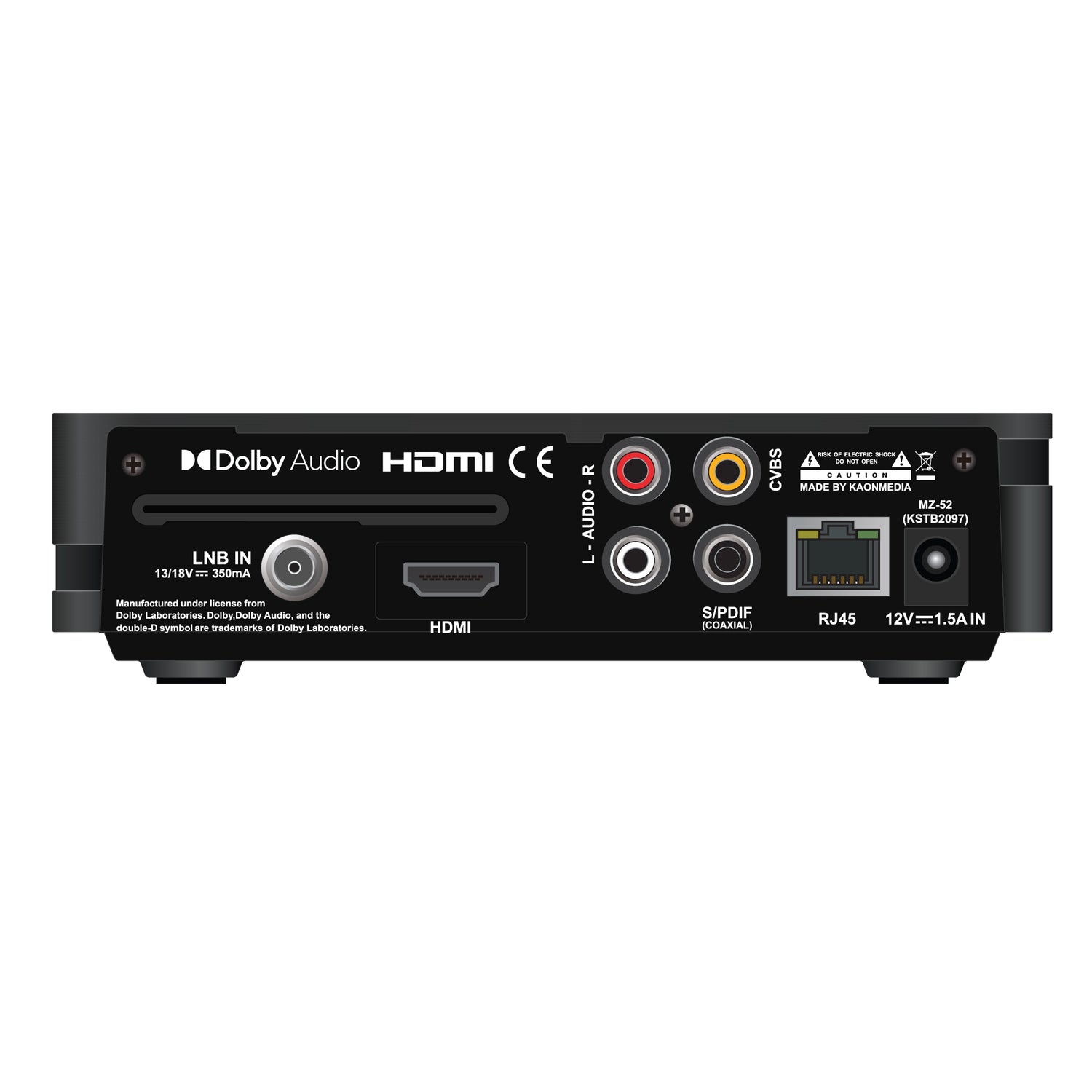

- Input / output interface:
- 1x DC 12V / 1.0 A external power input
- 1x RJ-45 (Ethernet 10/100 Mbps)
- 1x HDMI (1.4a / HDCP 1.2)
- 1x analog output (RCA)
- 1x S/PDIF (coaxial)
- 1x antenna input F connector
- 1x USB 2.0

Package contents:

- Satellite receiver MZ-52

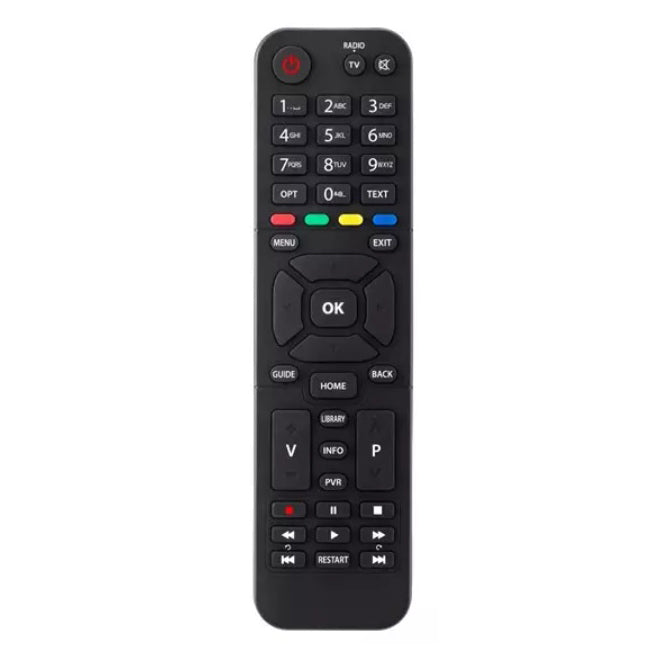

- Remote control
- Battery
- HDMI cable
- Analog AV cable
- User manual
