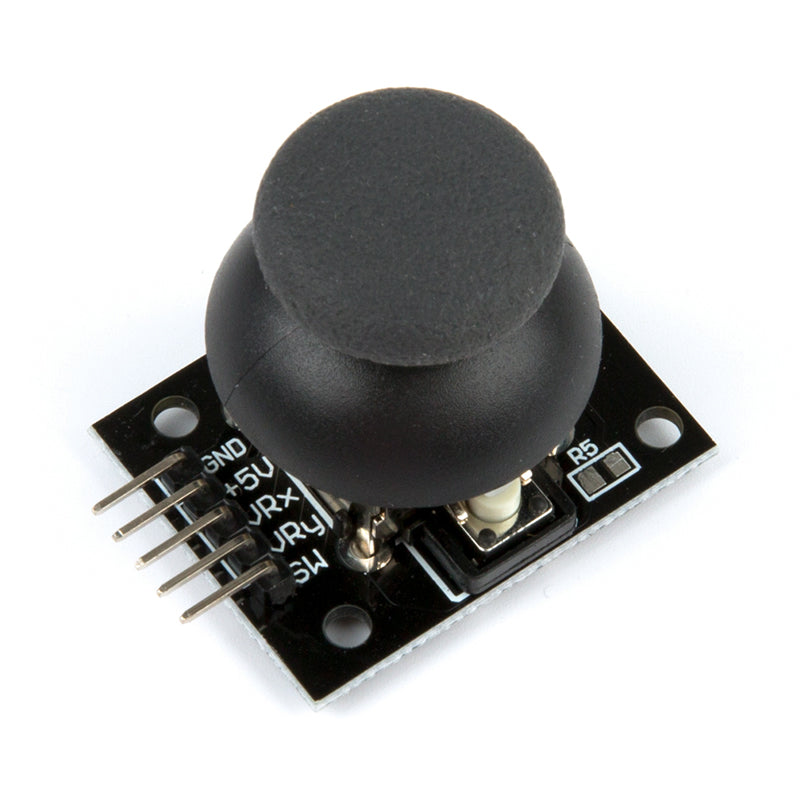

Joystick with button KY-023
Sale
Joystick module with button - type KY-023, motion sensing in two axes X and Y using two 10k? trimmers, analogue output 0V–5V for VRx and VRy axes, digital SW output for the push button, supply voltage 3.3V to 5V, GND/VCC/VRx/VRy/SW pins, dimensions 26 × 34 × 30 mm, suitable for RC models, robotic applications and custom controllers, requires professional installation
In stock 5 pcs
Expected shipping:
29.09.2026
Regular price
€0,61
Unit price
/
Unavailable
TIPA | SKU:
02630057
Product description

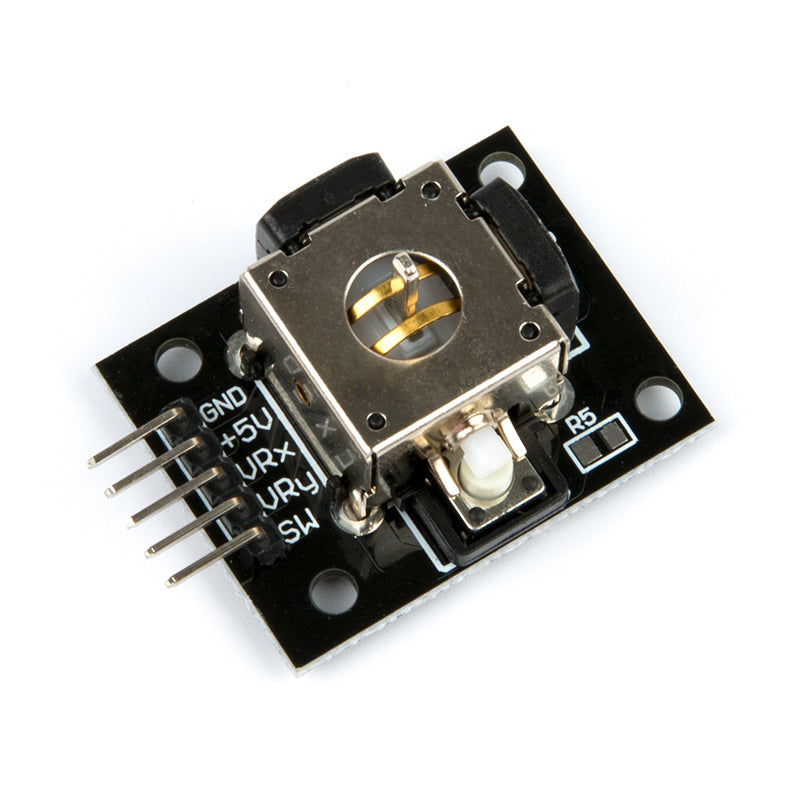

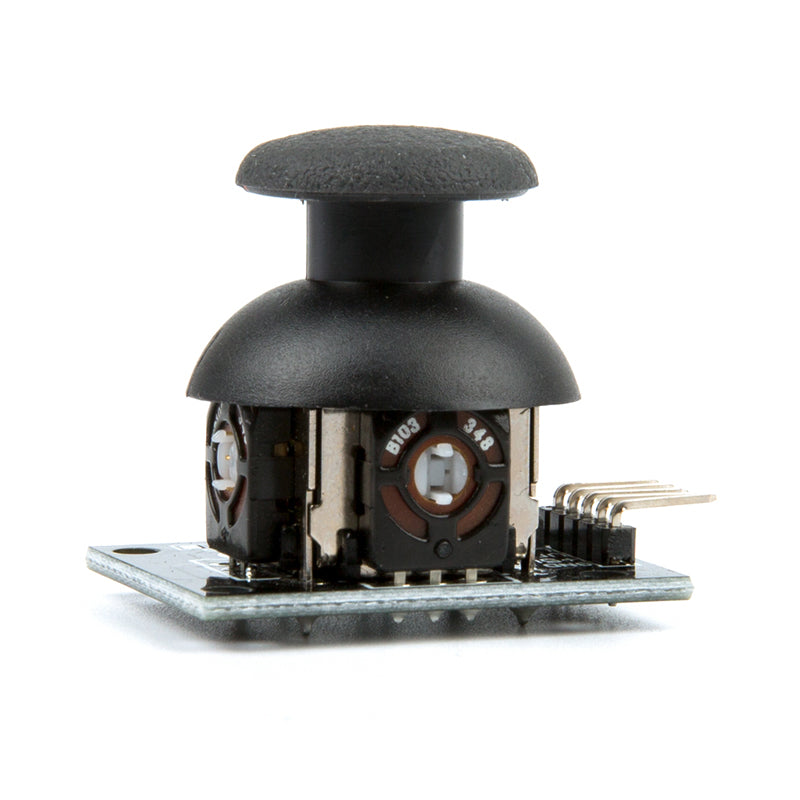

The KY-023 joystick module with a button allows for the detection of movement in two axes, X and Y, using two 10k? potentiometers. The button is activated when the joystick is pressed down. The X and Y values correspond to an output analog voltage level of 0V to 5V. It is suitable for use in RC models, robotic arms, or various controllers.

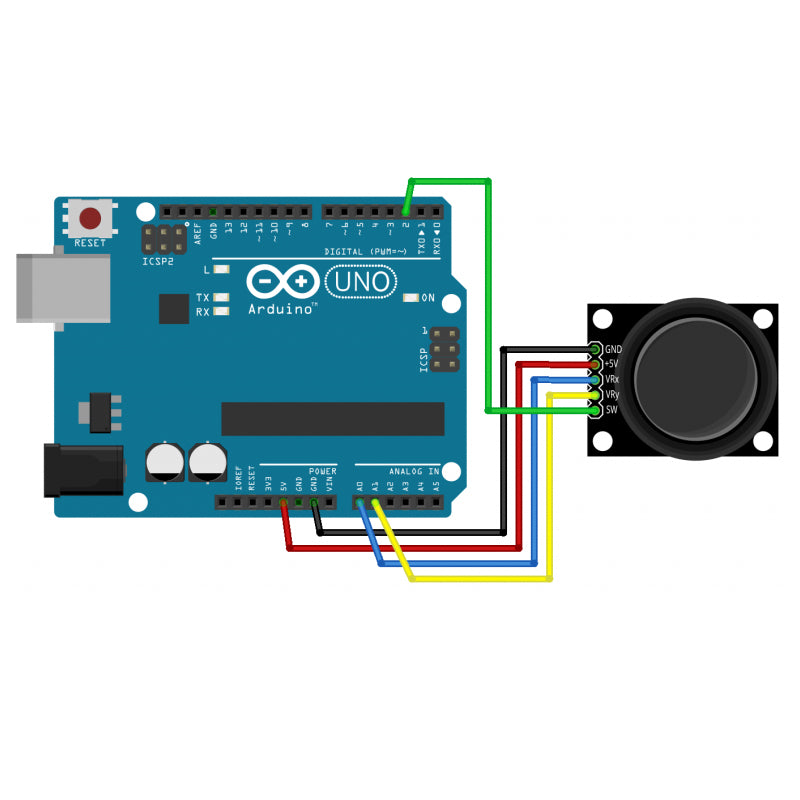

Pins:
- GND: (ground, 0V)
- VCC: (5V)
- VRx: (analog output X)
- VRy: (analog output Y)
- SW: (digital output, button)
Parameters:
- Power supply voltage: 3.3V to 5V
- Dimensions: 26 x 34 x 30 mm
This product is not a self-contained unit and may require professional assembly.
Pins:
- GND: (ground, 0V)
- VCC: (5V)
- VRx: (analog output X)
- VRy: (analog output Y)
- SW: (digital output, button)
Parameters:
- Power supply voltage: 3.3V to 5V
- Dimensions: 26 x 34 x 30 mm
This product is not a self-contained unit and may require professional assembly.
