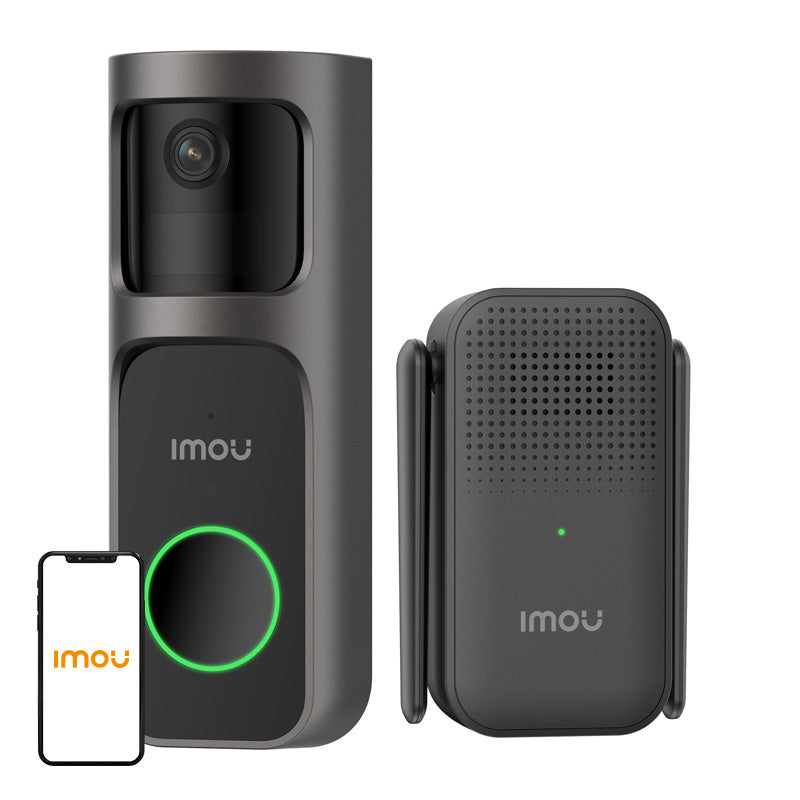

IMOU 2S Video Doorbell

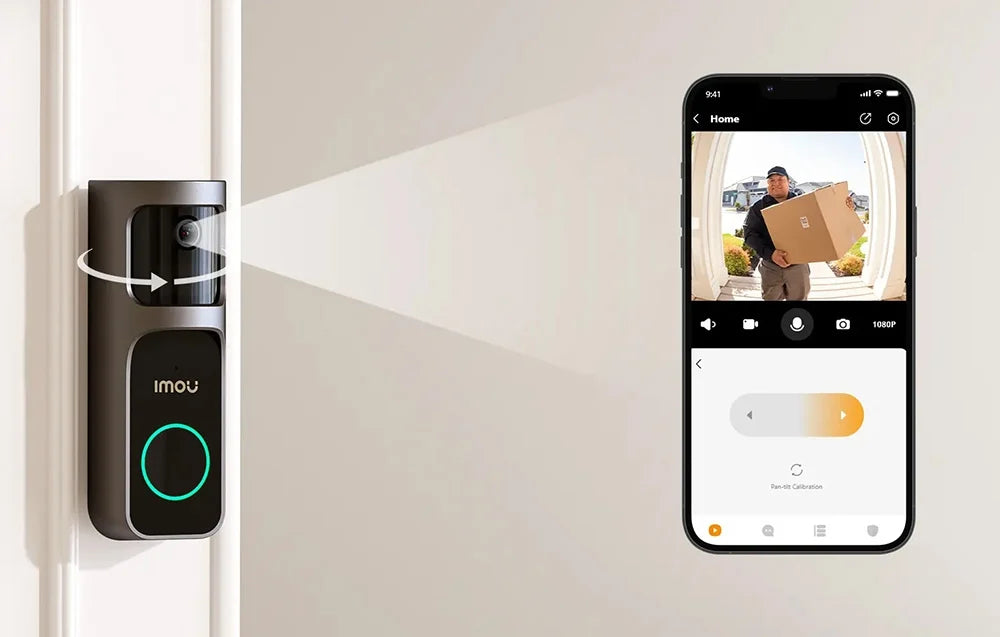

The IMOU Doorbell 2S Kit is a wireless video doorbell with a resolution of 3 MP / 2K (2048 × 1536) resolution, a wide-angle field of view of up to 166° and 30° pan capability, ensuring comprehensive coverage of the area in front of the entrance. The built-in 5000 mAh battery ensures complete freedom from wiring, whilst support for 2.4 GHz Wi-Fi allows constant access to the live feed. The device is equipped with PIR detection, AI functions and two-way communication, ensuring effective monitoring and convenience in everyday use.

Clear images and full control over the entrance

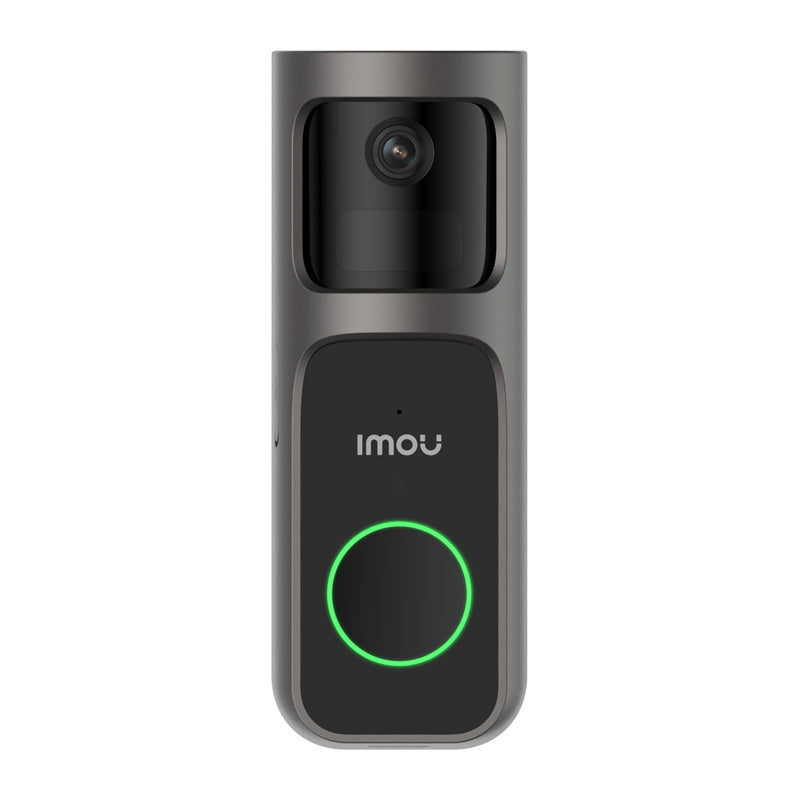

The camera, with a 1/2.8" CMOS sensor and 3 MP resolution, captures detailed images, making it easy to identify people and events at the door. The wide-angle view and pan function minimise blind spots, whilst the 8× digital zoom allows you to zoom in on details. Furthermore, night vision with a range of up to 5 metres ensures a clear image even after dark.

Smart detection and notifications
Thanks to the PIR sensor and features for detecting people and prolonged presence in a given area, you can quickly identify important events. The system automatically sends alerts for motion and doorbells, giving you a real-time overview of what’s happening at your door. What’s more, the power-saving mode extends the device’s battery life.

Real-time communication and privacy protection

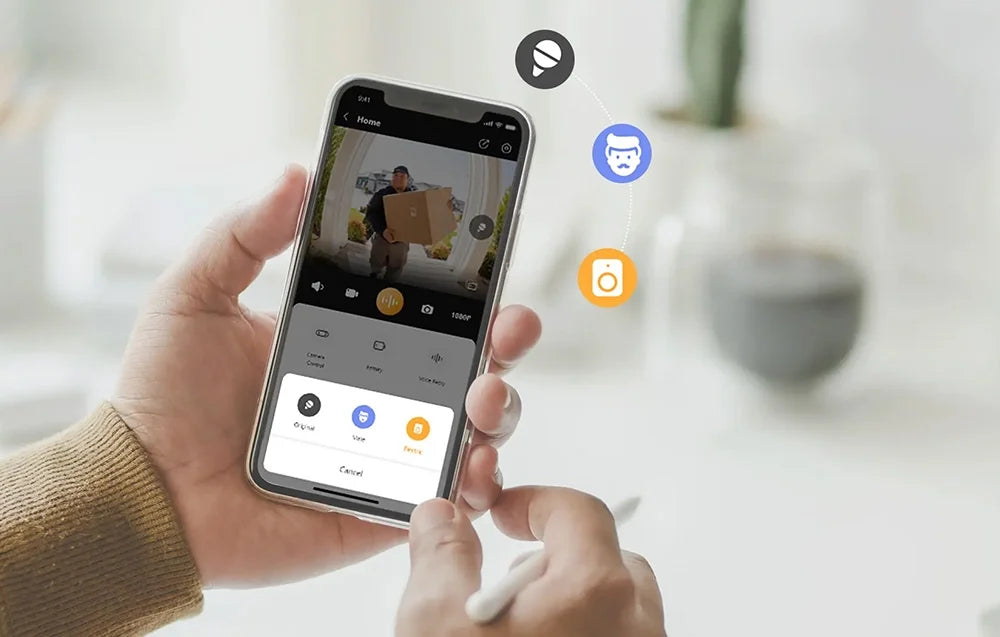

The built-in microphone and speaker enable two-way communication, so you can speak to visitors without having to open the door. The voice-changing and quick-response features enhance privacy, which is particularly useful for children or the elderly.

Stable connection and extended range

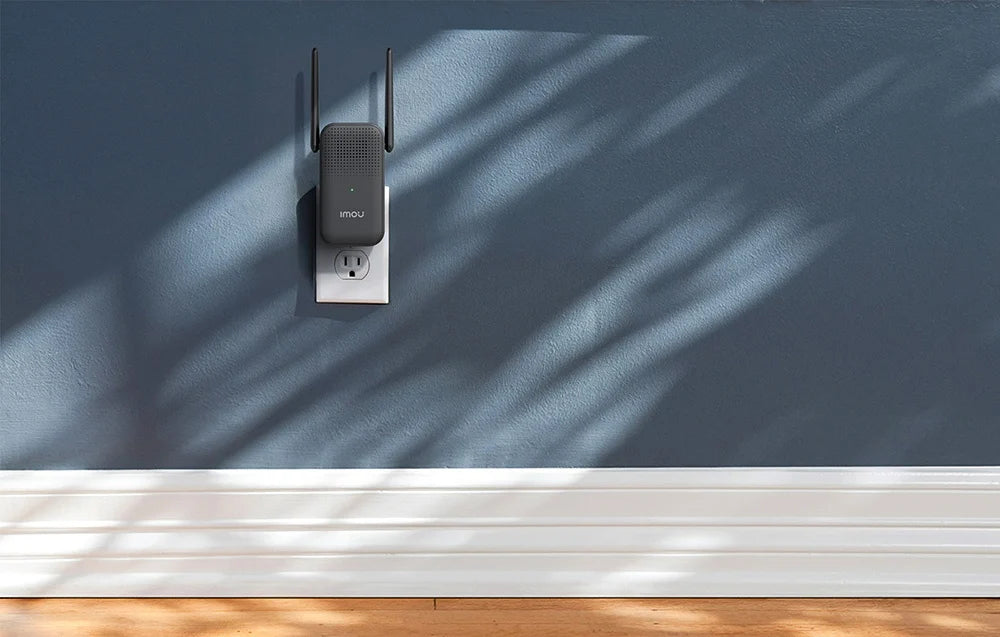

The indoor receiver serves not only as a device for audio notifications, but also as a Wi-Fi signal booster for the doorbell. This ensures a stable connection, and installation requires no additional cabling. The device supports a mobile app for iOS and Android.

Flexible power supply and easy installation

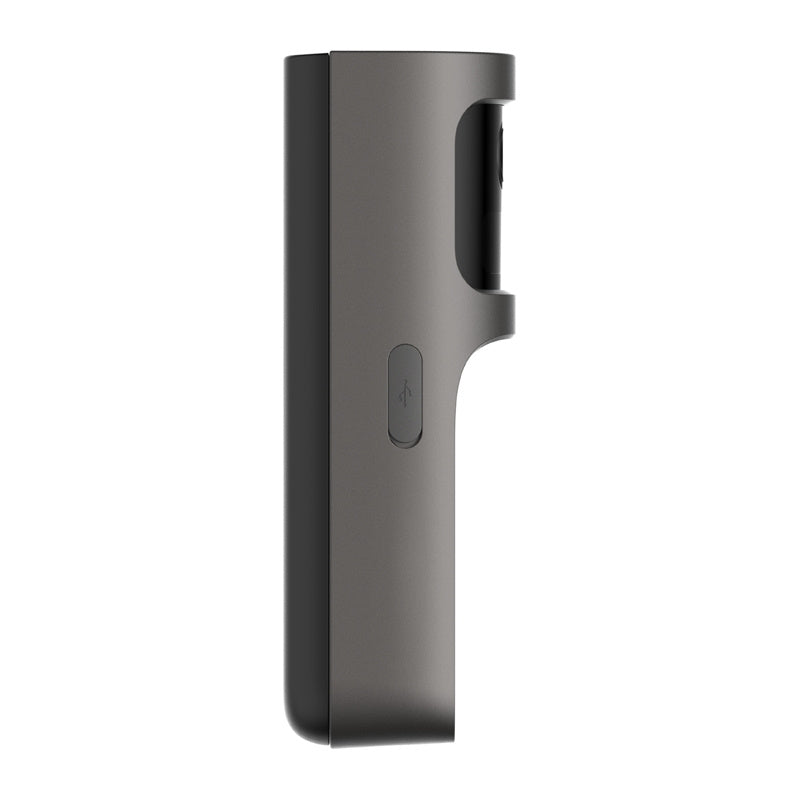

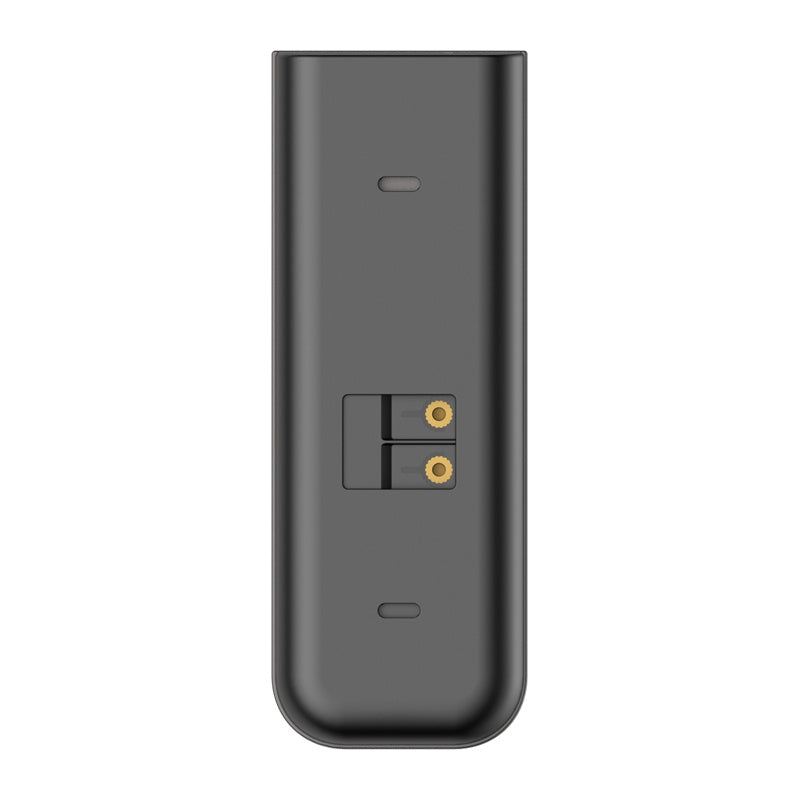

The Doorbell 2S can operate completely wirelessly thanks to its battery, but it also offers an optional 8–24 VAC mains power supply. Charging takes place via a USB-C port (DC 5 V 1 A). Its compact dimensions (150 × 55 × 50.3 mm) and low weight (237.5 g) allow for quick and convenient installation.

Technical specifications:

Charging power supply (video doorbell): DC 5 V 1 A, USB-C port
Optional mains power supply (video doorbell): 8–24 VAC, ?5 VA
Power consumption (video doorbell): Up to 2.27 W
Operating environment (video doorbell): -20 °C to +50 °C, humidity <95 % RH
Charging temperature (video doorbell): 0 °C to +45 °C
Dimensions (video doorbell): 150 × 55 × 50.3 mm
Weight (video doorbell): 237.5 g
Certifications (video doorbell): CE, weatherproof
Power supply (indoor receiver): 100–240 VAC
Power consumption (indoor receiver): Up to 3 W
Operating environment (indoor receiver): -10 °C to +45 °C, humidity <95 % RH
Dimensions (indoor receiver): 95.5 × 65.1 × 30.2 mm
Weight (indoor receiver): 79 g
Certification (indoor receiver): CE
Video doorbell:
Sensor: 1/2.8" Progressive CMOS
Resolution: 3 MP (2048 × 1536)
Night vision: Up to 5 m (16.5 ft)
Lens: Fixed 2.3 mm, 30° rotation
Field of view: 125° (H), 98° (V), 166° (D)
Battery: 5000 mAh
Video and audio:
Video compression: H.265
Frame rate: Up to 15 fps
Audio: Two-way communication
Zoom: 8× digital
Notification management:
Notifications: Ring notifications
Motion detection: PIR
Loitering detection
Power-saving mode
Network:
Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
Indoor receiver function: Acts as a Wi-Fi booster for the doorbell
Mobile app: iOS, Android
Other interfaces:
Video doorbell: Built-in microphone and speaker
Power button
Indoor receiver: Micro SD card slot (up to 512 GB)
Built-in speaker
Reset button

Package contents:

Video doorbell
Indoor receiver
Mounting bracket
USB charging cable
Cable connectors x3
3M adhesive tape x2
Receiver plug
Set of screws
Dowel
Mounting template
Extension cable x2
Connector
Quick start guide
