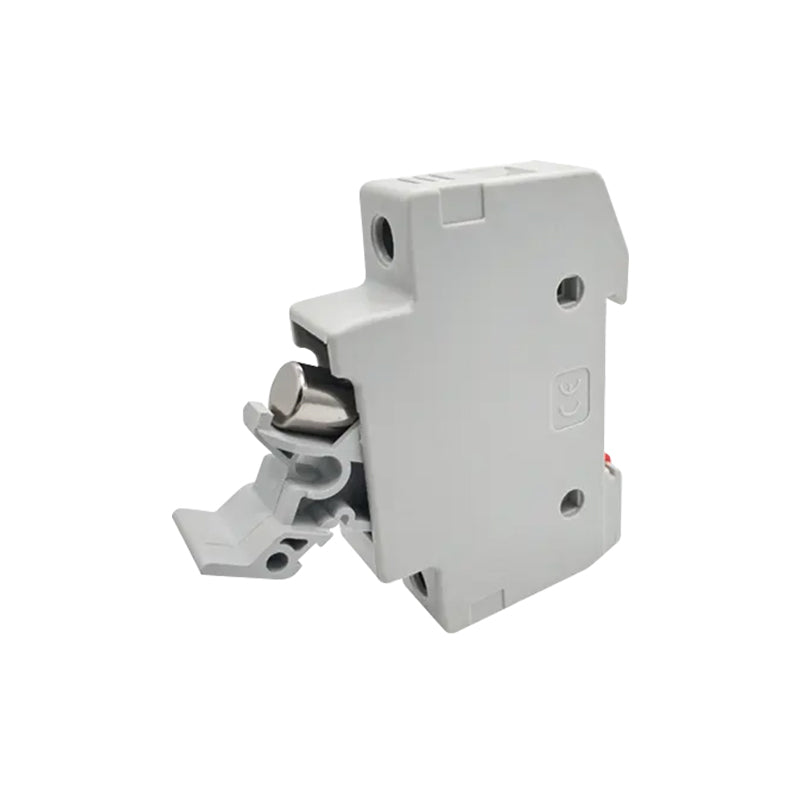

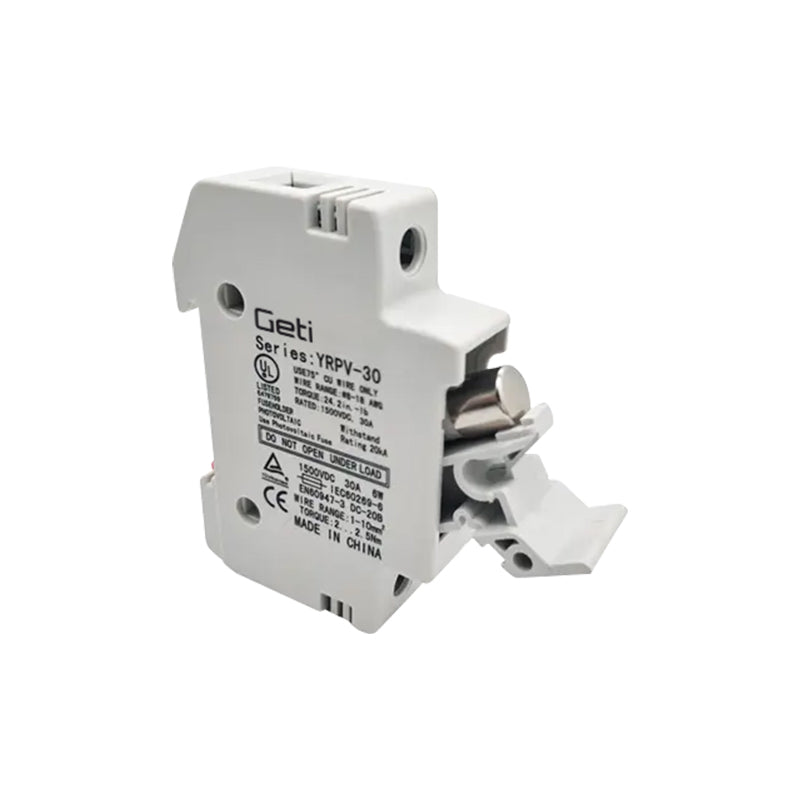

Fuse disconnect switch 12A GETI GF-F01

Single-pole DC fuse switch for short-circuit protection of electrical distributions, especially suitable for photovoltaic systems. The fuse is already embedded in the disconnector housing and can be replaced. Simple mounting on a DIN rail.

Attention! Do not use as a circuit switching element! Do not open the case under load!

- number of poles: 1
- rated voltage: 1000V DC
- rated current: 12 A
- conductor cross-section: 1 - 10 mm2
- short-circuit resistance: 6 kA
- dimensions: 26 x 101.5 x 61 mm
- protection rating: IP20 (for indoor use only)

One fuse is part of the disconnector - it is inserted in the disconnector.
