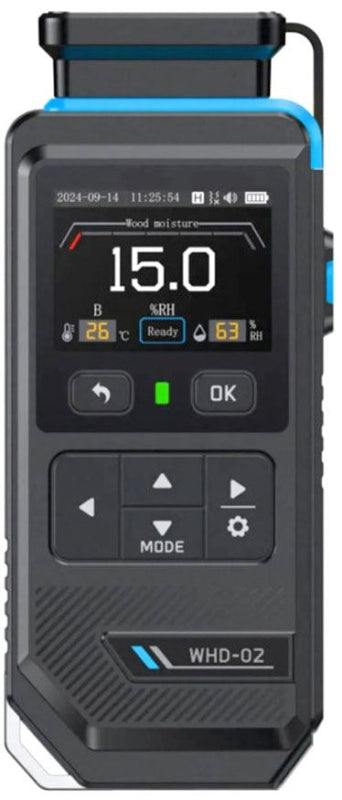

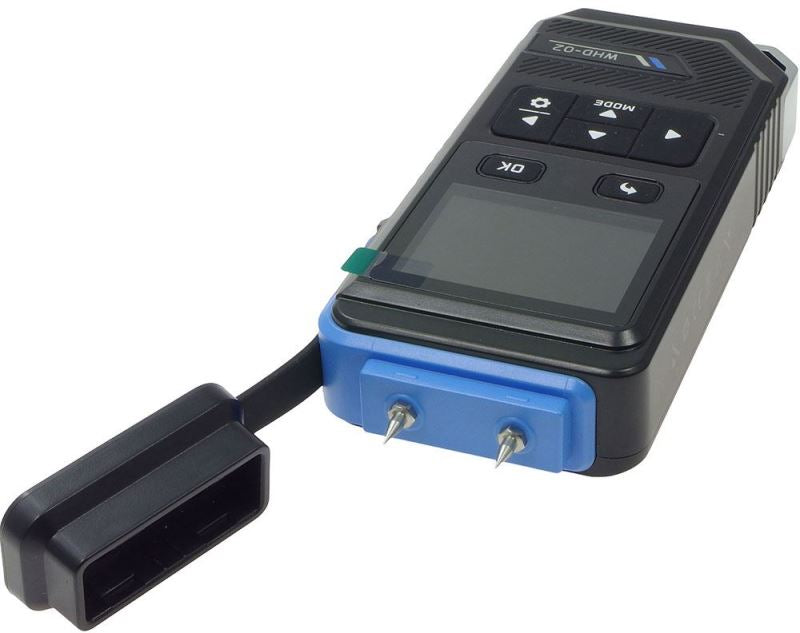

FNIRSI WHD-02 Wood Moisture Meter

FNIRSI WHD-02 Timber Moisture Meter.
The FNIRSI WHD-02 is a professional digital pin-type wood moisture meter with a colour display. This compact device is used to quickly measure the moisture content of wood and building materials, whilst simultaneously monitoring the ambient temperature and relative humidity. It is designed for joiners, floor fitters, construction firms and DIY enthusiasts who need to check the quality of materials or the moisture content of firewood.


Product specifications: - 7 measurement modes: Calibration modes (A–G) tailored to the density of specific types of wood (from soft conifers to hard tropical woods, bamboo or plywood).
- 3-in-1 measurement: Simultaneously detects material moisture content, ambient temperature and relative humidity.
- 2" colour LCD display: Displays measured values in real time, supports both light and dark modes, and plots the data on a clear graph.
- Triple alarm: Alerts you when set limits are exceeded via sound, visual indicators and vibration. - Data memory: Capable of storing up to 30 measurements, including timestamps, for later analysis.
- Power and connectivity: The built-in rechargeable battery charges conveniently via a modern USB-C port. Technical specifications: - Wood moisture measurement range: 0.1% to 55% (with a resolution of 0.1%)
- Sampling rate: approx. 0.5 seconds - Temperature measurement range: -20 °C to +60 °C (accuracy ±1 °C)
- Relative humidity measurement range: 0 to 99 per cent RH (accuracy ±5 per cent RH) - Dimensions: approx. 63 × 28 × 148 mm - Device weight: approx. 185 g
