Endoscope UNI-T UT667

This product comes with a 3-year warranty.

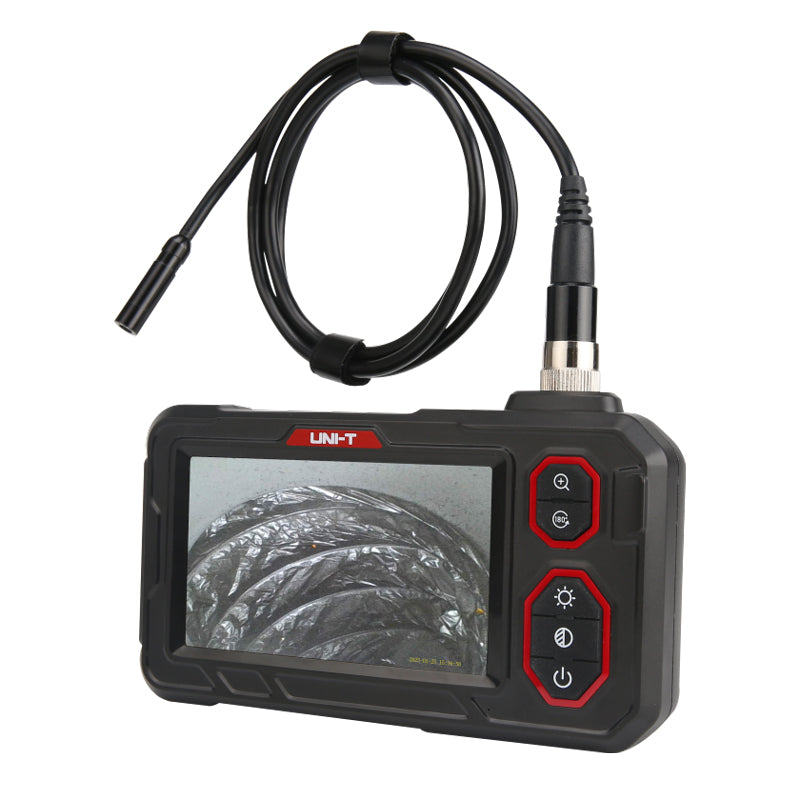

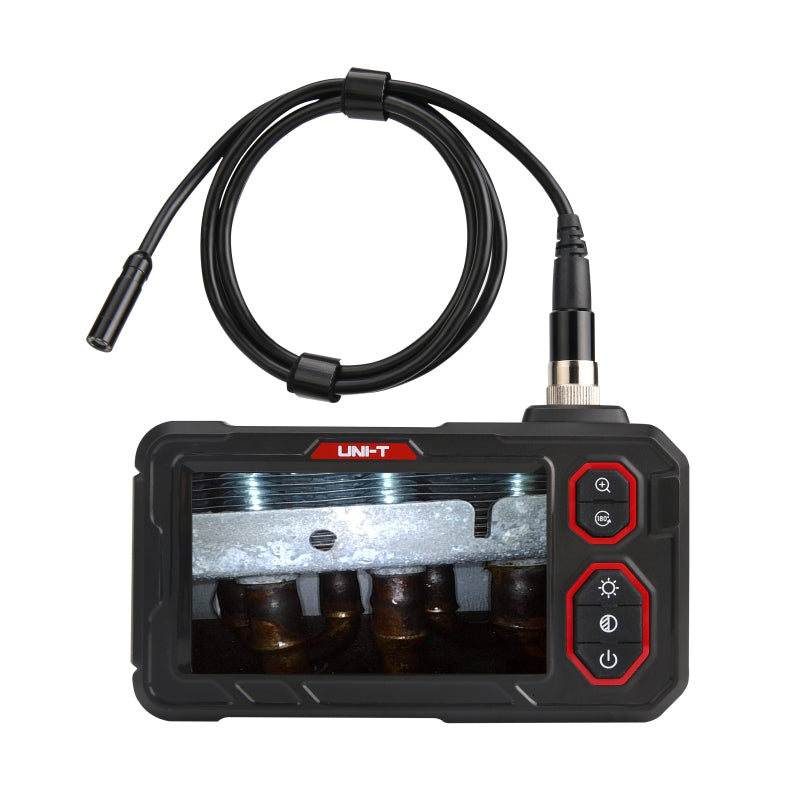

UNI-T UT667 Handheld Industrial Borescope with Single Lens.

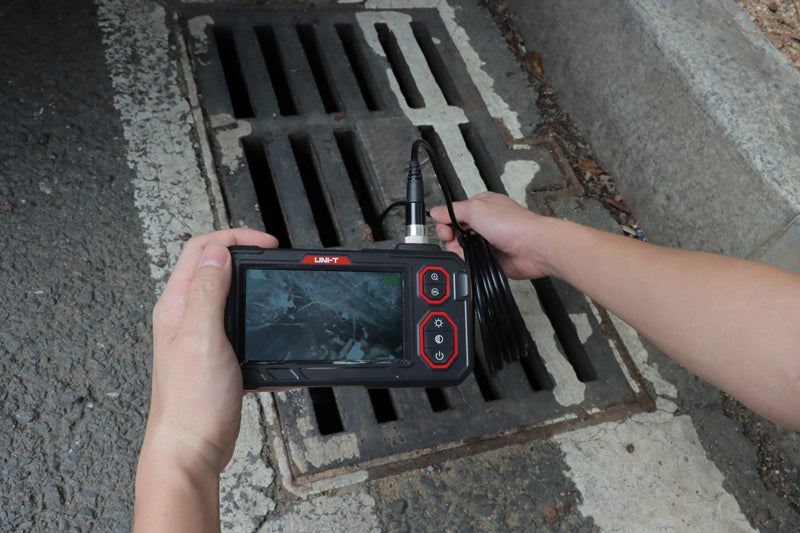

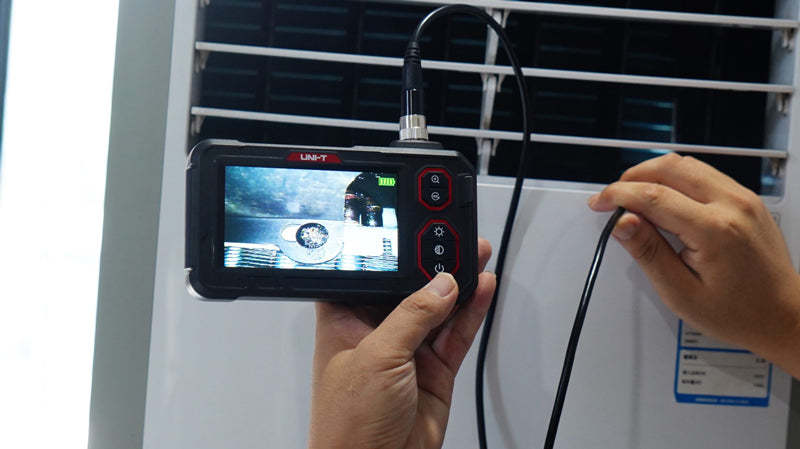

The UT667 series large-area industrial endoscope is professionally designed and manufactured to meet the market requirements for complex environments that are inaccessible to the human eye. It is used to inspect engines, pipes, vents, cavities in building walls, drain pipes and other hard-to-reach places. The camera probe is located at the end of a 1-meter flexible cable, and is equipped with LED lighting, the flexible snake tube can be bent into the desired shape. The user-friendly user interface allows simple and clear operation and ensures easy communication. The probe has an IP67 rating and can be immersed in water. UT667 is an indispensable tool in the automotive and mechanical industries, service stations, workshops, or construction.

Product parameters:

- certification: CE, RoHS
- display: 4.3”
- 8 LEDs with adjustable brightness
- battery: Li-ion
- IP67 camera
- image rotation
- flexible cable length: 1 m

Technical parameters:

- display size: 4,3” IPS LCD
- system language: English
- camera resolution: 1280 x 720 pixels
- basic functions: screen rotation, black and white image, color conversion, image zoom in and out
- flexible cable length: 1 m

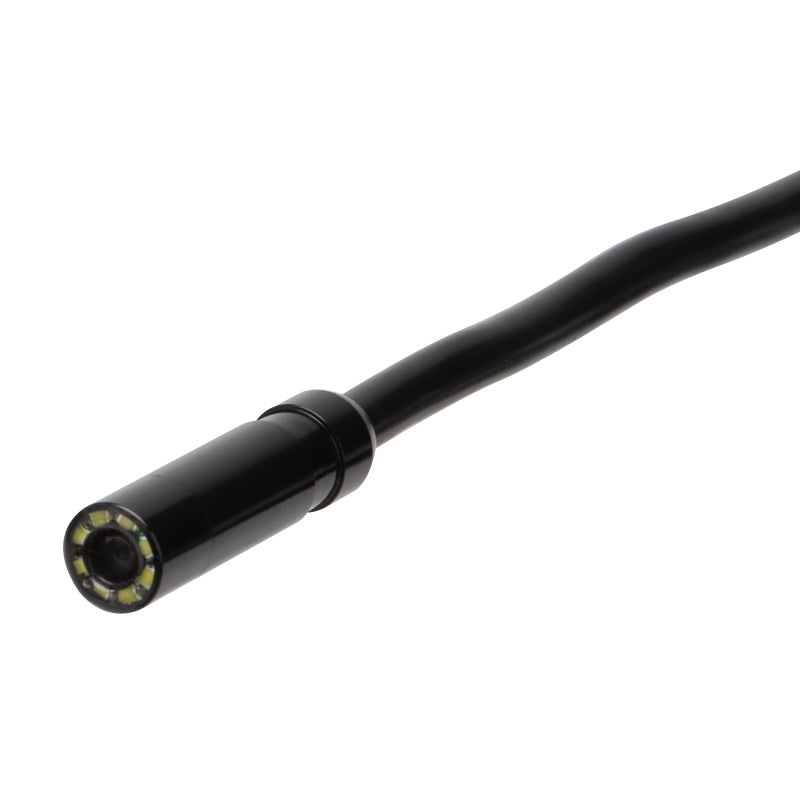

- probe diameter with lens: 8 mm
- light sensor chip: CMOS
- lens viewing angle (FOV): 70°
- lens focus (DOF): 20mm to 100mm
- lighting intensity adjustment: 4 levels + off
- field of view illumination: 8 LEDs
- lens pixels: 300 K
- probe protection: IP67

- power supply: 3.7 V / 2000 mAh battery
- battery life: 5 h

Working conditions:
- lens temperature 0 °C to 80 °C
- working temperature: 0 °C to 45 °C
- humidity: < 90%RH

- device dimensions: 162 mm x 82 mm x 36 mm
- product weight: 190 g

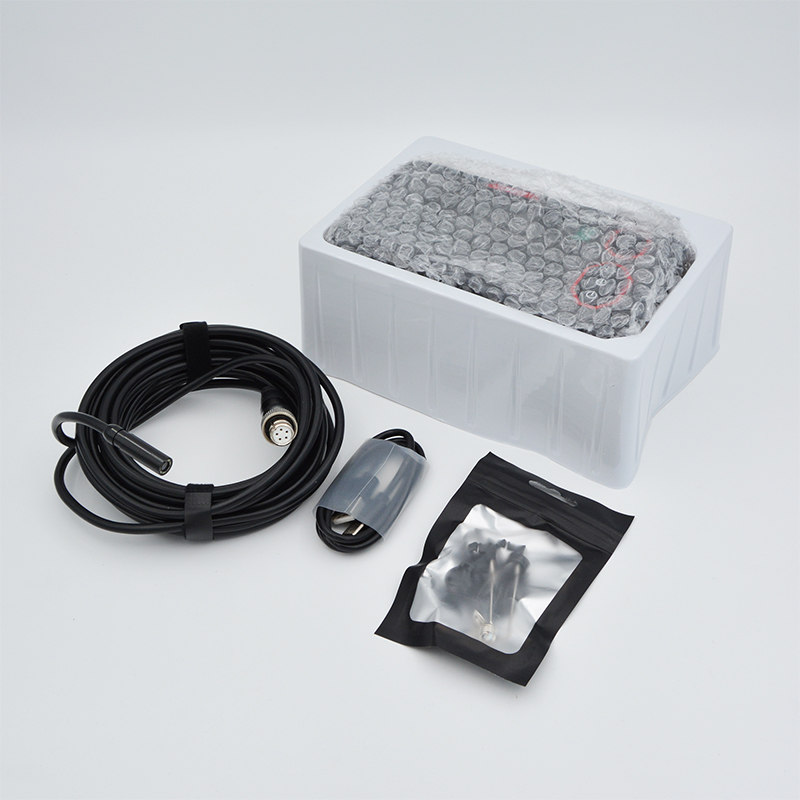

Package contents:

- endoscopic camera UT667: 1 pc

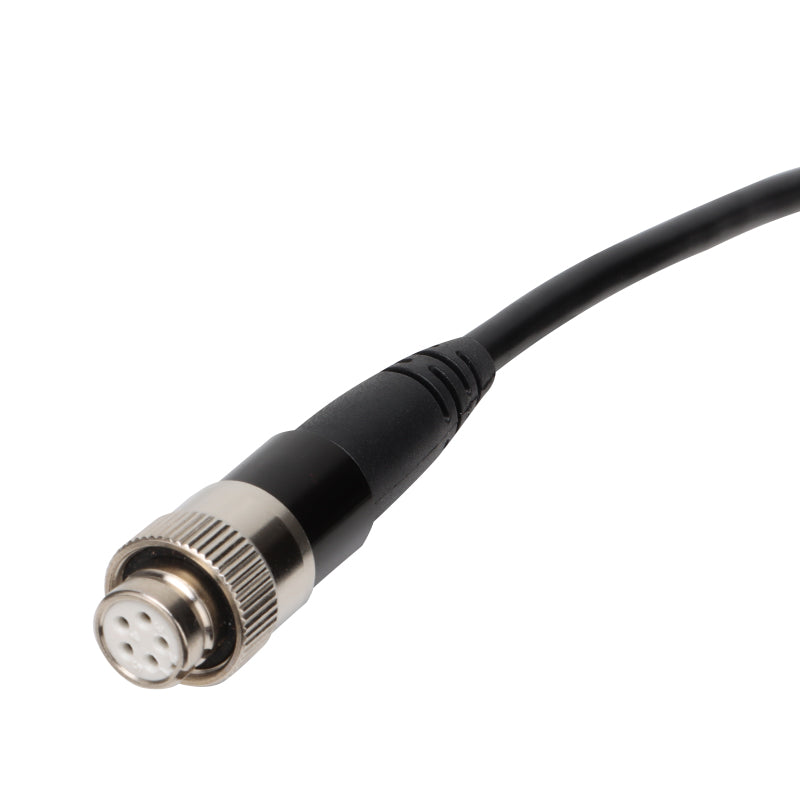

- detachable probe with lens: 1 pc

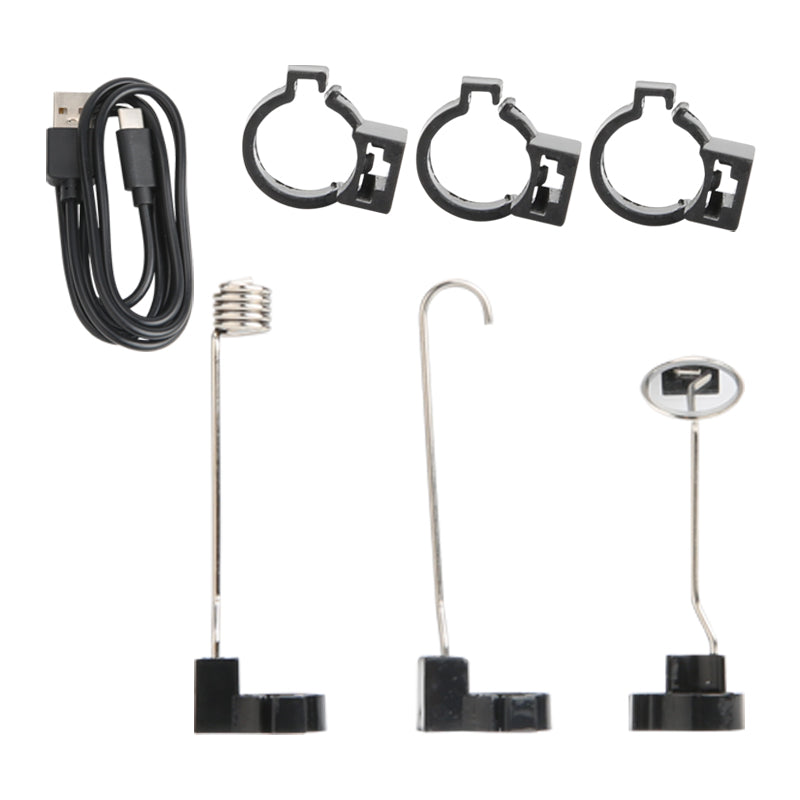

- hook, side mirror, magnet, fixed clip
- user manual

- standard quantity per carton: 20 pcs

MANUFACTURER: UNI-TREND
