Emme Esse 3-TV antenna kit for moderately weak signals
New
Not in stock
Regular price
€64,82
Unit price
/
Unavailable
EMME ESSE | SKU:
14460925
Product description
Emme Esse DVB-T2 Antenna Set (45BS5G Antenna + 83934CE Amplifier)
This complete antenna set, comprising premium components from the leading Italian manufacturer Emme Esse, is designed to ensure reliable and clear reception of DVB-T2 digital television broadcasts, even in areas with a weaker signal.
The set combines a highly directional three-element antenna with high passive gain and an adjustable in-home amplifier. It ensures trouble-free reception without dropouts or picture freezing, even when the signal is distributed to multiple televisions in a family home or block of flats.
Key benefits of the kit: Ideal for medium and long-range reception: Optimal performance at distances of 20 to 60 km from the transmitter.
High passive antenna gain: The three-element antenna design (up to 17.5 dBi) captures even very weak useful signals with high clarity and minimal noise.
Dual protection against 5G interference: Both the antenna and the amplifier feature integrated filters that effectively cut off frequencies above 694 MHz and prevent interference from 5G/LTE mobile transmitters.
Smooth power control: The amplifier allows you to precisely adjust the gain level to prevent overdriving the TV tuner.
Option to add FM/DAB radio: The amplifier has a separate radio input (VHF/FM), allowing a radio signal to be fed into the same coaxial cable. What conditions is this set suitable for?
Area of use: Suitable for villages, holiday home areas and detached houses situated 20–60 km from the main transmitter.

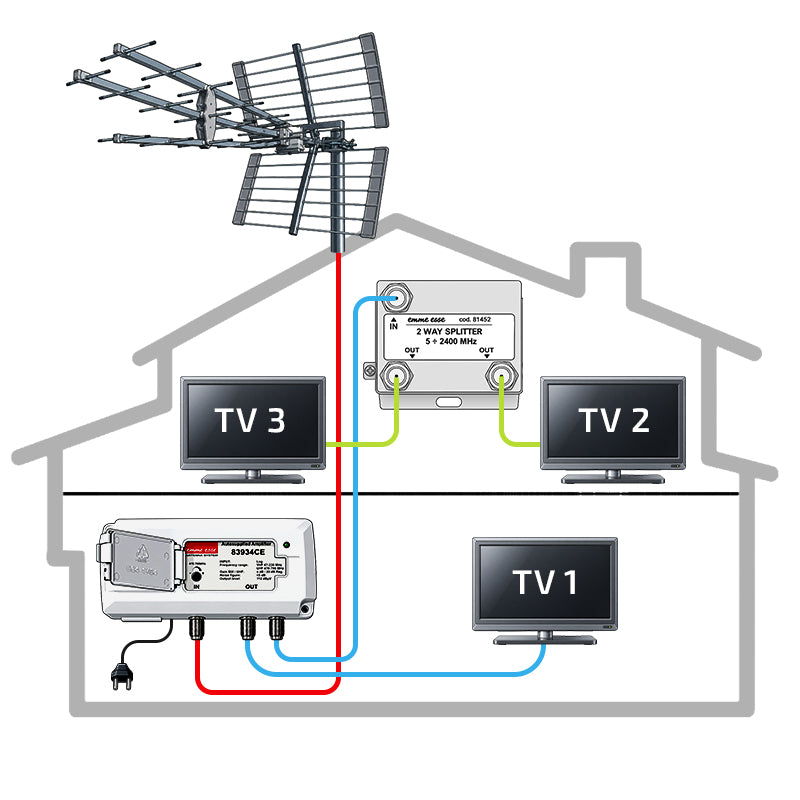

In-house distribution: The amplifier reliably compensates for signal loss over long coaxial cable runs and supports signal distribution to 3 TV sockets. Installation: The antenna is mounted on an outdoor mast or bracket. The amplifier is designed for indoor installation (attic, hallway, near the TV) and plugs into a standard 230 V socket. Technical specifications:
1. Emme Esse 45BS5G outdoor antenna (Series 45) - Type: Directional three-element DVB-T2 antenna - Frequency range: 470–694 MHz (K21–K48)
- Passive gain: 11.5–17.5 dBi - Front-to-back ratio: 28 dB - Integrated filter: 5G / LTE Free - Connector: F-connector
2. Emme Esse 83934CE home signal booster - Number of inputs: 2× (1× VHF/FM + 1× UHF) - Gain: Adjustable (up to 30 dB in the UHF band)
- UHF frequency range: 470–694 MHz (K21–K48) - Power supply: Integrated 230 V AC / 50 Hz power supply
- Installation: Indoor (wall-mounted or mounted on a distribution box) Package contents: 1× Emme Esse 45BS5G outdoor antenna (including mounting brackets for a mast)
1× Emme Esse 83934CE in-home amplifier with mains power cable 1× Splitter for 2 x TVs 7× 6.8 mm F-type connectors
