ELECTROMALT OVAL OVA1006W switch, white

A single switch is a fundamental component of an electrical installation. It is the simplest way to activate a circuit. It is used to switch a single light source on and off.

The timeless look and style of the OVA1006W switch in white, set within a round panel, make it the ideal switch for any interior. Frames for OVAL switches
The OVAL range of electrical fittings is sold without frames. Our range includes simple glass and plastic frames in black and white, as well as multi-frame options with a choice of materials and colours. Installation of OVAL series switches
All products in the OVAL range are designed for quick and easy flush-mounted installation. OVAL switches have an IP20 protection rating and are suitable for installation in dry, non-damp rooms, such as bedrooms, living rooms or hallways.

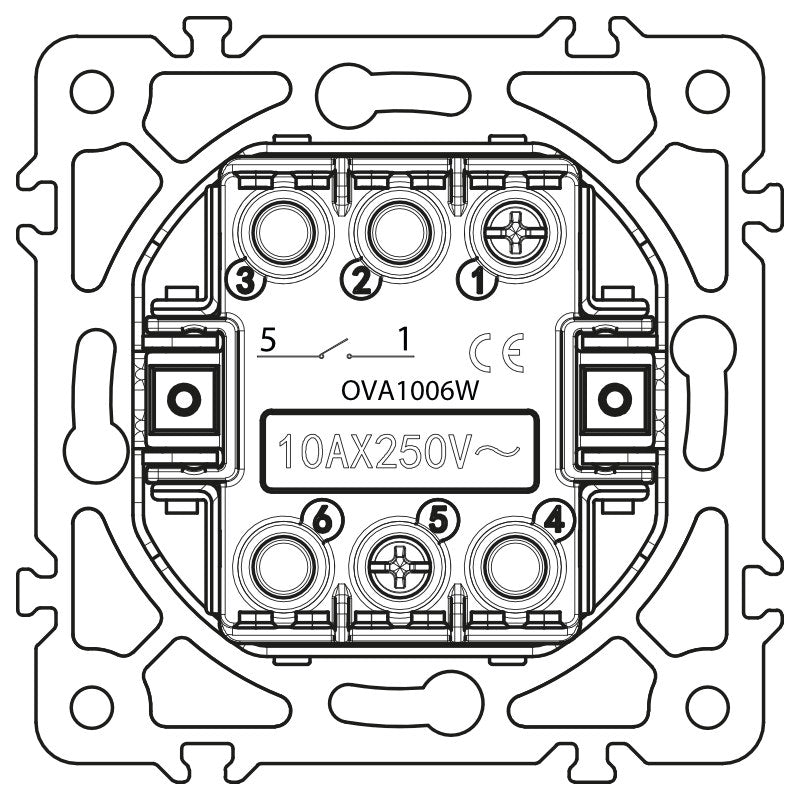

To install the switches, start by removing the button cover and the inner frame of the switch by prising them out. Then connect the wires as appropriate and secure them with a screw terminal.

The next step is to fix the switch using screws to a standard 70 mm diameter installation box or to plasterboard using fixings, by tightening the internal screws.

Finally, simply install the frame by positioning it and pressing it onto the inner frame, then complete the installation by pressing the button cover into place. Technical specifications:

Type: single switch Number of buttons: 1 Shape: round Material: plastic
Installation: flush-mounted Dimensions: 7.5 x 7.5 cm Switch diameter: 51 mm Protection rating: IP20 Colour: white
