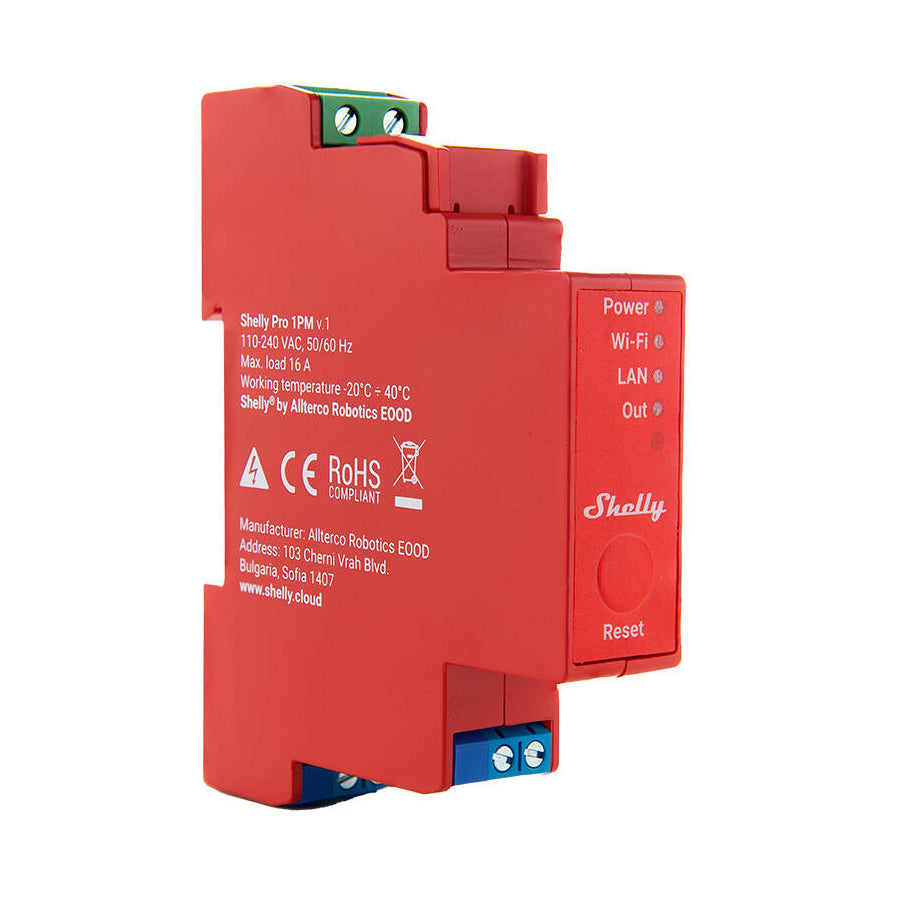

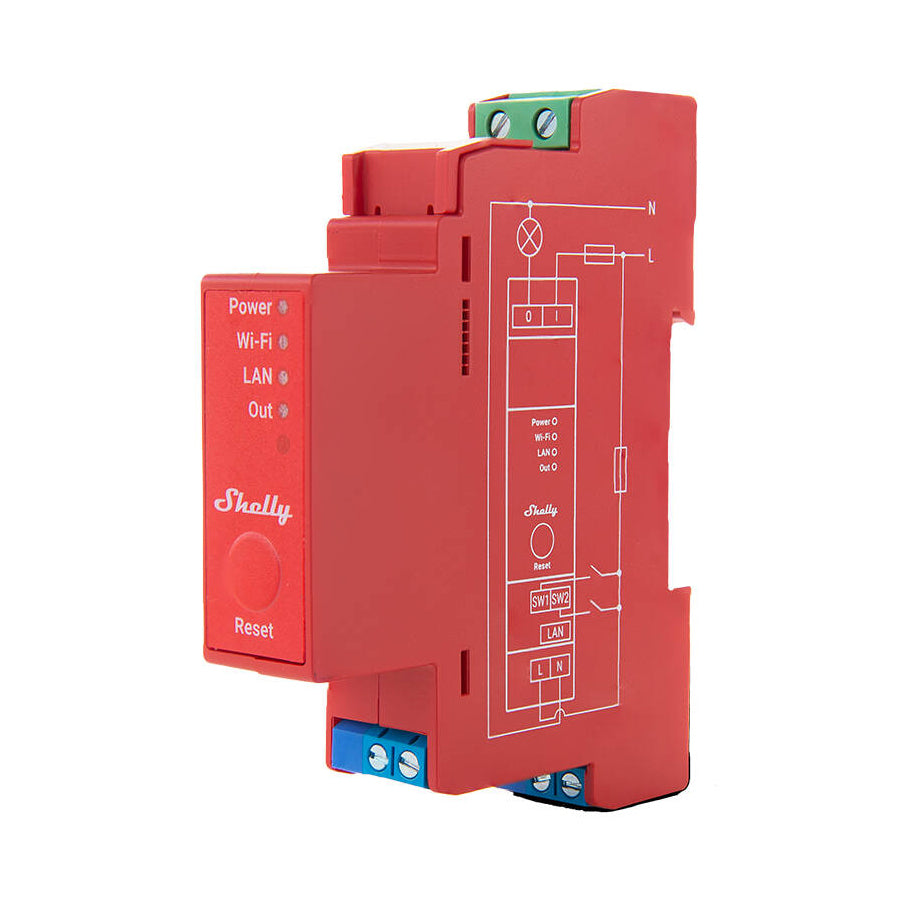

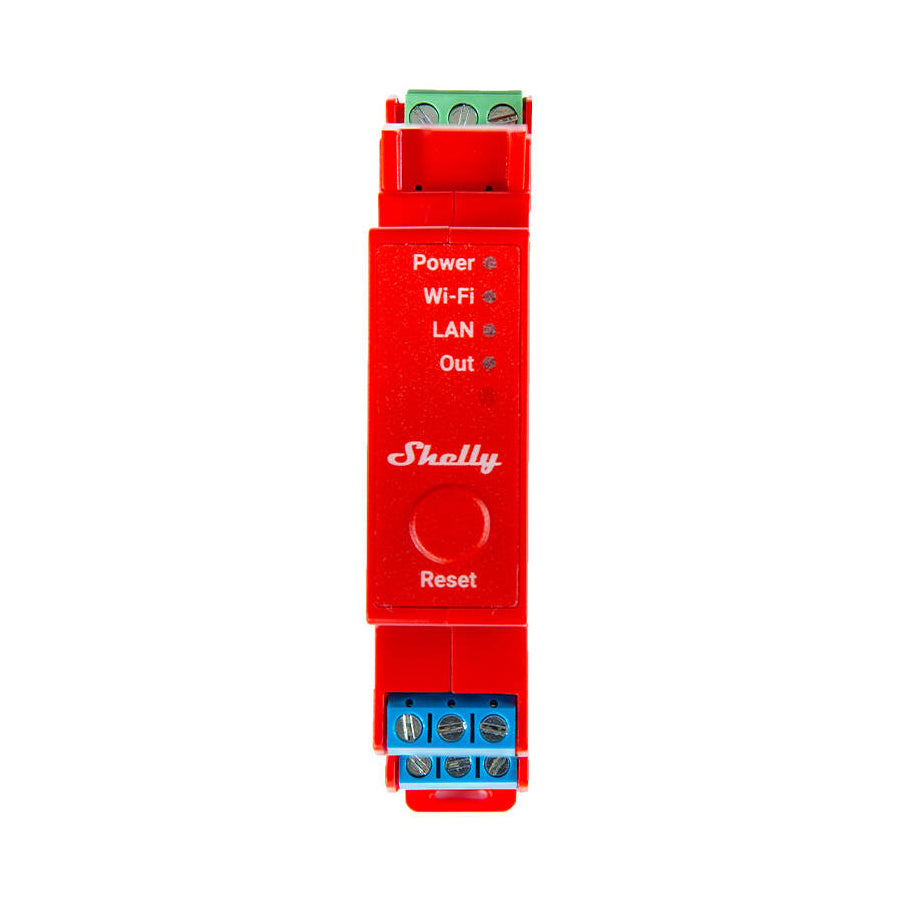

DIN rail relay SHELLY PRO 1PM Wi-Fi LAN
Intelligent DIN rail relay with power measurement - 1 channel, max. load 16A, built-in wattmeter for monitoring energy consumption, WiFi connectivity, LAN (RJ45) and Bluetooth, compatibility with Google Assistant, Amazon Alexa and Samsung SmartThings, support for automation scripts, power supply 110–240VAC, DIN rail mounting
In stock 2 pcs
Expected shipping:
23.09.2026
Regular price
€73,51
Unit price
/
Unavailable
SHELLY | SKU:
07750226
Product description
The Shelly Pro 1PM is a single channel intelligent DIN rail relay capable of controlling devices with a maximum load of 16A. It comes with a built-in power meter that allows users to accurately monitor the power consumption of automated lighting or other equipment. With support for WiFi, LAN and Bluetooth, it is well suited for home and building automation. It also integrates with popular voice assistants like Google Assistant, Samsung SmartThings and Amazon Alexa, making controlling your home even more convenient. In addition, scripting features allow you to create custom automation scenes based on various events, such as weather forecasts.
Many options
Get full control of your home with Shelly Pro 1PM. This product is versatile and allows accurate monitoring of energy consumption and remote control of various devices. You can use it to control your hot tub remotely while monitoring energy consumption, or implement floor heating automation to prevent wasted energy. Shelly Pro 1PM is the key to efficient and intelligent home automation.
Technical parameters:
Supply voltage AC: 110 - 240 V
Power consumption: < 3 W
Max AC switching voltage: 240 V
Max AC switching current: 16 A
AC voltmeter: Yes
AC Ammeter: Yes
Internal temperature sensor: Yes
Wi-Fi protocol: 802.11 b/g/n
Wi-Fi range: Up to 30 m indoors and up to 50 m outdoors
Bluetooth protocol: 4.2
Bluetooth range: Up to 10 m indoors and up to 30 m outdoors
processor: ESP32-D0WDQ6
Flash memory: 8 MB
Dimensions: 94 x 19 x 69 mm ±0.5 mm
Mounting: DIN rail
Material: Plastic
Ambient operating temperature: From -20°C to 40°C
Air humidity: From 30% to 70% RH
