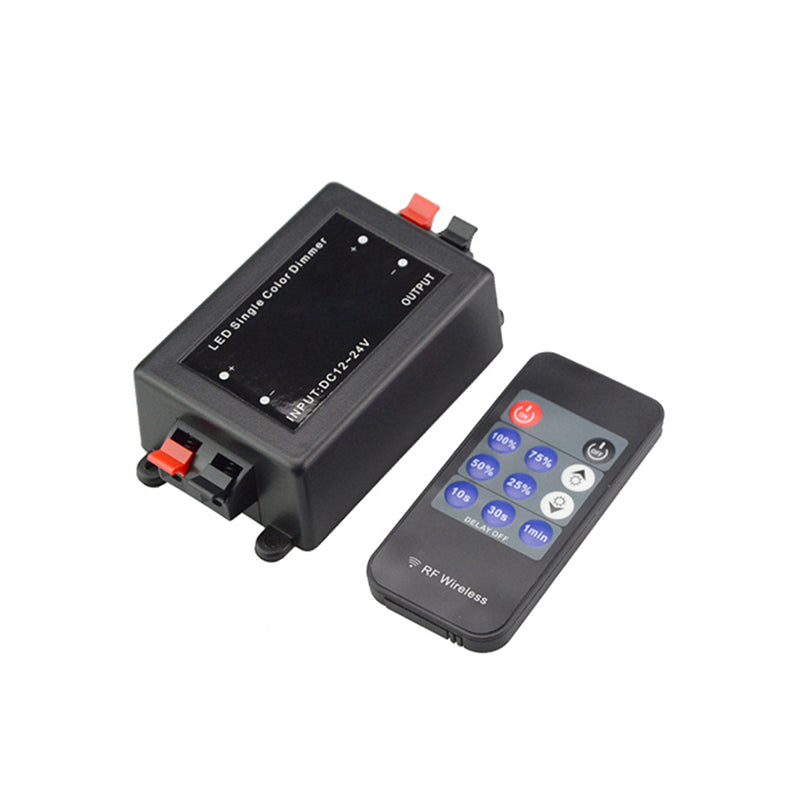

Dimmer for led strip with delay + remote control
RF dimmer for LED strips with delayed switch-off - wireless RF control without the need for a direct line of sight, smooth brightness control, quick preset brightness levels 25/50/75/100 %, delayed switch-off function after 10 s, 30 s or 1 min, option of pairing several remote controls, compatible with single-colour LED strips, remote control included, suitable for home and commercial installations
In stock 4 pcs
Expected shipping:
21.09.2026
Regular price
€6,72
Unit price
/
Unavailable
TIPA | SKU:
04151442
Product description
The PRF dimmer for monochrome LED strips allows convenient wireless brightness control via remote control. It offers infinitely variable light intensity control as well as quick adjustments using preset brightness levels.
With the handy delay-off function, you can set the light to automatically turn off after 10 seconds, 30 seconds or 1 minute. The ideal solution for domestic and commercial installations. The dimmer is compatible with most single-colour LED strips and thanks to RF technology allows reliable control despite obstacles. The ability to pair multiple devices provides installation flexibility.
Key benefits:
Wireless RF control (no direct line of sight required)
Smooth dimming of brightness
Quick brightness selections: 25%, 50%, 75%, 100%
Delayed shutdown function (10 s / 30 s / 1 min)
Multiple controllers or multiple dimmers can be paired
Simple wiring

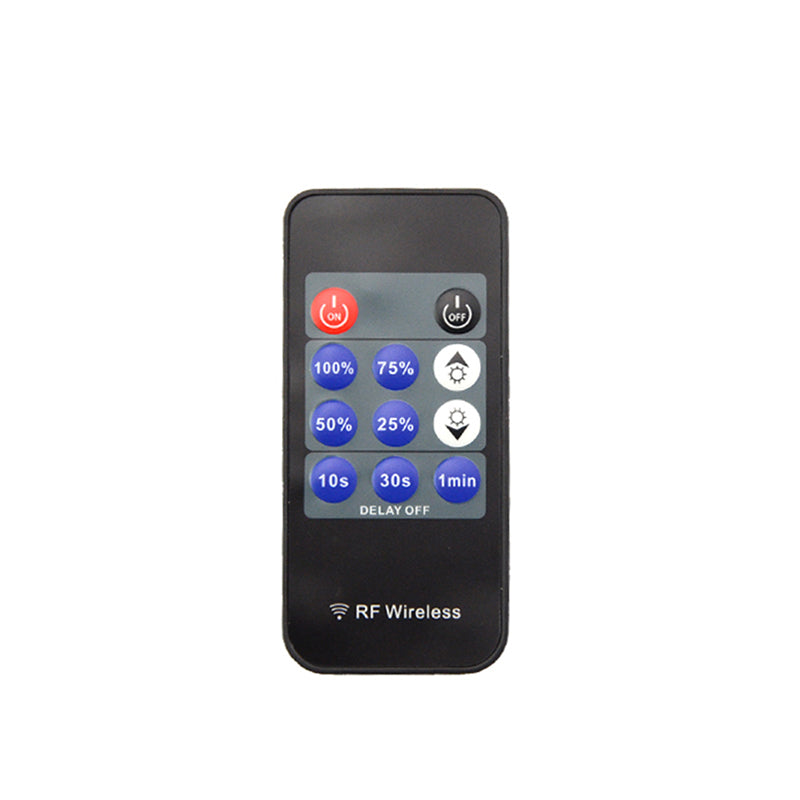

Controller functions:
On/Off
Increase/decrease brightness
Direct brightness level selection (25-100%)
Automatic switch off after a set time
Technical parameters:
Power supply voltage: DC 5-24 V.
Output: 1 channel (common anode)
Maximum output current: < 8 A
Power:
5 V: max. 40 W
12 V: max. 96 W
24 V: max. 192 W
Operating temperature: -20 °C to +60 °C

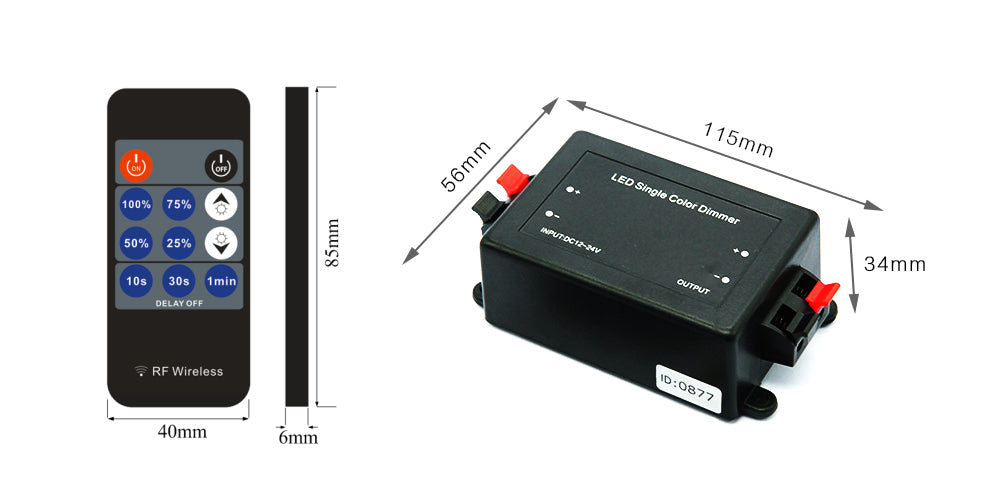

Unit dimensions: 115 × 56 × 34 mm
Weight: approx. 80 g
Note: Observe the correct supply voltage and wiring. Overloading or incorrect wiring can damage the device.
With the handy delay-off function, you can set the light to automatically turn off after 10 seconds, 30 seconds or 1 minute. The ideal solution for domestic and commercial installations. The dimmer is compatible with most single-colour LED strips and thanks to RF technology allows reliable control despite obstacles. The ability to pair multiple devices provides installation flexibility.
Key benefits:
Wireless RF control (no direct line of sight required)
Smooth dimming of brightness
Quick brightness selections: 25%, 50%, 75%, 100%
Delayed shutdown function (10 s / 30 s / 1 min)
Multiple controllers or multiple dimmers can be paired
Simple wiring
Controller functions:
On/Off
Increase/decrease brightness
Direct brightness level selection (25-100%)
Automatic switch off after a set time
Technical parameters:
Power supply voltage: DC 5-24 V.
Output: 1 channel (common anode)
Maximum output current: < 8 A
Power:
5 V: max. 40 W
12 V: max. 96 W
24 V: max. 192 W
Operating temperature: -20 °C to +60 °C
Unit dimensions: 115 × 56 × 34 mm
Weight: approx. 80 g
Note: Observe the correct supply voltage and wiring. Overloading or incorrect wiring can damage the device.
