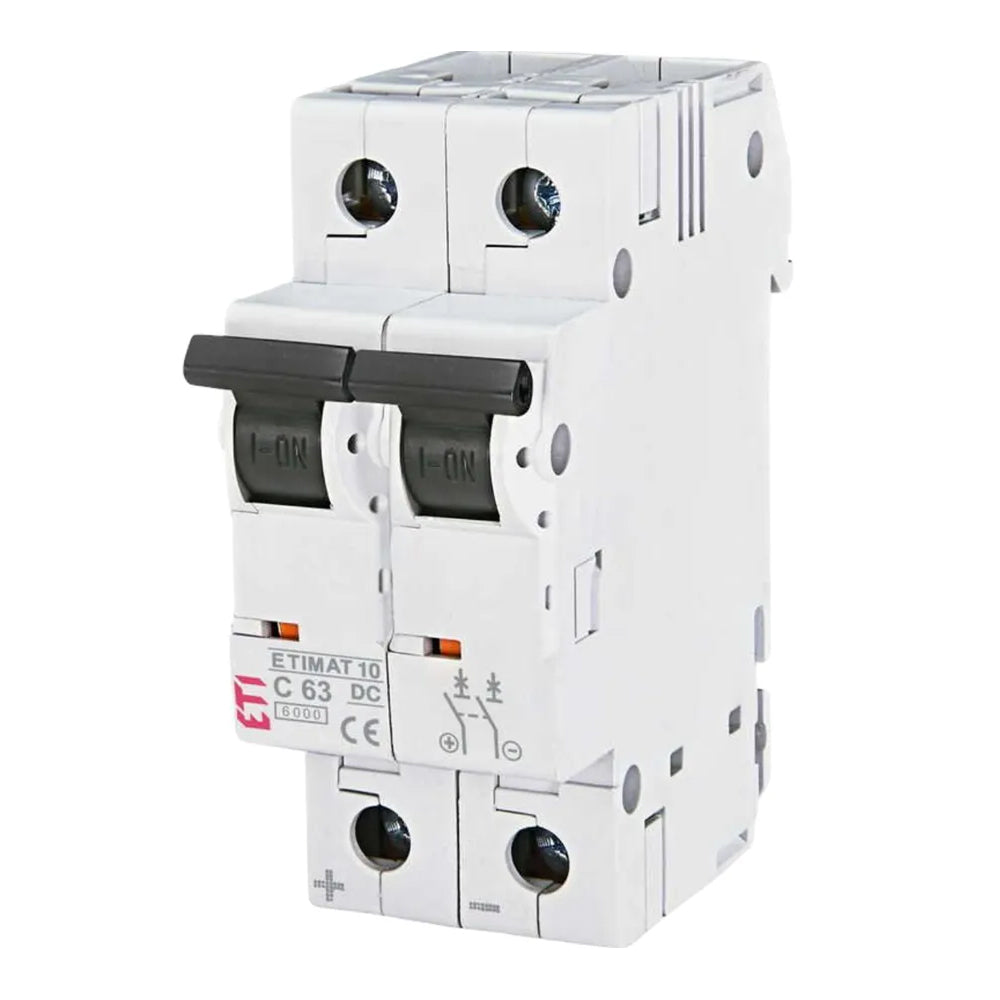

DC circuit breaker 63A two-pole ETIMAT

DC 2-pole circuit breaker with rated current 63A, short-circuit resistance 6kA. It is used to protect cables against overload and short circuit.

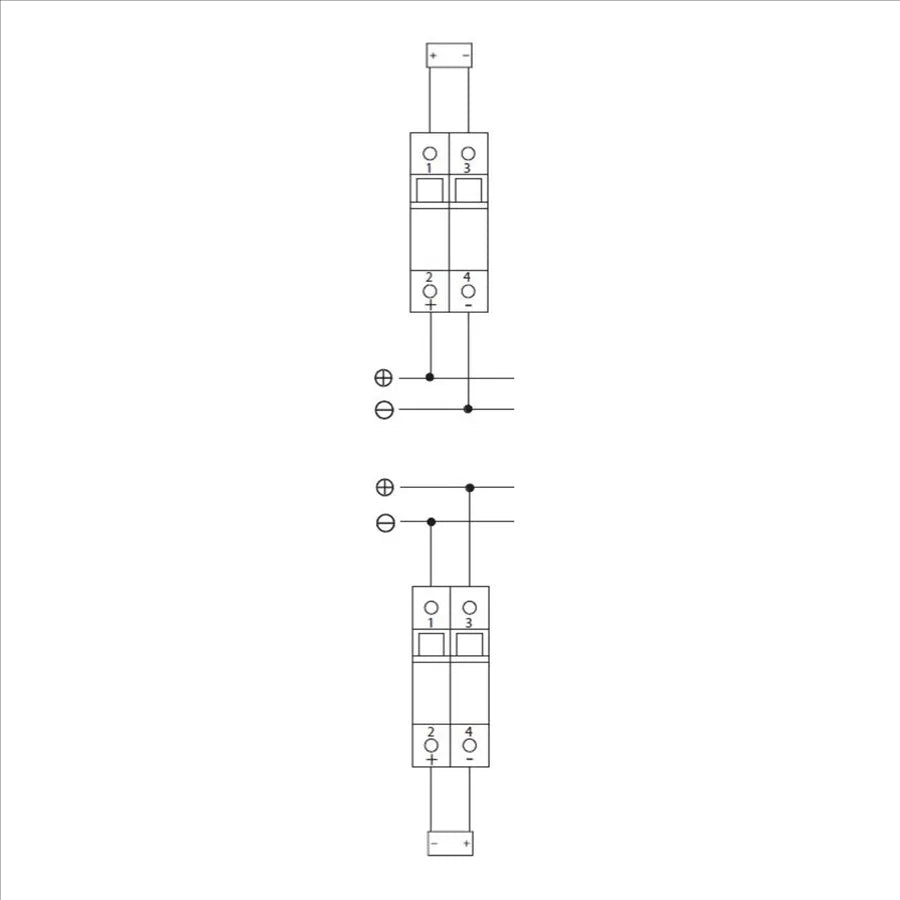

Important notice - during installation, it is important to always observe the polarity of the device.


Technical parameters:

- nominal working voltage DC: 220 V/ 440 V d.c.
- short-circuit resistance: 6 kA
- switching characteristic: C
- rated current: 63 A
- number of poles: 2
- terminals: 1-25 mm2, max. 2.5Nm
- degree of protection: IP20
- mounting position: any
- weight: 240g
- standards: IEC 60898, EN 60898, DIN VDE 0641
- manufacturer: ETI Elektroelement
