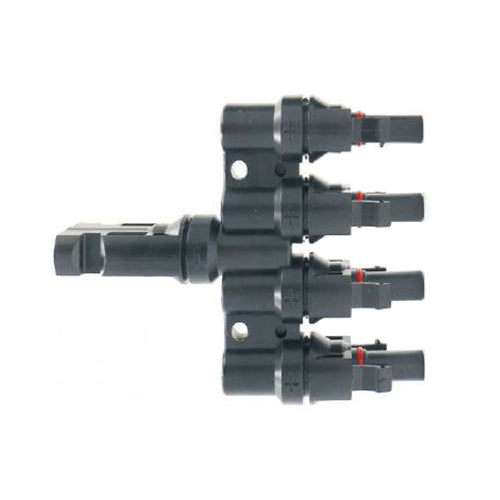

Connector for solar panels MC4 split 1x connector, 4x socket
MC4 branch connector - configuration 1× male and 4× female, operating voltage up to 1000V, current up to 30A with 6 mm2 cable, IP67 rating, contact resistance <0.5m?, operating temperature -40 to +90°C, parallel connection of multiple solar panels in photovoltaic systems
In stock 15 pcs
Expected shipping:
29.09.2026
Regular price
€5,70
Unit price
/
Unavailable
HADEX | SKU:
03363709
Product description
Splitter MC-4, 1x connector, 4x socket /MC4/

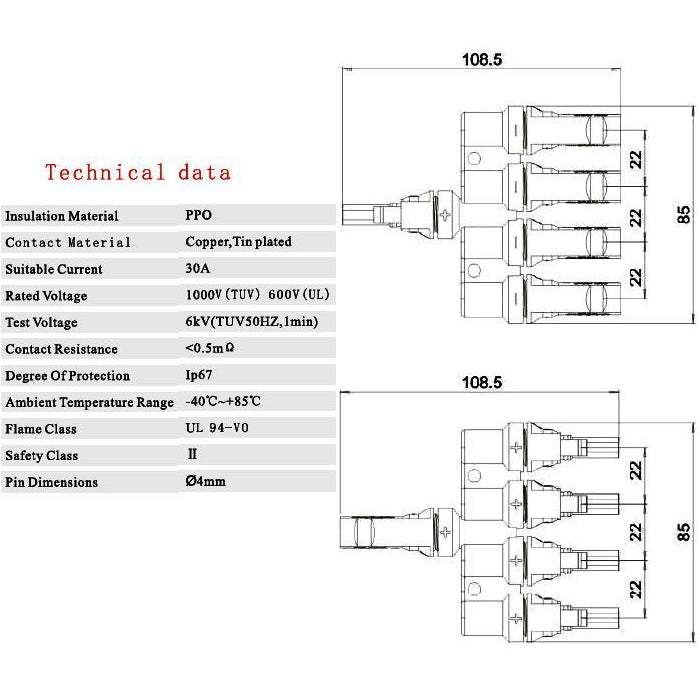

Technical parameters:
- operating voltage: <1000V
- current: <30A (cable 6mm2)
- operating temperature: -40°~90°C
- protection: IP67
- transition resistance: <0.5mOhm
Technical parameters:
- operating voltage: <1000V
- current: <30A (cable 6mm2)
- operating temperature: -40°~90°C
- protection: IP67
- transition resistance: <0.5mOhm
