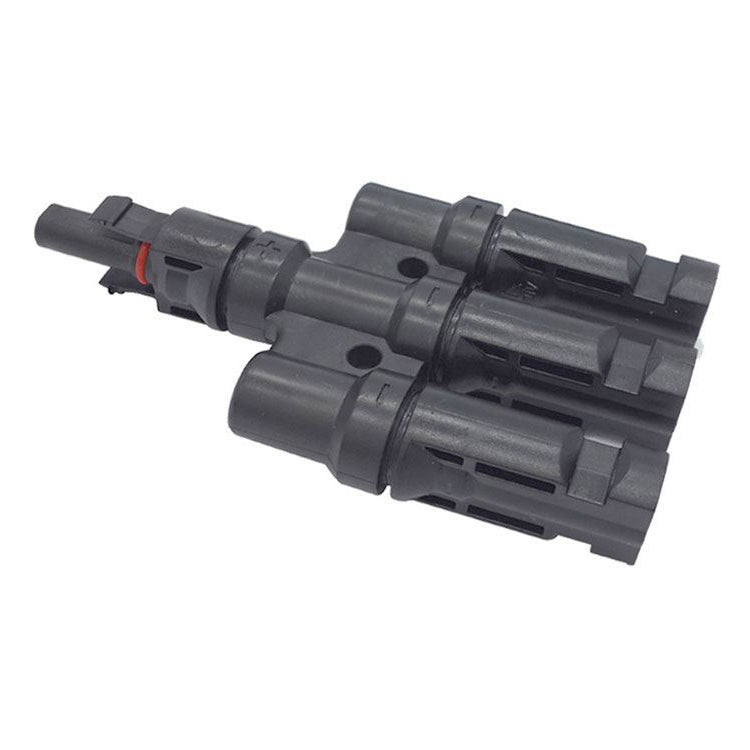

Connector for solar panels MC4 branch 1x socket, 3x connector

MC4 branch connector - configuration 1× female and 3× male, operating voltage up to 1000V, current up to 30A with 6 mm2 cable, IP67 rating, contact resistance <0.5m?, operating temperature -40 to +90°C, parallel connection of multiple solar panels in photovoltaic systems

Show full description
In stock 3 pcs
Expected shipping: 21.09.2026
€3,63
HADEX  |  SKU: 03360270  |  Barcode: 8595118892606
Log in for VAT-free pricing

Product description

MC4 splitter, 1x socket, 3x connector. The splitter with connectors used on the solar panels is used to connect multiple solar panels.

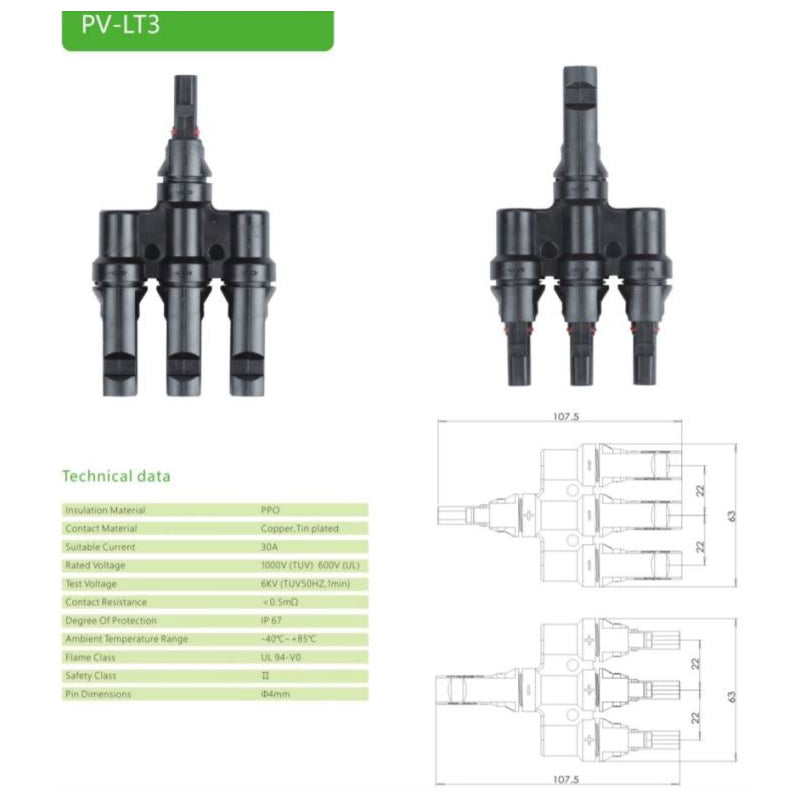

Technical parameters:

- operating voltage: <1000V
- current: <30A (cable 6mm2)
- operating temperature: -40 ° ~ 90 ° C
- protection: IP67
- transient resistance: <0.5mOhm

Product parameters

Příslušenství

  • Kleště lisovací TIPA LY-2546B na konektory MC4 Kleště lisovací TIPA LY-2546B na konektory MC4

    TIPA

    Crimping pliers TIPA LY-2546B for MC4 connectors

    Will be restocked
    Expected shipping: 26.02.2027 at our place
    €17,07
    View details
  • Konektor pro solární panely MC4 GETI, 1000V female Konektor pro solární panely MC4 GETI, 1000V female

    GETI

    Connectors for solar panels MC4 GETI, 1000V female

    In stock more than 50 pcs
    Expected shipping: 21.09.2026
    €0,73
    View details
  • Konektor pro solární panely MC4 GETI, 1000V male Konektor pro solární panely MC4 GETI, 1000V male

    GETI

    Connector for solar panels MC4 GETI, 1000V male

    In stock more than 50 pcs
    Expected shipping: 21.09.2026
    €0,73
    View details
