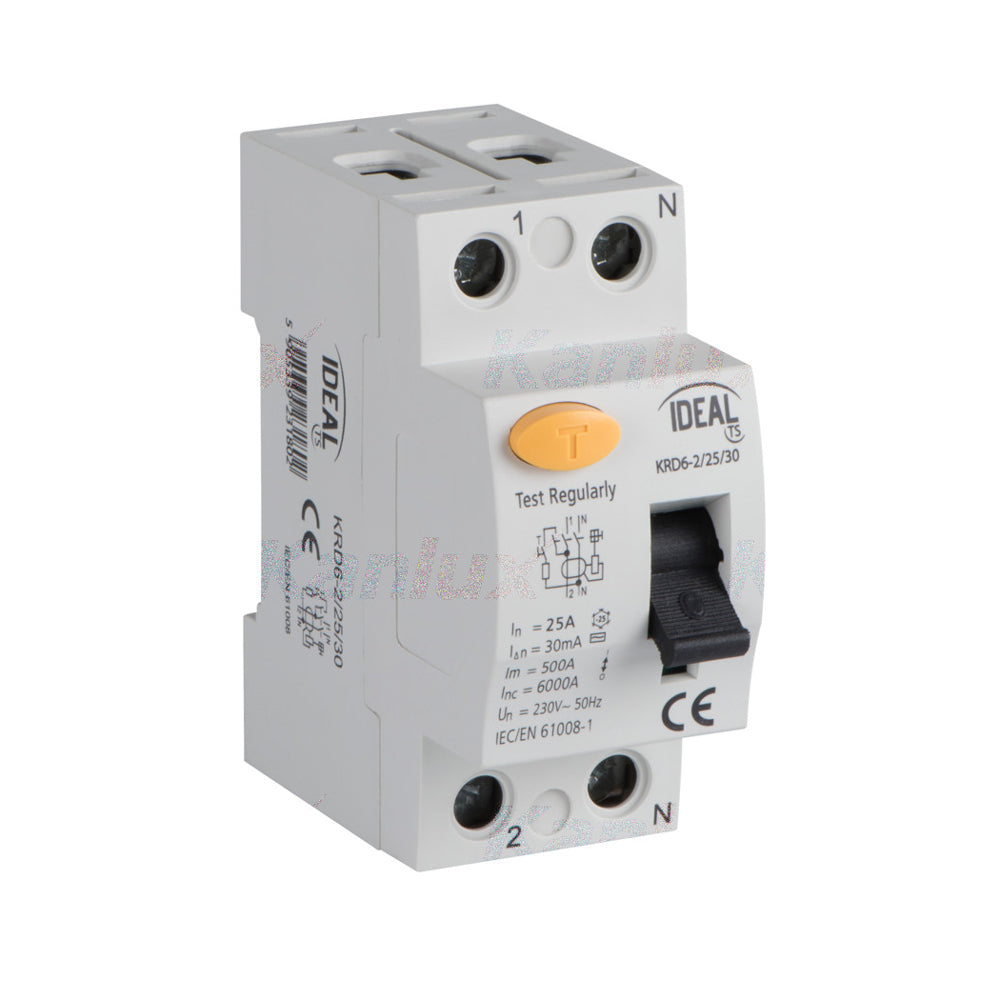

Circuit breaker KANLUX KRD6-2/25/30 23180
Two-pole residual current device - rated voltage 230V AC, frequency 50Hz, rated current 25A, residual current 30mA, AC type for sinusoidal alternating current, IP20 rating, 2 modules, operating temperature -25 to +40°C, protection against electric shock, weight 210 g
In stock 3 pcs
Expected shipping:
24.09.2026
Regular price
€16,09
Unit price
/
Unavailable
KANLUX | SKU:
08773560
Product description
A two-pole circuit breaker, which serves as additional protection against electric shock, compliance with the EN61008 standard.
This product is intended for use in sinusoidal alternating current circuits.
Technical parameters:
- Weight: 210g
- Nominal voltage [V]: 230 AC
- Nominal frequency [Hz]: 50
- Rated current [A]: 25
- Rated differential current [mA]: 30
- Range of ambient temperatures to which the product can be exposed [°C]: -25÷40
- Degree of protection IP: 20
- Current protector type: AC
- Number of modules: 2, 2
- Usage: 2
- Standard: PN-EN 61008-1
This product is intended for use in sinusoidal alternating current circuits.
Technical parameters:
- Weight: 210g
- Nominal voltage [V]: 230 AC
- Nominal frequency [Hz]: 50
- Rated current [A]: 25
- Rated differential current [mA]: 30
- Range of ambient temperatures to which the product can be exposed [°C]: -25÷40
- Degree of protection IP: 20
- Current protector type: AC
- Number of modules: 2, 2
- Usage: 2
- Standard: PN-EN 61008-1
