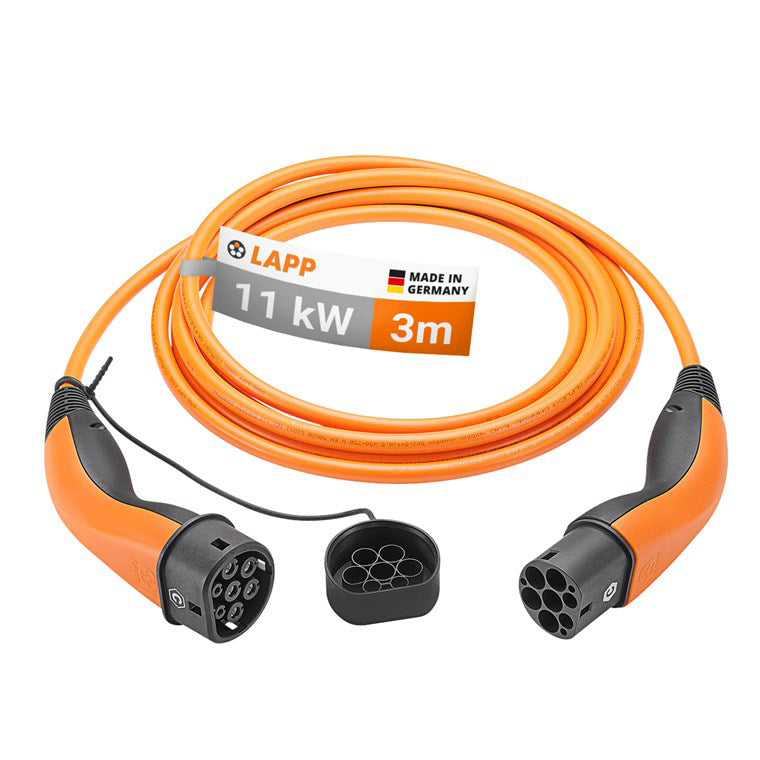

Charging cable LAPP 75743 type 2 11kW 20A 3 phase 3m for electric car

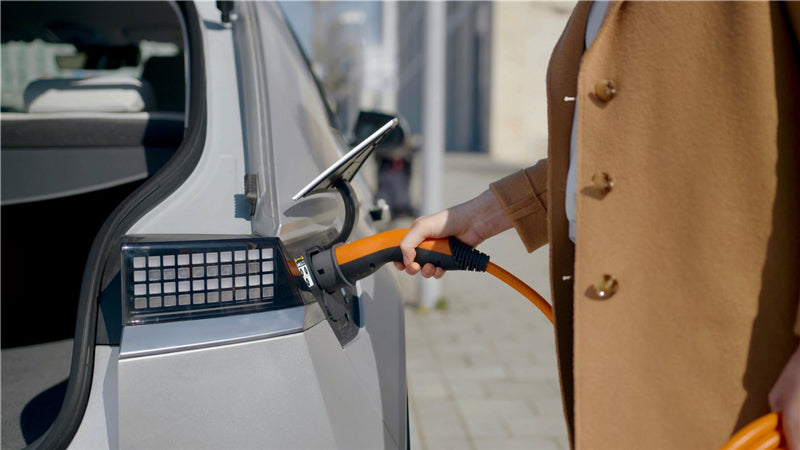

The Type 2 charging cable from LAPP enables easy and fast charging with up to 11 kW at a public or private charging station or wallbox.
Thanks to the 3-phase cable design, the cable charges particularly quickly and also supports 1-phase charging with 3.7 kW
The highly robust cables and plugs with vehicle-resistant silver-plated contacts provide exceptional durability
The cover on the coupling on the vehicle side protects against dust, dirt and water ingress between charges.
Oil-resistant and longitudinally waterproof EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
The Type 2 to Type 2 EV charging cable is space-saving and easy to handle due to its low weight.
Mode 3 charging cable manufactured according to the current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connection (Combo 2).

Technical parameters:

Connection:

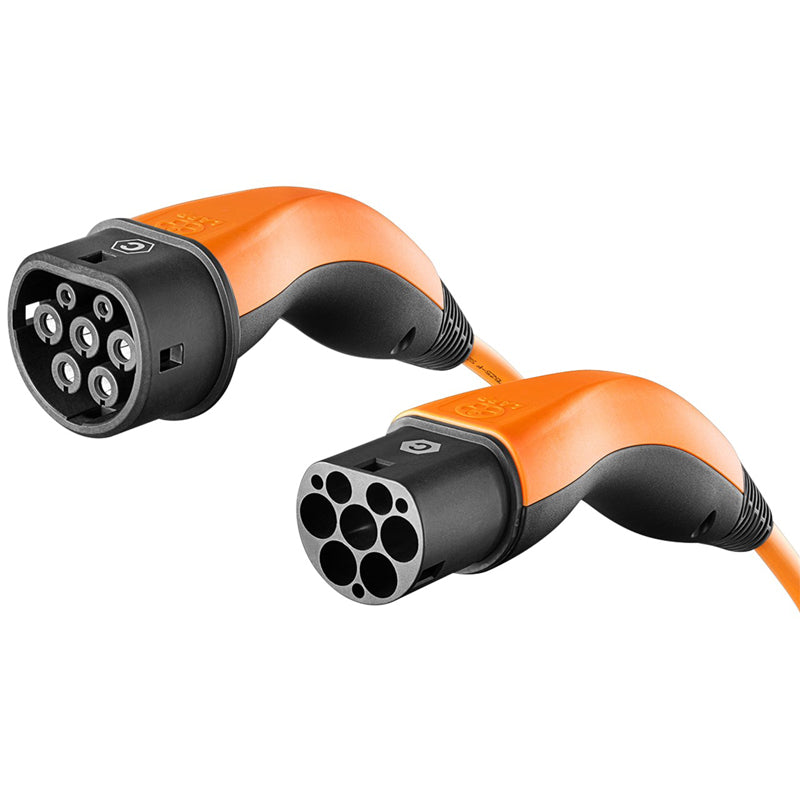

Connection, type: female type 2 plug
Connection 2, type: male type 2 plug
Power:
Load capacity up to: 11 kW
Charging mode: Mode 3
Nominal voltage: 440 V (AC)
Maximum current capacity: 20 A
Cable:
Number of phases: 3
Internal conductor cross-section: 2.5 mm2
Cable type: smooth cable
Cable sheath material: ÖLFLEX® CHARGE
Cable length: 3 m
Protection class: IP55
Colour: orange
Weight: 1430 g
