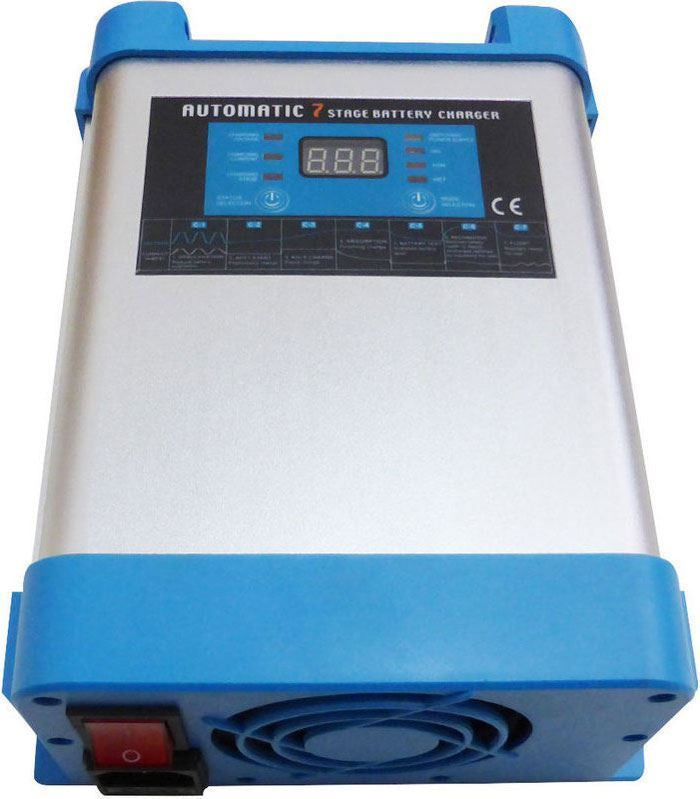

CARSPA EBC1250 12V/50A battery charger
Lead-acid battery charger - voltage 12V, current 50A, 7-stage automatic charging cycle, desulphation by pulse current at voltages below 11V, absorption charging at 14.2–14.8V, dual charging output for 2 batteries simultaneously, designed for 60–200Ah lead-acid batteries with liquid electrolyte, AGM and AGM GEL, suitable for backup power supplies, caravans and off-grid systems
Last piece
Expected shipping:
25.09.2026
Regular price
€152,54
Unit price
/
Unavailable
CARSPA | SKU:
04240700
Product description
Intelligent automatic lead-acid battery charger with seven-stage automatic charging, designed for permanent connection to the battery being charged. Suitable for backup power supplies, caravans, island systems, etc. Designed for 12V 60-200Ah liquid dielectric, AGM and AGM GEL (optional) lead acid starter and traction batteries. Dual charging output can charge 2 batteries at the same time.

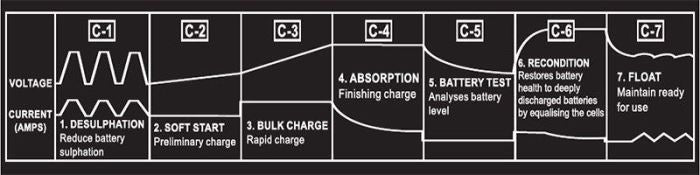

Charging phase:
C-1 Desulfation:
Pulse charging. This phase starts automatically when the battery voltage is below 11V and precedes the standard charge cycle.
C-2 Soft Start:
A phase of gradually increasing charging current up to a maximum of 50A.
C-3 Constant current charging:
A key phase of the charging cycle. Constant current charging until the clamp voltage reaches 14.2 to 14.8V (selectable in three stages)
C-4 Absorption Charging :
Charging at a constant voltage of 14.2-14.8V while gradually decreasing charging current
C-5 Battery test:
During the 90 sec. test, the battery is discharged while the clamp voltage is measured. If the test is successful, the last, maintenance stage automatically follows. If the test is unsuccessful and the clamp voltage drops rapidly during the test, then stage 6 follows.
C-6 Reconditioning Charge:
In reconditioning mode, the battery is charged for 4 hours at a reduced constant current
C-7 Maintenance Mode:
Maintain battery clamp voltage of 13.2-13.8V (selectable in three stages).
Specifications:
-supply voltage 190-265V
-max charging current 50A
-for 12V 60-200Ah, AGM and AGM GEL lead acid starting and traction batteries
-temperature compensation of the charging current by the included temperature sensor
-LED display with indication of charging status, charging current and voltage and charge level
-Efficiency 88%
-Operating temperature 0-40°C
-Dimensions 226x175x95mm
-Weight: 2.06kg
-delivery includes power and charging cables
