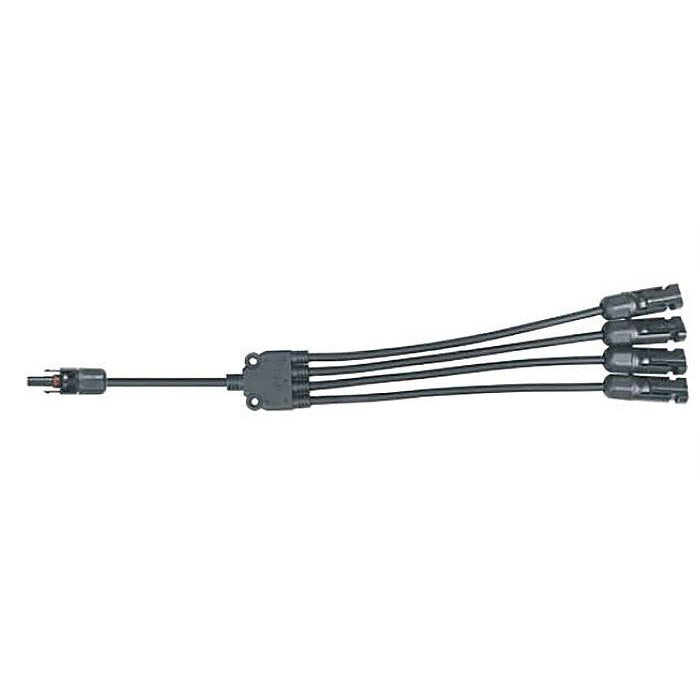

Cable TIPA MC4 split 1x socket/ 4x connector 30cm
MC4 branch cable - configuration 1× socket / 4× connector, length 30 cm, cable cross-section 4 mm2, operating voltage up to 1000V, max. current 30A, contact resistance <0.5m?, IP67 rating, operating temperature -40 to +90°C, designed for parallel connection of photovoltaic panels in solar systems
Last piece
Expected shipping:
09.10.2026
Regular price
€4,02
Unit price
/
Unavailable
HADEX | SKU:
03510118
Product description
MC4 branching, 1x socket, 4x connector, cable 30cm.

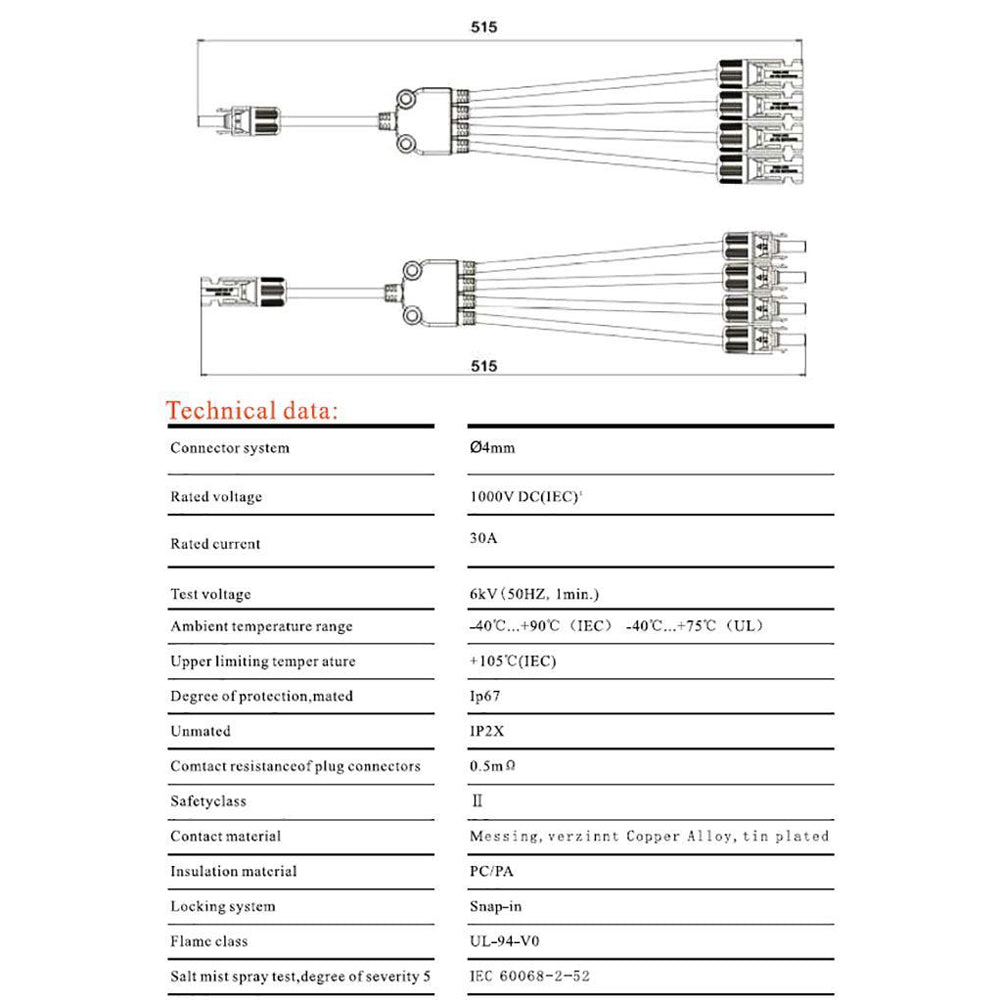

Technical parameters:
- operating voltage: <1000 V
- current: <30A (cable 4mm2)
- operating temperature: -40°~90°C
- protection: IP67
- transition resistance: <0.5mOhm
Technical parameters:
- operating voltage: <1000 V
- current: <30A (cable 4mm2)
- operating temperature: -40°~90°C
- protection: IP67
- transition resistance: <0.5mOhm
