Cable connector GCC007 450V, 4x5-9mm, IP68 H2/2

Waterproof junction box - type GCC007, screw-on, configuration H 2/2, 4 cable inputs/outputs, conductor cross-section 0.5–6 mm2, rated voltage 450V, rated current 40A, IP68 rating, cable diameter 5–9 mm, silicone rubber sealing rings, operating temperature -40 to +105°C, dimensions 105 × 82 × 42 mm, pack of 1

Show full description
Will be restocked
Expected shipping: 28.09.2026 at our place
€5,69
TIPA  |  SKU: 03391088  |  Barcode: 8595563734445
Log in for VAT-free pricing

Product description

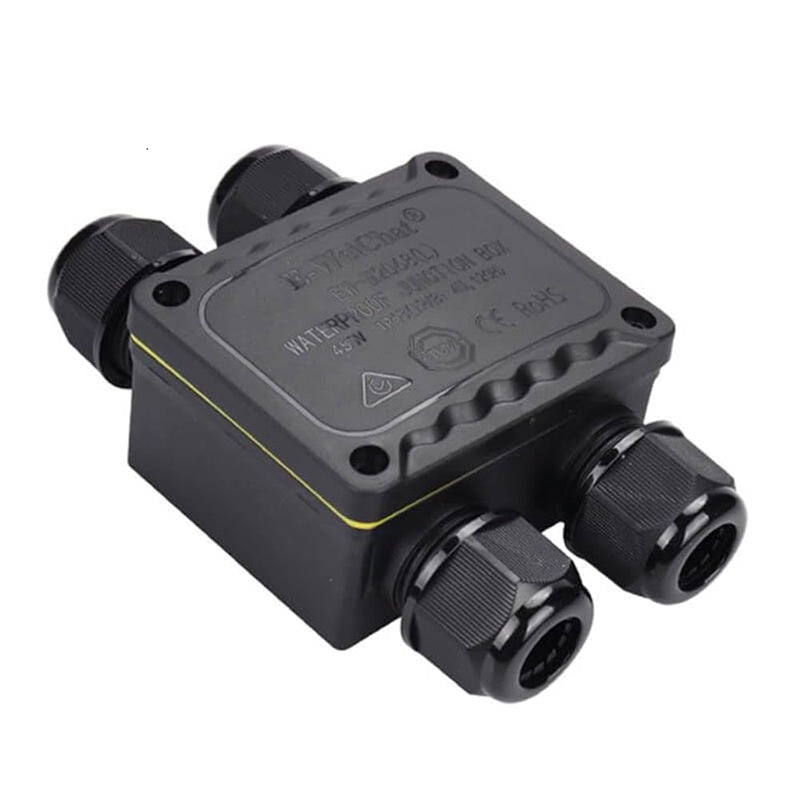

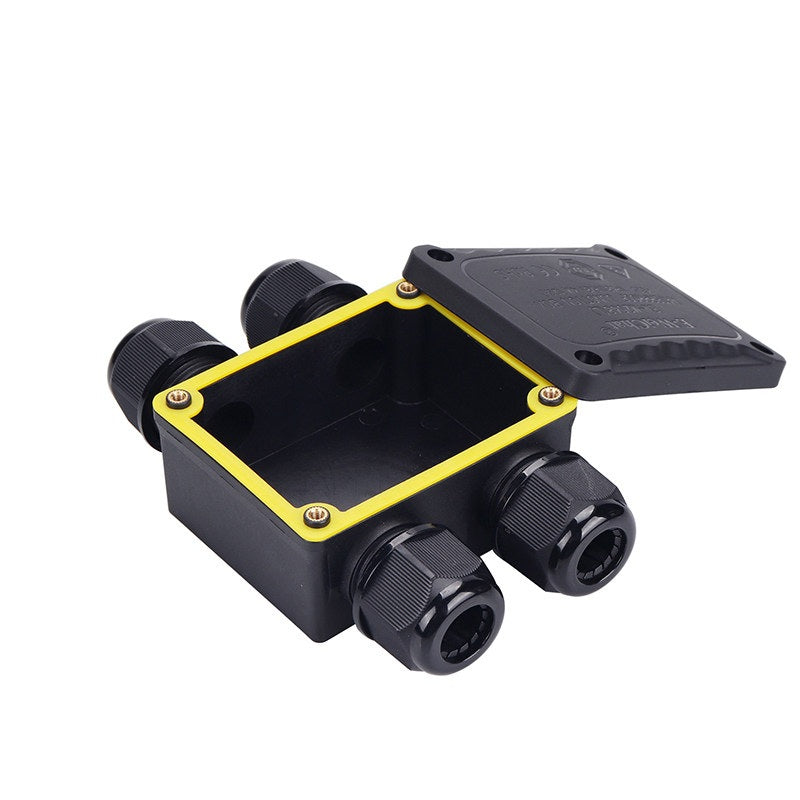

Screw-Type Waterproof Connector / Junction Box

Technical Specifications:

- Number of inputs/outputs: 4×
- Wire cross-section: 0.5–6 mm2
- Protection rating: IP68
- Rated voltage: 450 V
- Rated current: 40 A
- Cable diameter: 5–9 mm
- Sealing ring material: Silicone rubber
- Operating temperature: -40 °C to +105 °C

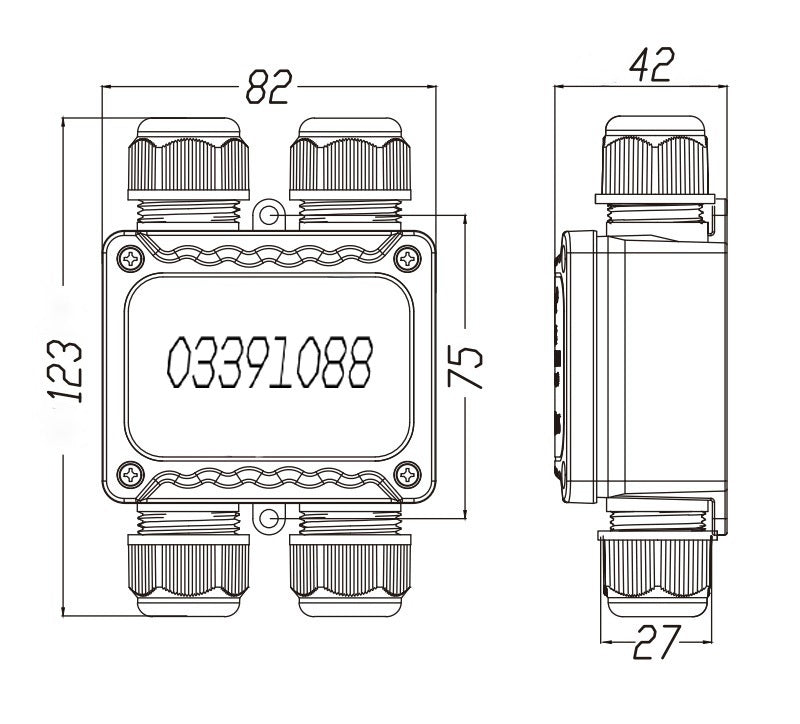

- Dimensions: 105 x 82 x 42 mm

Package includes: 1 pc
