Cable connector GCC001 3x1.5mm2, 7-10mm, IP68
Waterproof cable joint - type GCC001, screw-on, 2 × 3-pin, conductor cross-section 0.5–1.5 mm2, rated voltage 400V, rated current 17.5A, IP68 rating, cable diameter 7–10 mm, silicone rubber sealing ring, nickel-plated copper clamps, operating temperature -40 to +105°C, dimensions 65 × 20.3 mm, pack of 1
Not in stock
Regular price
€3,46
Unit price
/
Unavailable
TIPA | SKU:
03391082
Product description

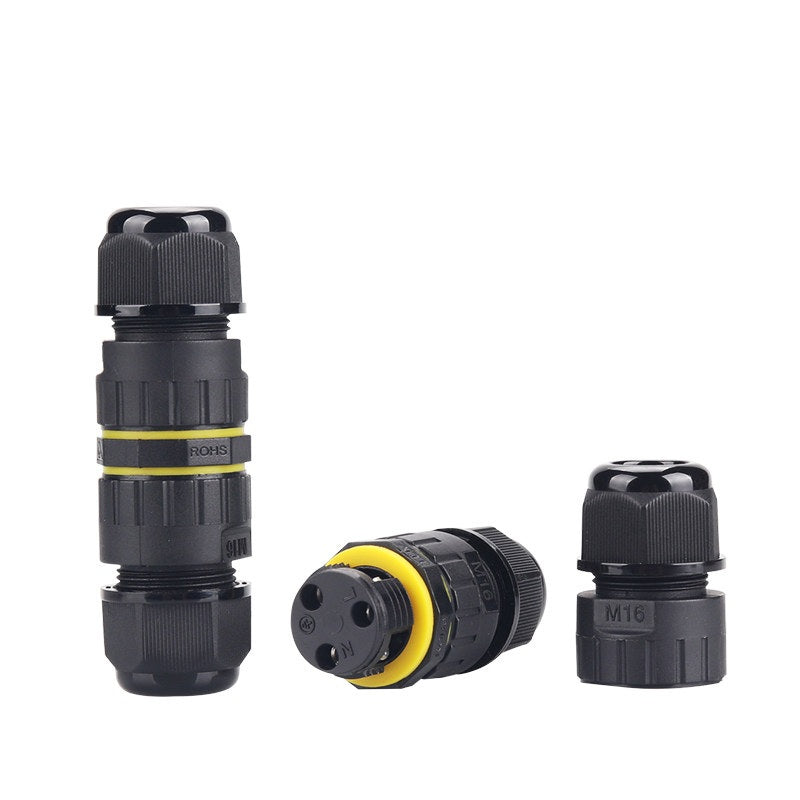

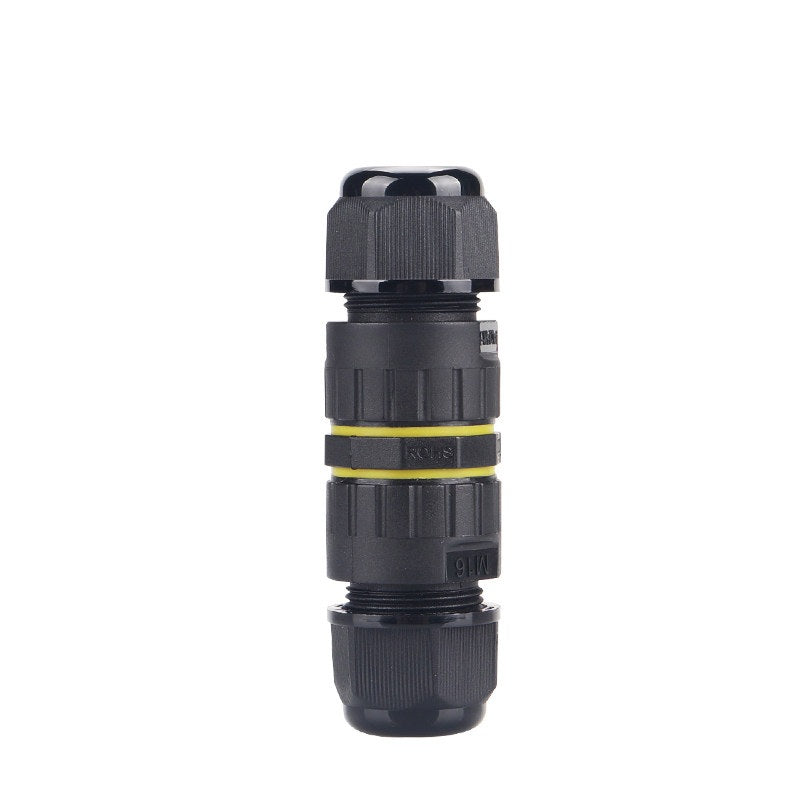

Screw-Type Waterproof Connector / Coupler
Technical Specifications:
- Number of contacts: 2 × 3 pins
- Wire cross-section: 0.5–1.5 mm2
- Protection rating: IP68
- Rated voltage: 400 V
- Rated current: 17.5 A
- Cable diameter: 7–10 mm
- Sealing ring material: Silicone rubber
- Terminal material: Nickel-plated copper
- Operating temperature: -40 °C to +105 °C
- Dimensions: 65 × 20.3 mm
Package includes: 1 pc
Technical Specifications:
- Number of contacts: 2 × 3 pins
- Wire cross-section: 0.5–1.5 mm2
- Protection rating: IP68
- Rated voltage: 400 V
- Rated current: 17.5 A
- Cable diameter: 7–10 mm
- Sealing ring material: Silicone rubber
- Terminal material: Nickel-plated copper
- Operating temperature: -40 °C to +105 °C
- Dimensions: 65 × 20.3 mm
Package includes: 1 pc
