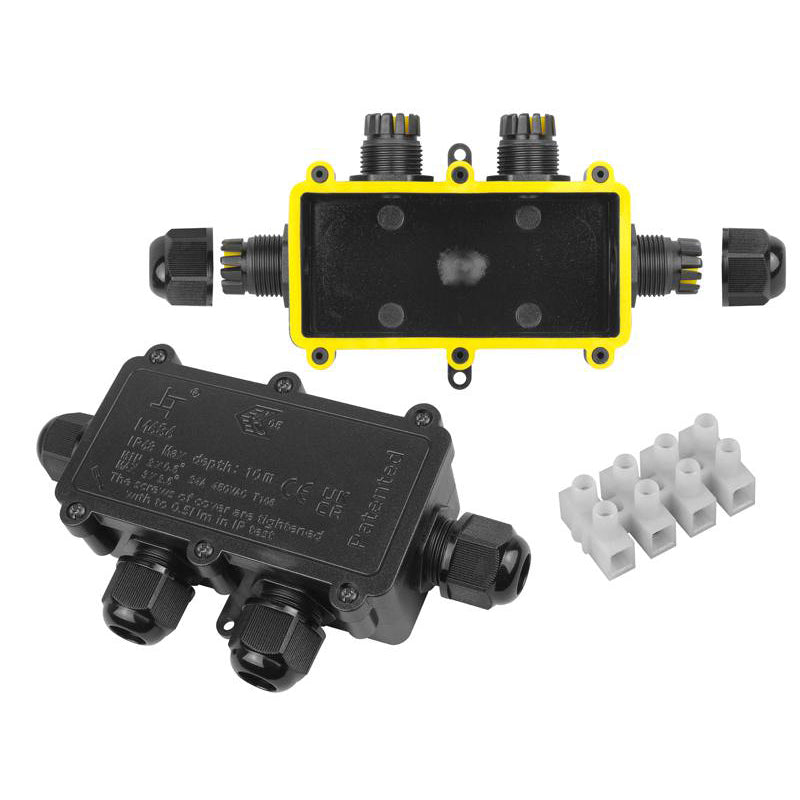

Cable clutch LTC LXZE57

Waterproof cable joint - installation box type, 3-rail busbar with screw terminals, max. core cross-section 2.5 mm2, max. current 16A, max. voltage AC 450V, 4 cable entries, cable cross-section 0.5–2.5 mm2, cable diameter 4–8 mm, IP68 rating, dimensions 80 × 52 × 31 mm, CE and RoHS certification

Show full description
In stock 14 pcs
Expected shipping: 23.09.2026
€3,91 €4,44
LTC  |  SKU: 03391049  |  Barcode: 5902270777840
Log in for VAT-free pricing

Product description

Designed for the connection of electrical cables, secured by an appropriate quality seal. It is protected against dust, sand and other solid objects and has a high degree of protection against the effects of water ingress.

Technical parameters:

Device type: installation box
Maximum core diameter: 2.5 mm2
Connection type: 3-rail rail with screw terminals
Maximum current: 16A
Number of cable inputs: 4
Maximum voltage: AC 450V
Used cable cross-section: 0.5 - 2.5 mm2
Cable diameter: 4 - 8 mm
Degree of protection: IP68
Dimensions: 80 x 52 x 31
Certificates: CE, RoHS
