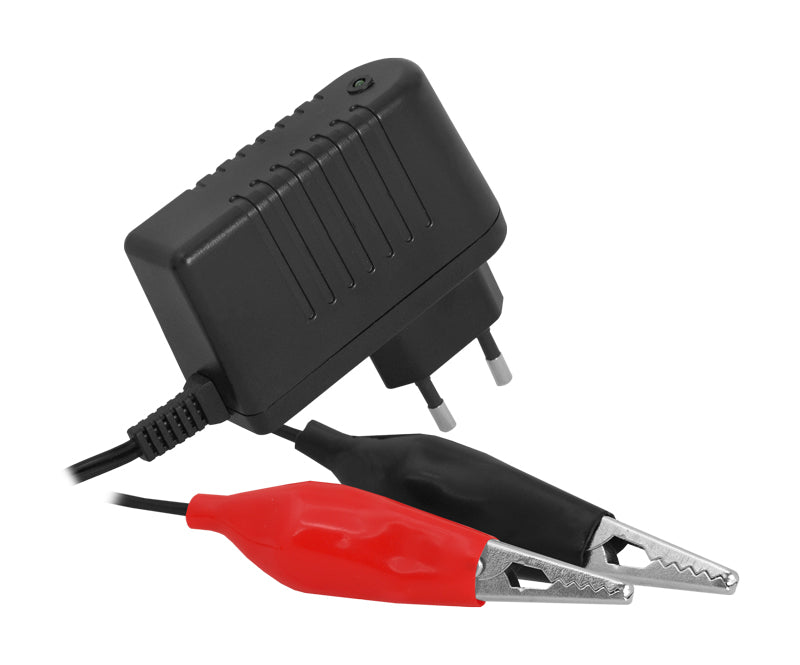

Battery charger LTC LXB415 6V 1000mAh for batteries max 20Ah

Lead-acid battery charger - output voltage 7.2V DC, max. output current 1.05A, input voltage 230V AC, max. power 7.5W, suitable for batteries up to 20Ah, LED battery status indication, protection against short-circuit, overload and overvoltage, class II double insulation, MTBF 30 000 hours, cable length 1.5 m, dimensions 77 × 30 × 82 mm, weight 140 g, operating temperature 0 to 40°C

Show full description
€7,06

This product is no longer sold.

LTC  |  SKU: 04240189  |  Barcode: 5902270714302
Log in for VAT-free pricing

Product description

This charger is for charging lead-acid batteries with built-in short-circuit and overload protection.

Properties:

- Battery status LED
- Output voltage: 7.2V DC
- Maximum output current: 1,05A
- Rated output current: 15A
- Input voltage: 230V AC
- Maximum input current: 0.1A
- Maximum power: 7.5W
- Current limit: 1,05A
- Overload protection
- Short circuit protection
- Overvoltage protection
- Class II double insulation
- MTBF 30,000 hours
- Operating temperature: 0 ... 40 ° C
- Storage temperature: -20 ° C .... 85 ° C
- Cable length: 1.5m
- Overall dimensions: 77 x 30 x 82 mm
- Weight: 140 g
