Battery balancer SUNKKO BAL-524 4S-24S 5A for Li-Ion and LiFePO4
Battery balancer - type BAL-524, balancing current 0–5A, 4–24 cells (4S–24S), compatible with Li-Ion and LiFePO4 cells above 20Ah, voltage effect 10–20mV, rated voltage 3.2–3.7V/cell, quiescent current <5mA, undervoltage protection <2.7V (Li-Ion) / <2.5V (LiFePO4), toroidal transformer, MOS switches, START button for 1h intensive equalisation, ON-OFF button for continuous equalisation, dimensions 156 × 106 × 22 mm, weight 230 g, connector included, cabling, screwdriver and LED strip for 1–24 cells
Not in stock
Regular price
€67,22
Unit price
/
Unavailable
TIPA | SKU:
09830343
Product description

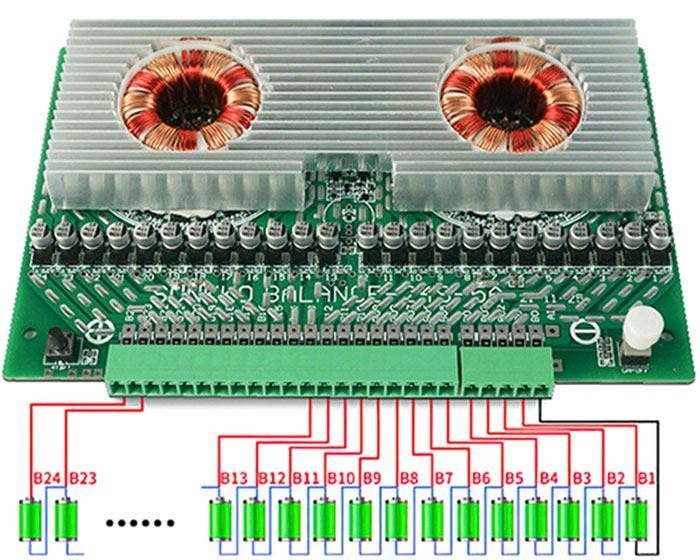

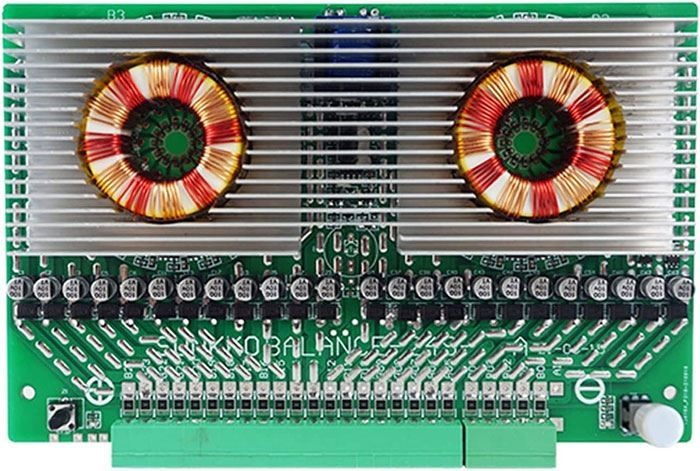

The SUNKKO BAL-524 5A is a high-end battery balancer for Li-Ion or LiFePO4 cells with a capacity of over 20Ah. It is equipped with a toroidal transformer and MOS semiconductors.
Specifications:
- Balancing current 0-5A
- Number of balancing cells: 4-24
- Balancer voltage effect: 10-20mV
- Rated voltage: 3.2-3.7V/cell
- Self-consumption: <5mA
- Undervoltage protection: <2.7V/cell (Li-Ion), <2.5V/cell (LiFePO4)
- START button for intensive equalization for 1 hour (double click, switch in OFF)
- ON-OFF button to turn on continuous equalization
- Dimensions: 156×106×22mm
- Weight: 230g
Package Contents:
- BAL-524 balancer
- Connector and wiring harness
- Screwdriver
- LED indicator strip for 1-24 cells
- Comprehensive manual (in EN only)
