Battery balancer SUNKKO BAL-513 4S-13S 5A for Li-Ion and LiFePO4

Battery balancer - type BAL-513, balancing current 0–5A, 4–13 cells (4S–13S), compatible with Li-Ion and LiFePO4 cells above 20Ah, voltage effect 10–20mV, rated voltage 3.2–3.7V/cell, quiescent current <5mA, undervoltage protection <2.7V (Li-Ion) / <2.5V (LiFePO4), toroidal transformer, MOS switches, START button for 1h intensive equalisation, ON-OFF button for continuous equalisation, dimensions 95 × 105 × 25 mm, weight 240 g, connector included, cabling, screwdriver and LED strip for 1–24 cells

Show full description
In stock 17 pcs
Expected shipping: 30.09.2026
€29,69 €36,25
TIPA  |  SKU: 09830342  |  Barcode: 8595563734575
Log in for VAT-free pricing

Product description

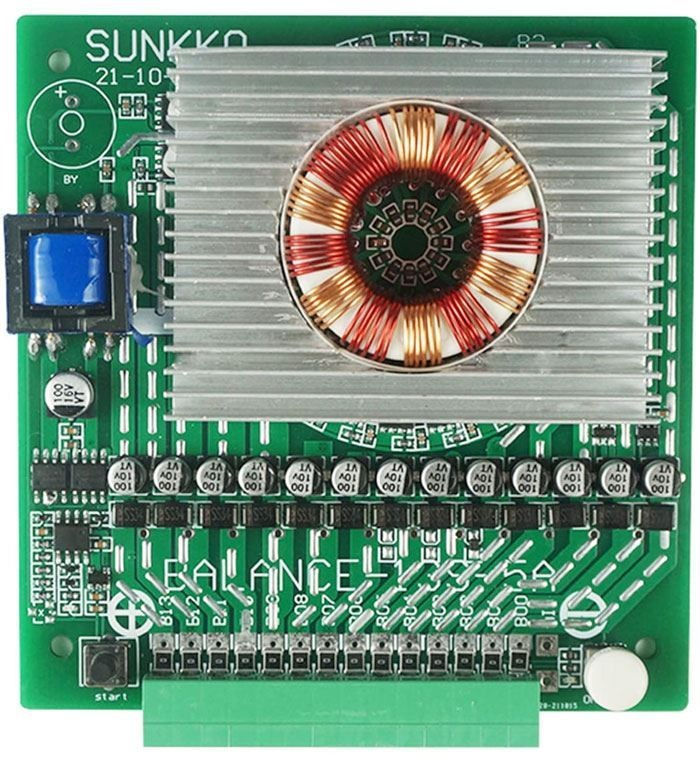

SUNKKO is a top battery balancer for Li-Ion or LiFePO4 cells with a capacity of over 20Ah. It is equipped with a toroidal transformer and MOS semiconductors.

Technical parameters:

- Balancing current 0-5A
- Number of balanced cells: 4-13
- Voltage effect of balancer: 10-20mV
- Rated voltage: 3.2-3.7V/cell
- Self-consumption: <5mA
- Undervoltage protection: <2.7V/cell (Li-Ion), <2.5V/cell (LiFePO4)
- START button for intensive equalization for 1 hour (double click, switch in OFF)
- ON-OFF button to turn on continuous equalization
- Dimensions: 95×105×25mm
- Weight: 240g

Package Contents:

- Balancer 4-13S
- Connector and wiring harness
- Screwdriver
- LED indicator strip for 1-24 cells
- Comprehensive manual (in EN only)
