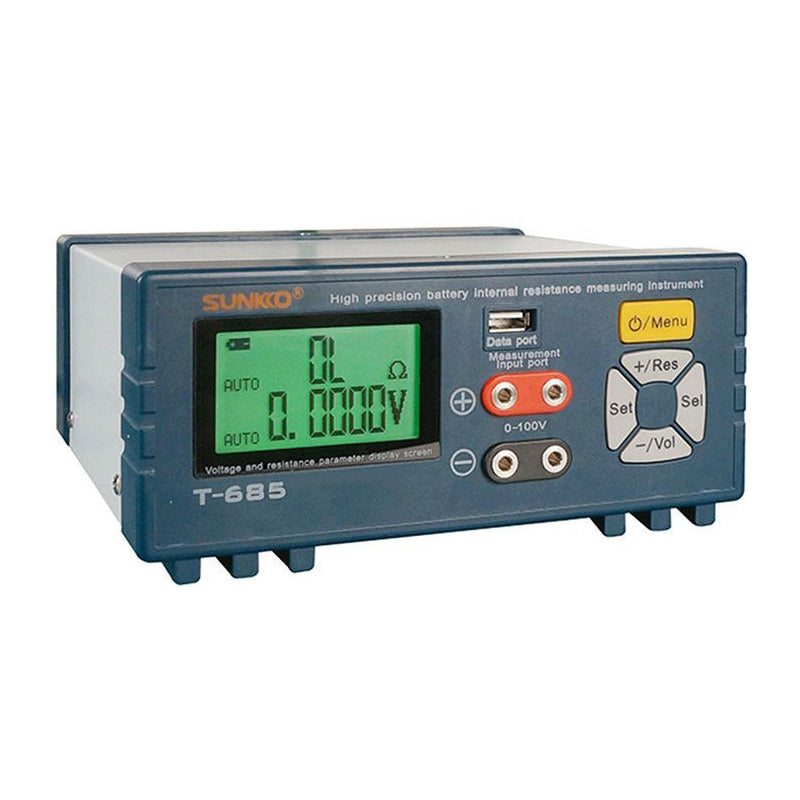

Battery and cell tester SUNKKO T-685

Battery and cell tester - analyser of internal resistance (ACR) and voltage (DCV), resistance range 2m?–200?, voltage range 0.1mV to ±100VDC, resolution 0.0001m? and 0.1mV, accuracy ±0.5%, measurement frequency 5×/sec, automatic range selection, 4-wire measuring clamps, power supply 100–240V AC, compatible with Li-Ion, LiFePO4 and Li-Pol cells, package includes an attachment for cylindrical cells, USB cable and power cable

Show full description
Will be restocked
Expected shipping: 25.09.2026 at our place
€158,65
HADEX  |  SKU: 07750220  |  Barcode: 8596425178995
Log in for VAT-free pricing

Product description

The SUNKKO T-685 cell and battery tester is a high-precision battery internal resistance and voltage analyzer. It is intended for measuring Li-Ion, LiFePO4 and Li-Pol cells


Technical parameters:

- power supply: 100-240 V AC
- measurement parameters: ACR, DCV
- measurement range: R: 2 mohm – 200 ohm V: 0.1mV – ±100VDC
- resolution: 0.0001mohm, 0.1mV
- measurement accuracy: R:±0.5%, V:±0.5%
- frequency of testing: 5x / sec
- automatic range selection
- measurement input: balanced system

Accessories:
- 4-wire measuring terminals
- measuring device for cylindrical cells
- USB cable
- power cable

Notice:
- keep the measuring electrodes and battery poles clean
- dirt or oxide layers adversely affect the measurement results.
