Arduino Nano V3.0 R3, Atmega328P, Arduino clone with CH340G

Arduino Nano clone - ATmega328P microcontroller, CH340G USB converter, operating voltage 5V, input voltage 5–12V (max. 6–20V), 14 digital inputs/outputs, 6 PWM outputs (D3/D5/D6/D9/D10/D11), 8 analogue inputs, mini USB connector, designed for insertion into a solderless breadboard, dimensions compatible with DIP socket, without external power connector

Show full description
Will be restocked
Expected shipping: 28.09.2026 at our place
€5,61
TIPA  |  SKU: 09830204  |  Barcode: 8595563729120
Log in for VAT-free pricing

Product description

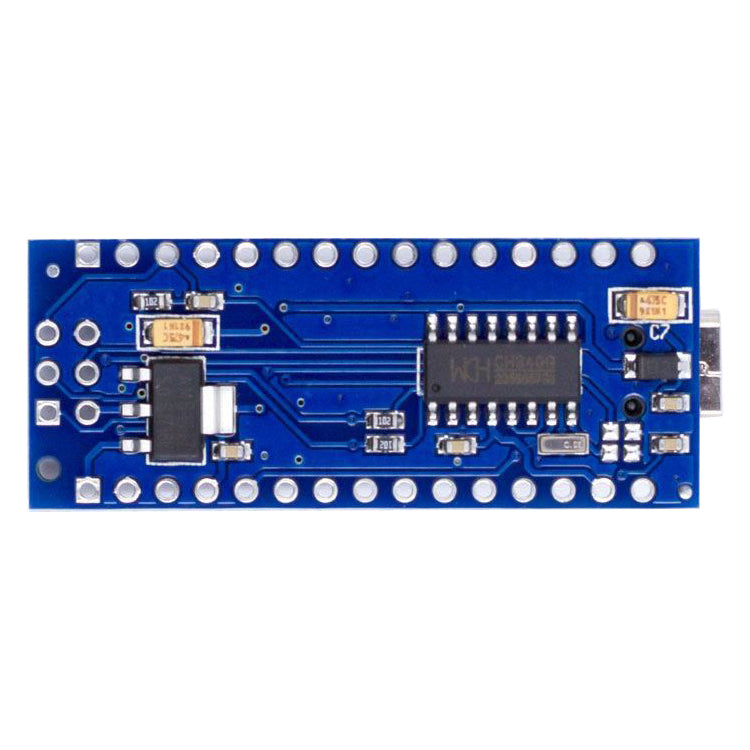

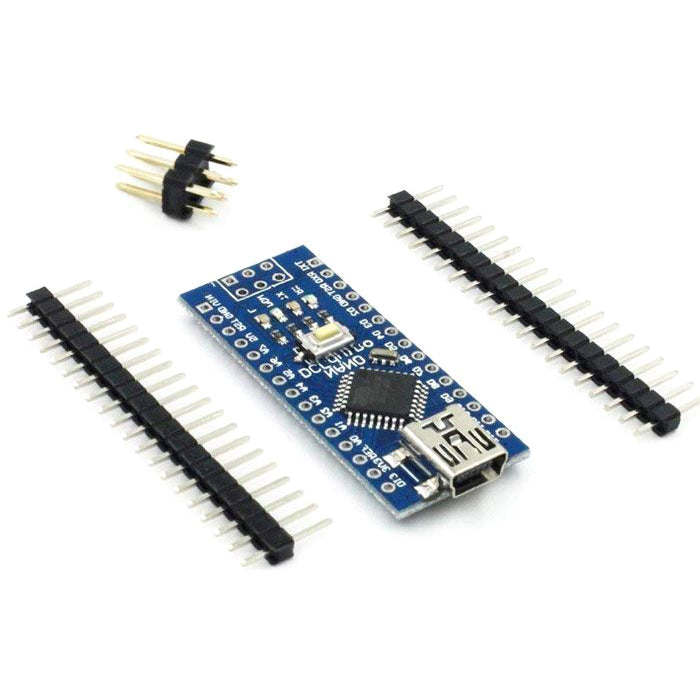

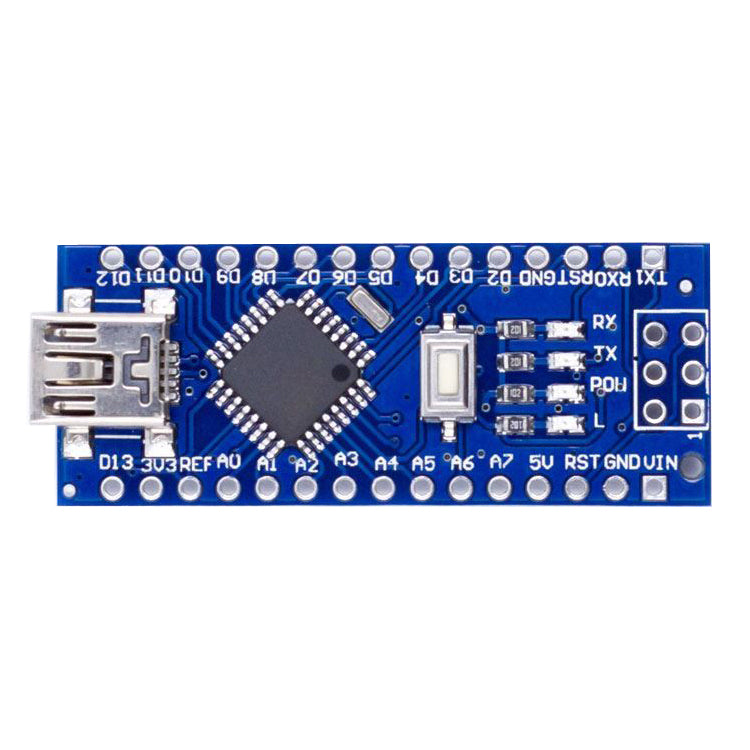

This Arduino Nano clone is a minimized development board with an AVR ATmega328 microcontroller and a GH340G USB converter. It is functionally identical to the Arduino UNO version, but it is adapted for insertion into a non-soldering contact field or device socket. The input and output pins are therefore connected to the bottom of the board. To minimize, the external power connector is missing and the USB connector is reduced to a mini USB version. The board itself contains 14 digital inputs / outputs and 8 analog ones. The external power connector is replaced by a pair of 5-12 V pins.


Product parameters:

- MCU: ATmega328
- USB converter: CH340G
- working voltage: 5V
- input voltage: 5-12V (max.6-20V)
- 14 digital input / output ports: TX, RX, D2 ~ D13
- 6 PWM ports: D3, D5, D6, D9, D10, D11
- analog. inputs: 8 (A0 ~ A7)
- DC Current per pin: 40mA
- flash: 32 KB (ATmega328) 0.5 KB used for bootloader
- SRAM 2 KB (ATmega328)
- EEPROM 1 KB (ATmega328)
- crystal: 16 MHz

The package does not include a communication cable, it is necessary to purchase a Micro USB - USB-A cable.

The product is not a stand-alone unit, it requires professional installation.
