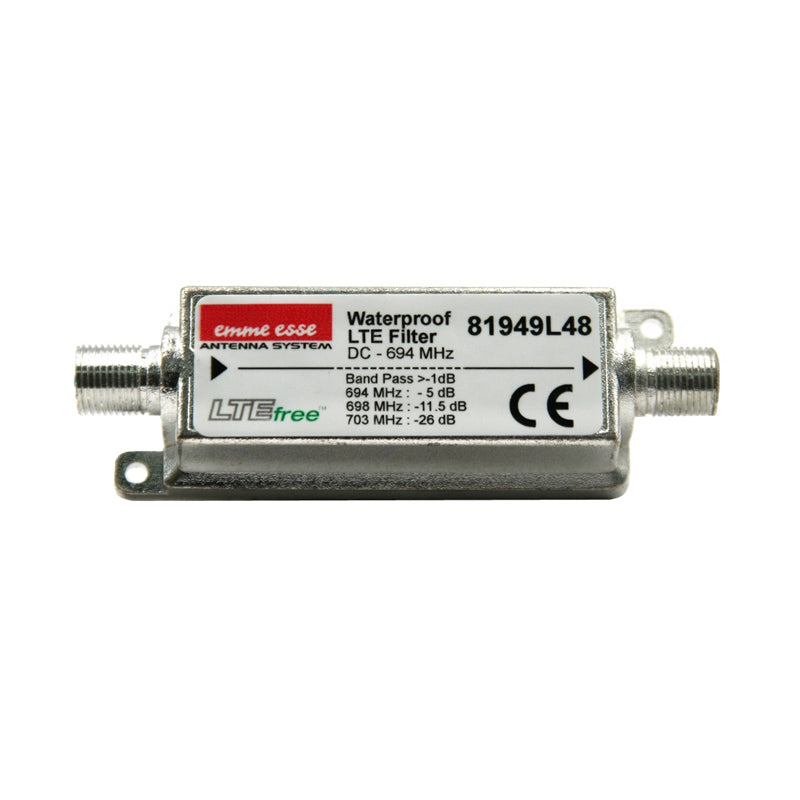

Antenna filter Emme Esse 81949L48, filtr 5G, low pass DC up to 694MHz

Name: Antenna filter Emme Esse 81949L48, filtr 5G, low pass DC up to 694MHz
Brand: EMME ESSE
SKU: 14411316
Price: 9.64 EUR
Availability: InStock

5G aerial filter - low-pass DC to 694MHz, attenuation in the 174–692MHz band: 0.4 to 2dB, attenuation in the 695–698MHz band: more than 18dB, attenuation above 698MHz: more than 37dB, return loss at input and output 10dB, F female connectors, suppression of LTE and 5G interference in television distribution systems, also suitable for outdoor use, placed before the first amplifier

Show full description

Will be restocked

Expected shipping: 20.10.2026 at our place

€9,64

EMME ESSE | SKU: 14411316 | Barcode: 8013679020837

Product description

The Emme Esse 81949L48 Antenna Filter is used in TV and radio distribution systems to suppress mobile internet interference in the 5G and LTE bands. The filter is placed in front of the first amplifier, or if there is no amplifier in the wiring, directly in front of the television.

Product parameters :

- input and output connector : socket Ff
- Bandpass : DC to 694 MHz with low attenuation
- can also be used outdoors : yes

Technical parameters :

- attenuation in the band 174 to 692 MHz : 0,4 to 2 dB
- attenuation in the band 694 to 695 MHz : 6 dB
- attenuation in the band 695 to 698 MHz : more than 18 dB
- attenuation above 698 MHz : more than 37 dB
- Input and output rebound attenuation : 10dB

Package contents : Filter Emme Esse 81949L48
