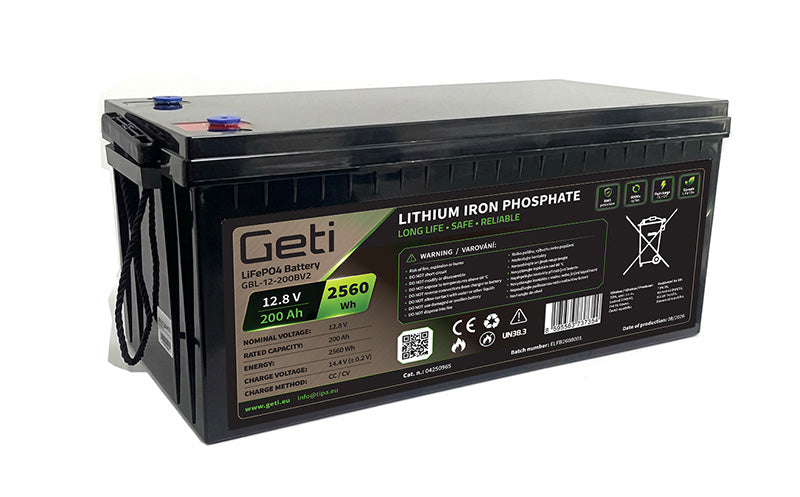

GETI GBL-12-200BV2 12.8V 200Ah LiFePO4 battery

The GETI GBL series LiFePO4 battery is designed for solar systems, caravans, boats, recreational vehicles, scooters and other applications that require frequent and deep discharges. It is a modern, lightweight and high-performance battery with a built-in BMS (Battery Management System), which not only ensures fast charging and a long service life, but also protects the battery against overcharging, over-discharging or short-circuiting. The GETI LiFePO4 battery is therefore an ideal replacement for lead-acid batteries, offering a significantly longer service life (up to 6,000 cycles) whilst being lighter in weight. LiFePO4 batteries are an eco-friendly choice that offers long-term cost savings and environmental benefits.

To achieve maximum stability and service life, the internal cell connections are created using high-precision laser welding. This technology ensures perfect strength and integrity of every connection.

The battery is fitted with top-of-the-range HIGHSTAR cells and an intelligent BMS system from the renowned manufacturer JBD. Product Description: - HIGHSTAR brand cells
- high-quality JBD BMS system - laser-welded joints for maximum conductivity - LiFePO4 technology, which, compared to conventional AGM and GEL batteries, offers a much longer service life, smaller dimensions and lower weight whilst maintaining the same capacity.
- Bluetooth communication - Integrated BMS ensuring cell protection against overcharging, undercharging or short circuits - High performance - Long service life - Low weight - Fast charging - No memory effect
- wide range of applications - battery orientation flexibility - high safety Technical specifications: - nominal voltage: 12.8 V - cells: Class A+ - capacity: 200 Ah
- energy: 2560 Wh - charging voltage: 14.4 V (+/- 0.2 V) - load cut-off: 10 V
- charging mode: CC/CV (1st stage: constant current, 2nd stage: constant voltage) - recommended charging current: 40 A - max. continuous charging current: 200 A (max.)
- Max. continuous discharge current: 200A - Max. peak discharge current: 210A (5 sec.) at 25°C - Cycle life: >6,000 cycles at 80% DOD
- BMS: integrated - display: NO - Bluetooth: YES - self-discharge: ?2 %/month at 25°C - charging temperature: 0° to 45 °C
- Discharge temperature: –20° to 60 °C - Storage temperature: 0° to 25 °C (recommended) - Configuration: max. 4S4P - Connectors: M8
- Protection class: IP65 - Warranty: 2 years - Dimensions (L × W × H): 502 × 186 × 243 mm - Weight: 19 kg

The batteries can be connected in series or in parallel – 4 in series and 4 in parallel (max.) Packaging: 1 pc
