FNIRSI FNB58 BT USB tester, Bluetooth
New
Last piece
Expected shipping:
15.10.2026
Regular price
19.567 Ft
15.407 Ft
excl. VAT
Unit price
/
Unavailable
FNIRSI | SKU:
07750305
Product description

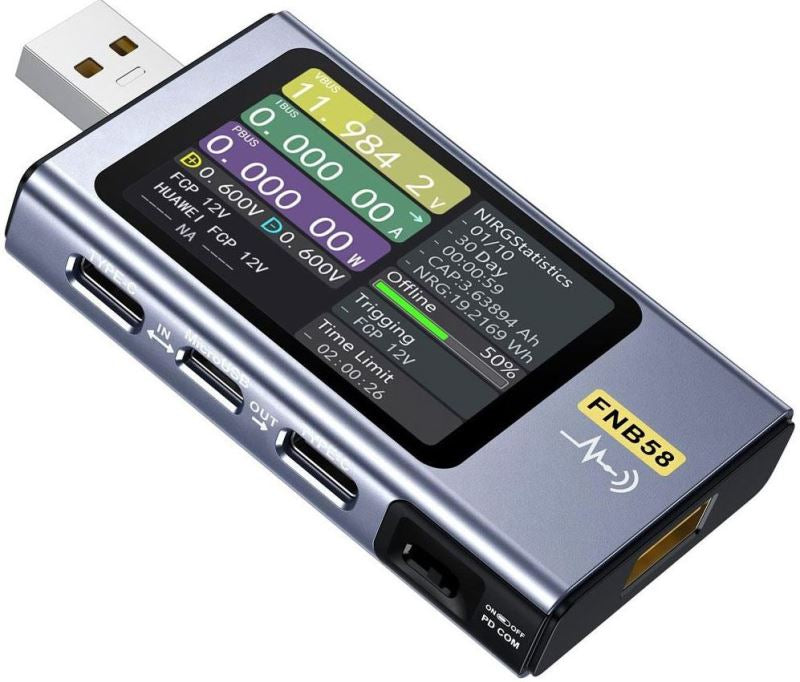

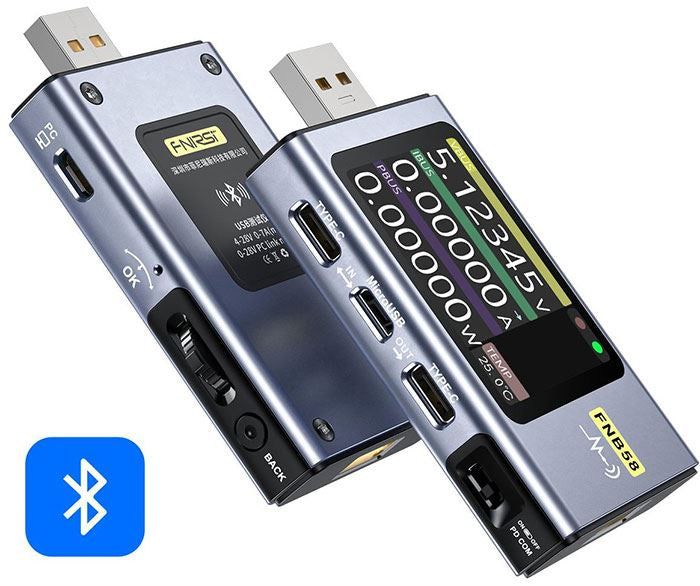

The FNIRSI FNB58 USB tester is a multifunctional tool for testing and monitoring USB power ports.
This tester makes it easy to determine the voltage, current and power supplied by the USB port under test.It is ideal for diagnosing and repairing USB ports on various devices, such as laptops, tablets, mobile phones and more.
The tester is equipped with a 1.77-inch high-resolution TFT graphic display. The display clearly shows numerical charging values, and can be easily switched to a graphical representation of changes in the charging status, with a display similar to that of an oscilloscope. For ease of use and reading, the display also features 360° rotation.
The tester is a versatile device and is equipped with standard ports, including USB-A, microUSB and USB-C. Its versatility is further enhanced by its ability to detect various fast-charging protocols, such as QC2.0/QC3.0, Huawei FCP/SCP, Samsung AFC, PD 2.0/3.0, VOOC/WARP and Super VOOC 1.0/2.0. It uses a specialised 16-bit ADC and a PD protocol chip for measurements.
For firmware and software updates, and further information, please visit the manufacturer’s website at www.fnirsi.com Technical specifications: - voltage measurement range: 4–28V - current measurement range: 0–7A
- Power consumption measurement range: 0–120W - USB cable resistance measurement range: 0–9999.9 ohms - Internal resistance measurement range: 0–9999.9 ohms
- Battery capacity measurement range: 0–9999.99 Ah - Energy consumption measurement range: 0–9999.99 Wh - Voltage measurement resolution: 0.00001 V
- Voltage measurement accuracy: ±(0.2‰ + 2) - Current measurement resolution: 0.00001 A - Current measurement accuracy: ±(0.5‰ + 2)
- power consumption measurement resolution: 0.00001 W - power consumption measurement accuracy: ±(0.5‰ + 2) - display type: 2" TFT LCD - measurement duration: 99 days 23 hours 59 minutes 59 seconds
- Measurement logging: 99 days 23 hours 59 minutes 59 seconds - Dimensions: 82×42×13 mm - Weight: 45 g Advantages of the Bluetooth version:
Thanks to the built-in Bluetooth, you can place the tester in a hard-to-reach spot (e.g. behind a desk) and monitor the charging curves conveniently on your phone’s display. The app also allows you to set alarms for overvoltage or overcurrent, which protects the devices under test from damage.
The tester is a versatile device and is equipped with standard ports, including USB-A, microUSB and USB-C. Its versatility is further enhanced by its ability to detect various fast-charging protocols, such as QC2.0/QC3.0, Huawei FCP/SCP, Samsung AFC, PD 2.0/3.0, VOOC/WARP and Super VOOC 1.0/2.0. It uses a specialised 16-bit ADC and a PD protocol chip for measurements.
For firmware and software updates, and further information, please visit the manufacturer’s website at www.fnirsi.com Technical specifications: - voltage measurement range: 4–28V - current measurement range: 0–7A
- Power consumption measurement range: 0–120W - USB cable resistance measurement range: 0–9999.9 ohms - Internal resistance measurement range: 0–9999.9 ohms
- Battery capacity measurement range: 0–9999.99 Ah - Energy consumption measurement range: 0–9999.99 Wh - Voltage measurement resolution: 0.00001 V
- Voltage measurement accuracy: ±(0.2‰ + 2) - Current measurement resolution: 0.00001 A - Current measurement accuracy: ±(0.5‰ + 2)
- power consumption measurement resolution: 0.00001 W - power consumption measurement accuracy: ±(0.5‰ + 2) - display type: 2" TFT LCD - measurement duration: 99 days 23 hours 59 minutes 59 seconds
- Measurement logging: 99 days 23 hours 59 minutes 59 seconds - Dimensions: 82×42×13 mm - Weight: 45 g Advantages of the Bluetooth version:
Thanks to the built-in Bluetooth, you can place the tester in a hard-to-reach spot (e.g. behind a desk) and monitor the charging curves conveniently on your phone’s display. The app also allows you to set alarms for overvoltage or overcurrent, which protects the devices under test from damage.
